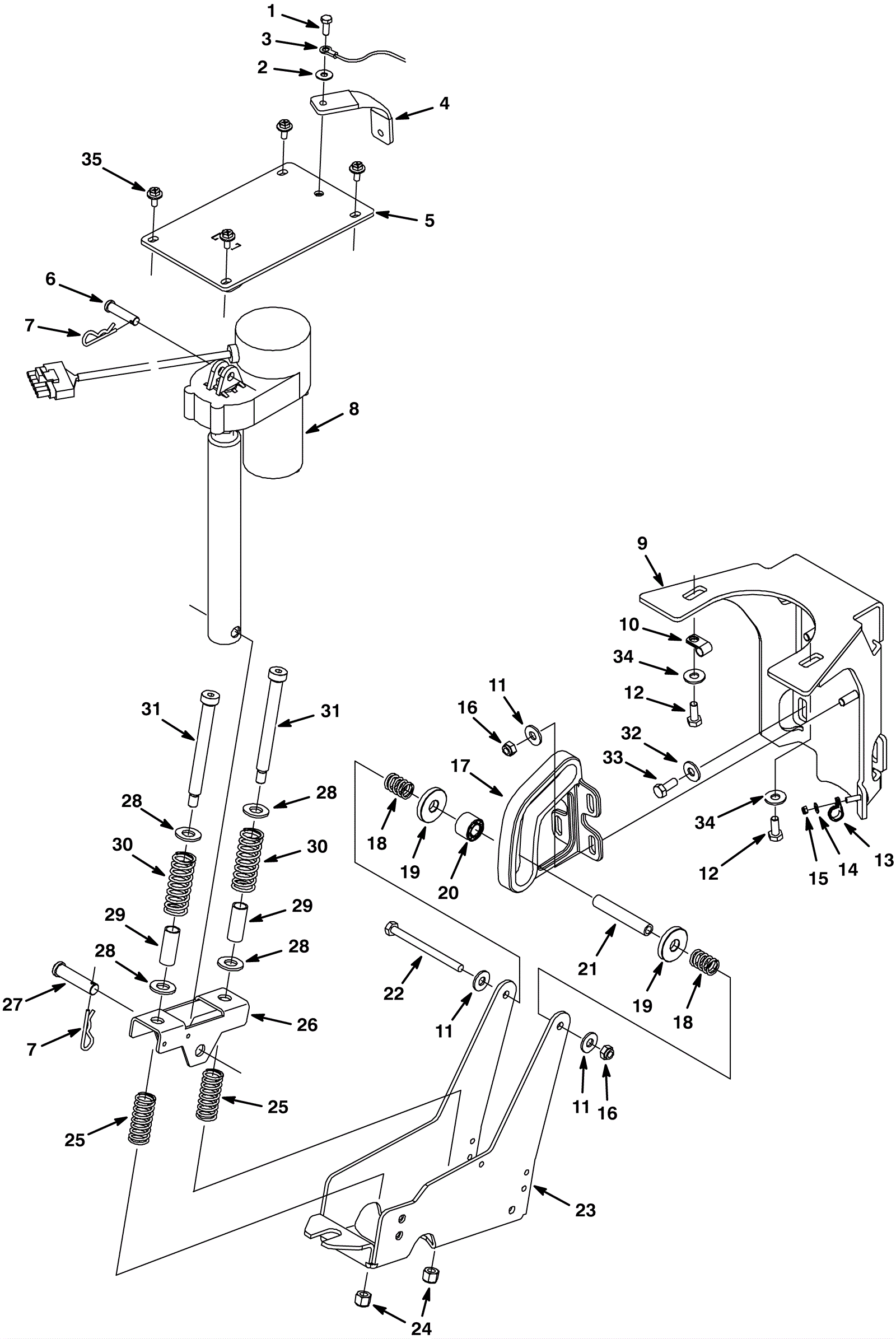

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
1 |
|
|
2 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
3 |
275-1429
|
Harness |
1 |
|
|
4 |
275-1432
|
Static strap |
1 |
|
|
5 |
275-1513
|
Actuator weldment |
1 |
|
|
6 |
175-2111
|
Clevis pin |
1 |
|
|
7 |
175-4331
|
Cotter hair pin |
2 |
|
|
8 |
275-1514
|
24V actuator |
1 |
|
|
9 |
275-5313
|
Actuator support bracket |
1 |
|
|
10 |
175-2152
|
P clamp |
1 |
|
|
11 |
999-9097
|
Washer M8 flat stainless steel |
6 |
|
|
12 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
13 |
275-0559
|
P clamp |
1 |
|
|
14 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
15 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
16 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
5 |
|
|
17 |
275-1516
|
Roller guide bracket |
1 |
|
|
18 |
175-4371
|
Compression spring |
2 |
|
|
19 |
175-4358
|
Washer 1 1/2 thrust |
2 |
|
|
20 |
275-1517
|
Roller |
1 |
|
|
21 |
275-1518
|
Roller shaft |
1 |
|
|
22 |
175-0822
|
SCREW, HEX, M8 X 1.25 X 100, SS (Tennant Industrial) |
1 |
|
|
23 |
275-1521
|
Roller bracket |
1 |
|
|
24 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
|
25 |
175-2443
|
2 1/2 inch compression spring |
2 |
|
|
26 |
275-1519
|
Spring bracket |
1 |
|
|
27 |
175-2382
|
Clevis pin |
1 |
|
|
28 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
29 |
275-1520
|
Sleeve |
2 |
|
|
30 |
175-2199
|
Compression spring |
2 |
|
|
31 |
175-2856
|
Bolt 3/8-16 x 1/2 x 4 shoulder |
2 |
|
|
32 |
999-1134
|
Washer 1 1/4 flat stainless steel |
2 |
|
|
33 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
34 |
175-3176
|
Washer 3/8 flat steel plated |
2 |
|
|
35 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
