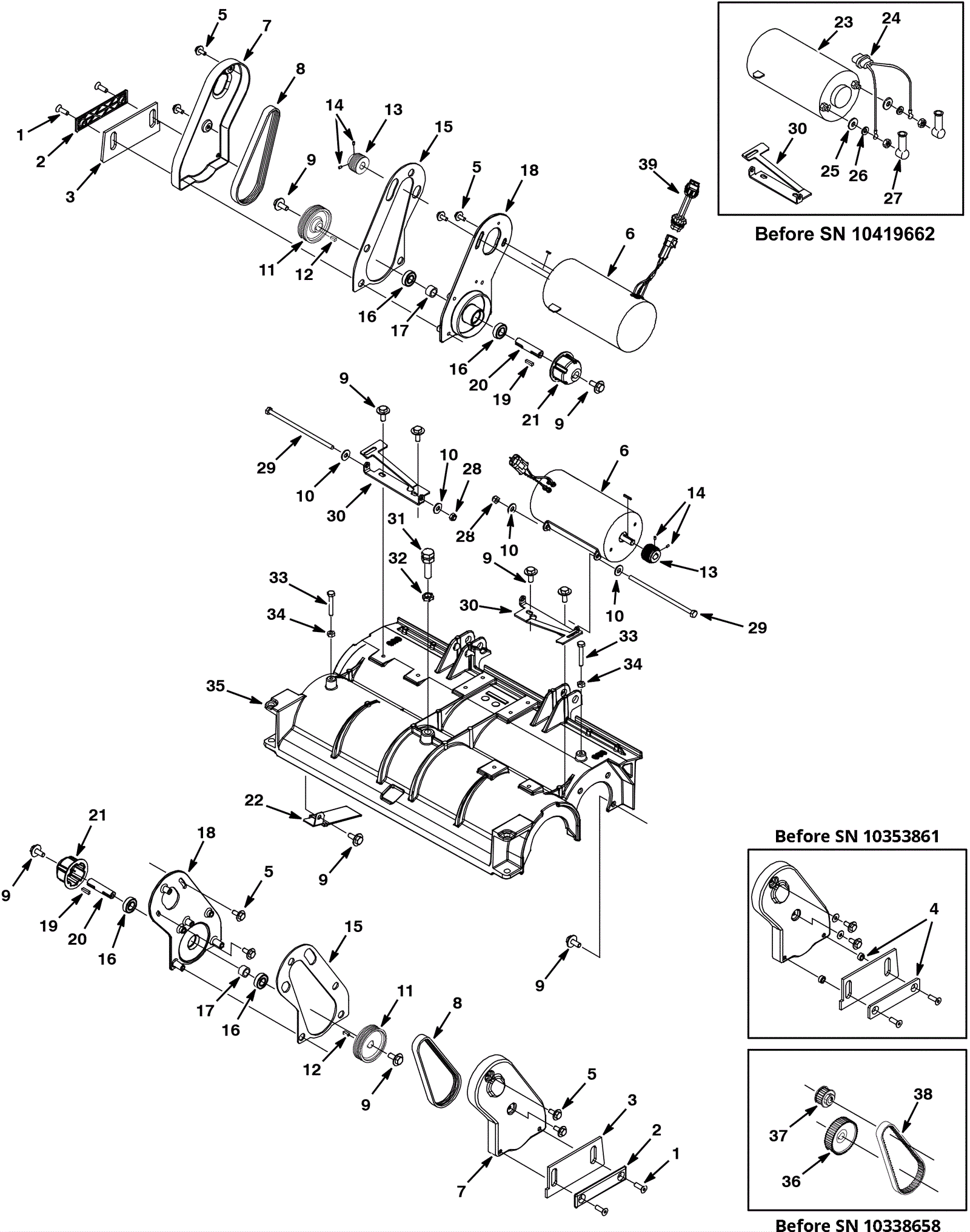

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-9240
|
Screw M8-1.25 x 25mm flat head socket nylok stainless steel |
4 |
|
|
2 |
275-5304
|
Side squeegee blade retainer |
2 |
(after SN 10383860) |
|
3 |
275-1485
|
Cylindrical scrubber side skirt |
2 |
|
|
4 |
N/A
|
Not available |
4 |
(squeegee blade retainer) (replaced by 2) (before SN 10383861) |
|
5 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
8 |
|
|
6a |
275-5305
|
24V brush motor |
2 |
(includes 6b) (after SN 10419661) |
|
6b |
275-5306
|
Carbon brush (pkg of 4) |
2 |
(after SN 10419661) |
|
7 |
275-1487
|
Belt cover |
2 |
|
|
8 |
275-4735
|
Drive belt |
2 |
(after SN 10338657) |
|
9 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
16 |
|
|
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
11 |
275-4737
|
Sheave |
2 |
(after SN 10338657) |
|
12 |
275-1489
|
KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) |
2 |
|
|
13 |
275-4738
|
Sheave |
2 |
(after SN 10338657) |
|
14 |
999-0431
|
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
4 |
|
|
15 |
275-1490
|
Belt cover gasket |
2 |
|
|
16 |
175-2471
|
Ball bearing |
4 |
|
|
17 |
175-8820
|
Spacer |
2 |
|
|
18 |
275-1491
|
Motor bracket |
2 |
|
|
19 |
175-8818
|
Square keyway |
2 |
|
|
20 |
275-1492
|
Drive shaft |
2 |
|
|
21 |
175-8819
|
Drive plug |
2 |
|
|
22 |
275-1497
|
Water deflector |
1 |
|
|
23a |
275-5305
|
24V brush motor |
2 |
(includes 23c-23d) (replaced by 23b) (before SN 10419662) |
|
23b |
275-5307
|
24V brush motor kit |
2 |
(includes 23c-23d) |
|
23c |
175-8674
|
Carbon brush (pkg of 4) |
2 |
(before SN 10419662) |
|
23d |
175-8675
|
Carbon brush spring |
8 |
(before SN 10419662) |
|
24 |
175-8677
|
Brush motor harness |
2 |
(before SN 10419662) |
|
25 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
(before SN 10419662) |
|
26 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
4 |
(before SN 10419662) |
|
27 |
175-8682
|
Terminal boot (black) |
4 |
(before SN 10419662) |
|
28 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
29 |
275-1494
|
Screw M8-1.25 x 180mm hex head stainless steel |
2 |
|
|
30 |
275-5308
|
Motor mounting bracket |
2 |
|
|
31a |
275-1472
|
Adjustable stud |
1 |
(26 inch) |
|
31b |
275-5308
|
Motor mounting bracket |
1 |
(32 inch) |
|
32 |
175-9223
|
Nut M16 x 2 hex jam |
1 |
|
|
33 |
999-1692
|
Screw M8-1.25 x 50mm hex stainless steel |
2 |
|
|
34 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
35a |
275-1496
|
Cylindrical brush housing |
1 |
(26 inch) |
|
35b |
275-1507
|
32 inch cylindrical brush housing |
1 |
(32 inch) |
|
36 |
175-8817
|
Belt kit (belts, square keyways and hardware) |
2 |
(before SN 10338658) |
|
37 |
775-0474
|
Drive sprocket |
2 |
(before SN 10338658) |
|
38 |
175-8816
|
Belt |
2 |
(before SN 10338658) |
|
39 |
275-5309
|
Wiring harness adapter |
1 |
(after SN 10419661) |
|
