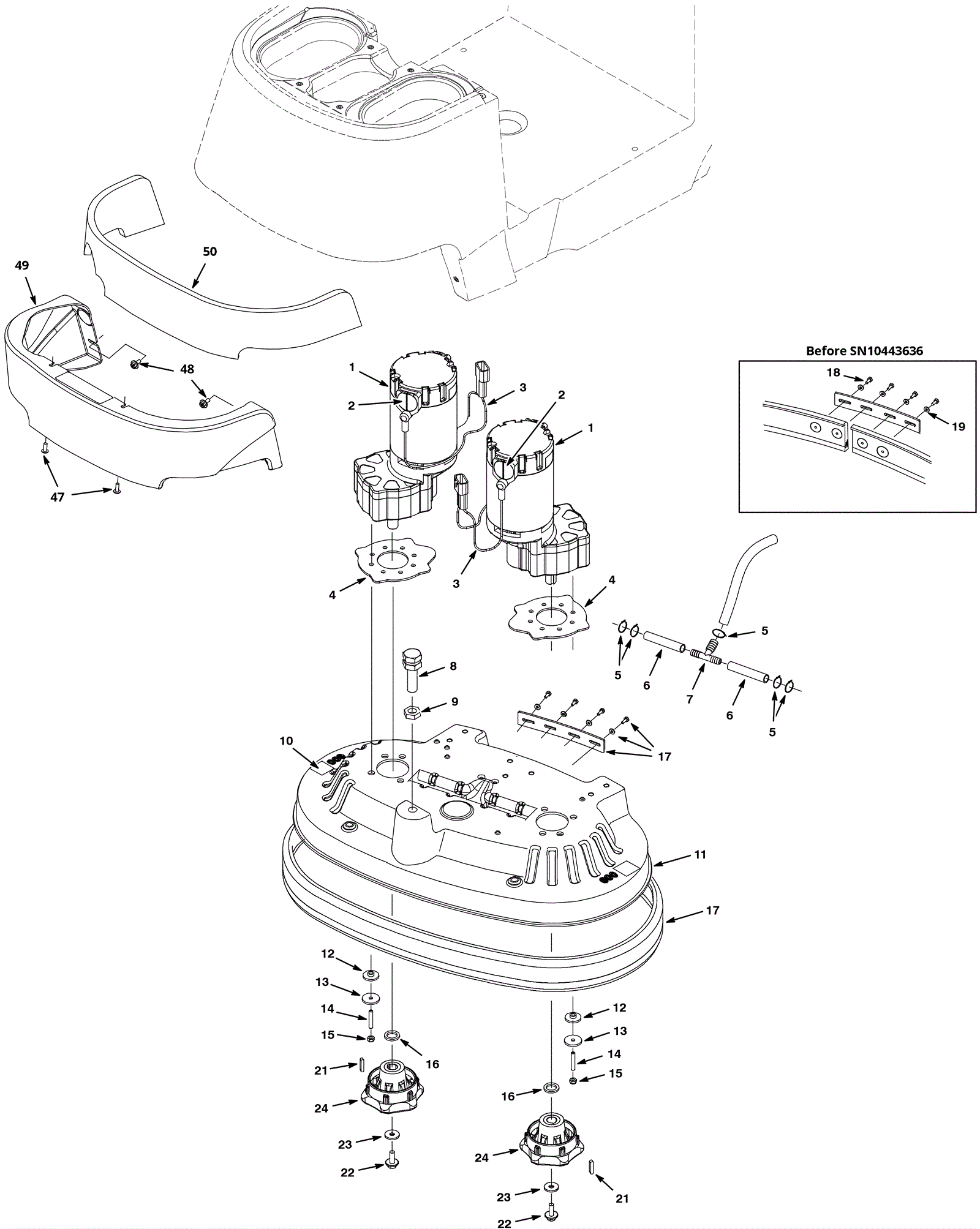

Scrub Head Assembly - Disk

#PartDescription ReqNotesAvailability
1a 275-1457 24V brush motor assembly with gearbox 2 (includes 2-3)
1b 991-1706 24V brush motor assembly with gearbox 2 (NON-OEM)
2 275-1458 Carbon brush (pkg of 2) 1
3 275-1459 Brush motor connector harness 1
4 275-1460 Rubber spacer 2
5 175-7795 Cable tie 7
6a 175-8670 Hose 3/8 x 6 1/2 inch 2 (24 inch and 28 inch)
6b 175-8662 Hose 3/8 x 7 3/4 inch 2 (32 inch)
6c 175-6648 Hose 3/8 x 18 inches 2 (option)
7 175-5591 Tee fitting 3/8 x 3/8 x 1/2 1
8 275-1472 Adjustable stud 1
9 175-9223 Nut M16 x 2 hex jam 1
10 175-1238 Moving parts decal 2
11a 275-1478 24 inch (600mm) brush head housing 1
11b 275-1481 28 inch (700mm) brush head housing 1
11c 275-1483 32 inch (800mm) brush head housing 1
12 275-1463 Isolator grommet 8
13 275-1464 WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) 8
14 275-1465 Screw M6-1 x 35 mm set nylock stainless steel 8
15 999-0497 Nut M6-1 nylon insert lock stainless steel 8
16 275-1469 Shaft spacer 2
17a 275-1466 24 inch (600mm) bumper skirt assembly 1 (includes mounting hardware and retaining strap)
17b 275-1480 28 inch (700mm) bumper skirt assembly 1 (includes mounting hardware and retaining strap)
17c 275-1482 32 inch (800mm) bumper skirt assembly 1 (includes mounting hardware and retaining strap)
17d 991-1910 32 inch (800mm) bumper skirt assembly 1 (NON-OEM)
18 999-0777 Screw M4-.7 x 10mm hex head plain finish 4 (before SN 10443636)
19 999-1158 Washer #6 flat stainless steel 4 (before SN 10443636)
21 275-1468 Square keyway 2
22 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 2
23 175-7920 Washer M8 flat stainless steel 2
24 275-1477 Brush drive hub (disk) 2 (after SN 10618020)
