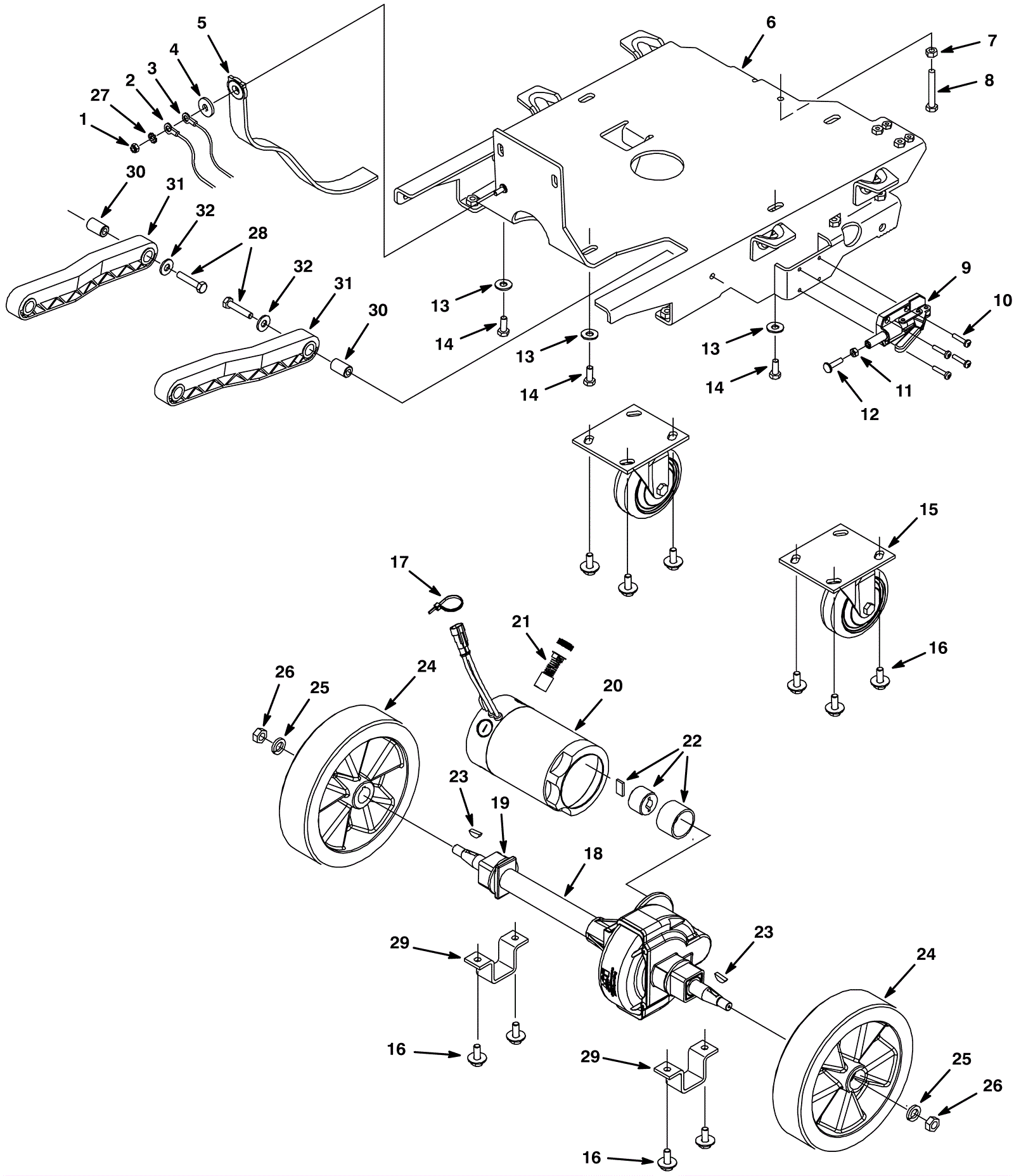

Drive Assembly

#PartDescription ReqNotesAvailability
1 999-0497 Nut M6-1 nylon insert lock stainless steel 1
2 275-1439 Wire 12 gauge x 250mm 1
3 275-1429 Harness 1
4 175-1097 Washer flat stainless steel 1
5 275-1440 Static strap 1
6 275-1441 Transaxle frame weldment 1
7 999-1424 Nut M8-1.25 hex stainless steel 1
8 999-0788 Screw M8-1.25 x 55mm hex head stainless steel 1
9 275-1442 Parking brake clamp 1
10 175-3289 Bolt M5-.8 x 16mm hex head 4
11 999-1308 Nut M6-1 hex stainless steel 1
12 275-1444 Screw M6 x 25mm stainless steel 1
13 275-7133 Washer .34B x 1.25D x .11 flat stainless steel 5
14 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 5
15a 175-2991 4 inch caster wheel 2 (OEM)
15b 991-2016 4 inch caster wheel 2 (NON-OEM)
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 12
17 175-7795 Cable tie 4
18a 275-1446 24V transaxle 1 (includes 19-23) (OEM)
18b 991-3079 24V transaxle assembly 1 (NON-OEM)
19 175-3660 Transaxle sleeve 2
20 275-1447 24V transaxle motor 1 (includes 21)
21 175-7898 Carbon brush (pkg of 4) 1
22 175-7899 Transaxle coupling kit 1
23 275-1448 Square keyway 2
24a 275-5301 Solid wheel kit 1 (includes 24b)
24b 275-1449 Wheel with taper 2
24c 991-7148 Solid wheel kit 1 (NON-OEM)
24d 991-7142 Wheel with taper 2 (NON-OEM)
25 999-0126 Washer 1/2 split lock 2
26 999-0503 Nut M12-1.75 hex stainless steel 2
27 999-1024 Washer 1/4 external tooth lock stainless steel 1
28 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
29 175-4349 Transaxle bracket 2
30 175-4343 1 inch tube 2
31 175-2102 Scrub head lifting arm 2
32 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
N/S 275-1451 Chassis wire harness 1
