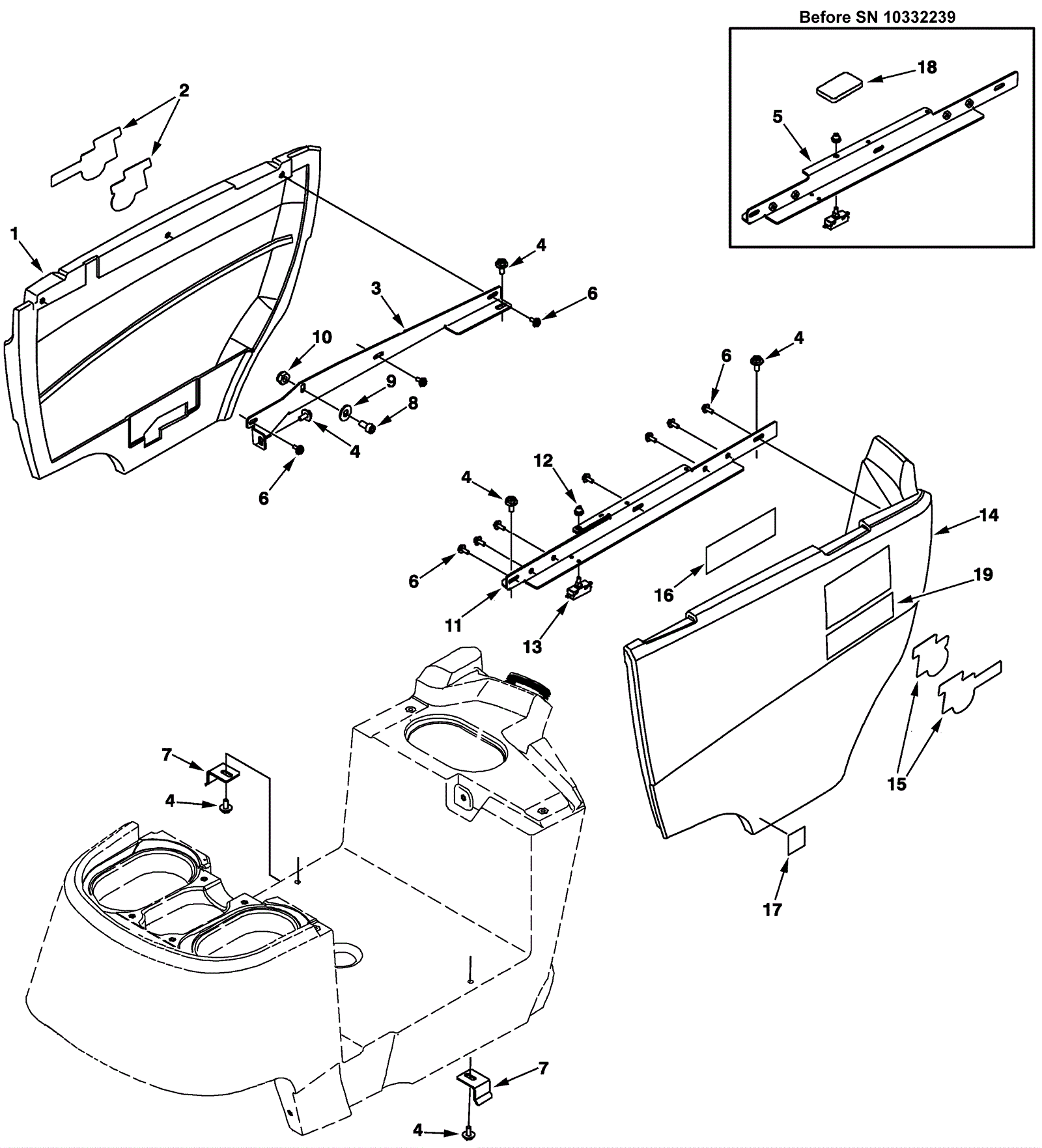

Side Panel Assembly

#PartDescription ReqNotesAvailability
1a 275-1391 Right side panel (teal) 1
1b 275-1392 Right side panel (gray) (OBSOLETE) 1
2a 275-1393 Side decal (T5) (teal) 1
2b 275-1395 Side decal (T5 FaST) (teal) (OBSOLETE) 1
2c 275-1394 Side decal (T5) (gray) (OBSOLETE) 1
2d 275-1396 Side decal (T5 FaST) (gray) (OBSOLETE) 1
3 275-1397 Right side rail 1
4 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 6
5 275-1398 Left side rail 1 (before SN 10332239)
6 999-1383 Screw M6-1 x 16mm hex head stainless steel 14
7 275-1405 Bracket 2
8 175-8743 Screw M10 x 1 1/2 x 20 socket head cap 1
9 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
10 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
11 275-5091 Left side rail 1 (after SN 10332238)
12 175-2878 Nut 3/8-32 hex switch boot 1
13a 175-0084 Actuator push switch 1 (OEM)
13b 991-8558 Switch 1 (NON-OEM)
14a 275-1400 Left side panel kit without charger (teal) 1 (includes 15-16)
14b 275-1402 Left side panel kit with charger (teal) 1 (includes 15-16)
14c 275-1401 Left side hinge panel kit without charger (gray) (OBSOLETE) 1 (includes 15-16)
14d 275-1403 Left side hinge panel kit with charger (gray) (OBSOLETE) 1 (includes 15-16)
15 175-8643 Parking brake decal 1
16 275-1404 Charger setting instruction decal 1
17a 275-1393 Side decal (T5) (teal) 1
17b 275-1395 Side decal (T5 FaST) (teal) (OBSOLETE) 1
17c 275-1394 Side decal (T5) (gray) (OBSOLETE) 1
17d 275-1396 Side decal (T5 FaST) (gray) (OBSOLETE) 1
18 275-9896 Logo decal (Tennant Industrial) 2
19 175-2869 Gasket 1 (before SN 10332239)
