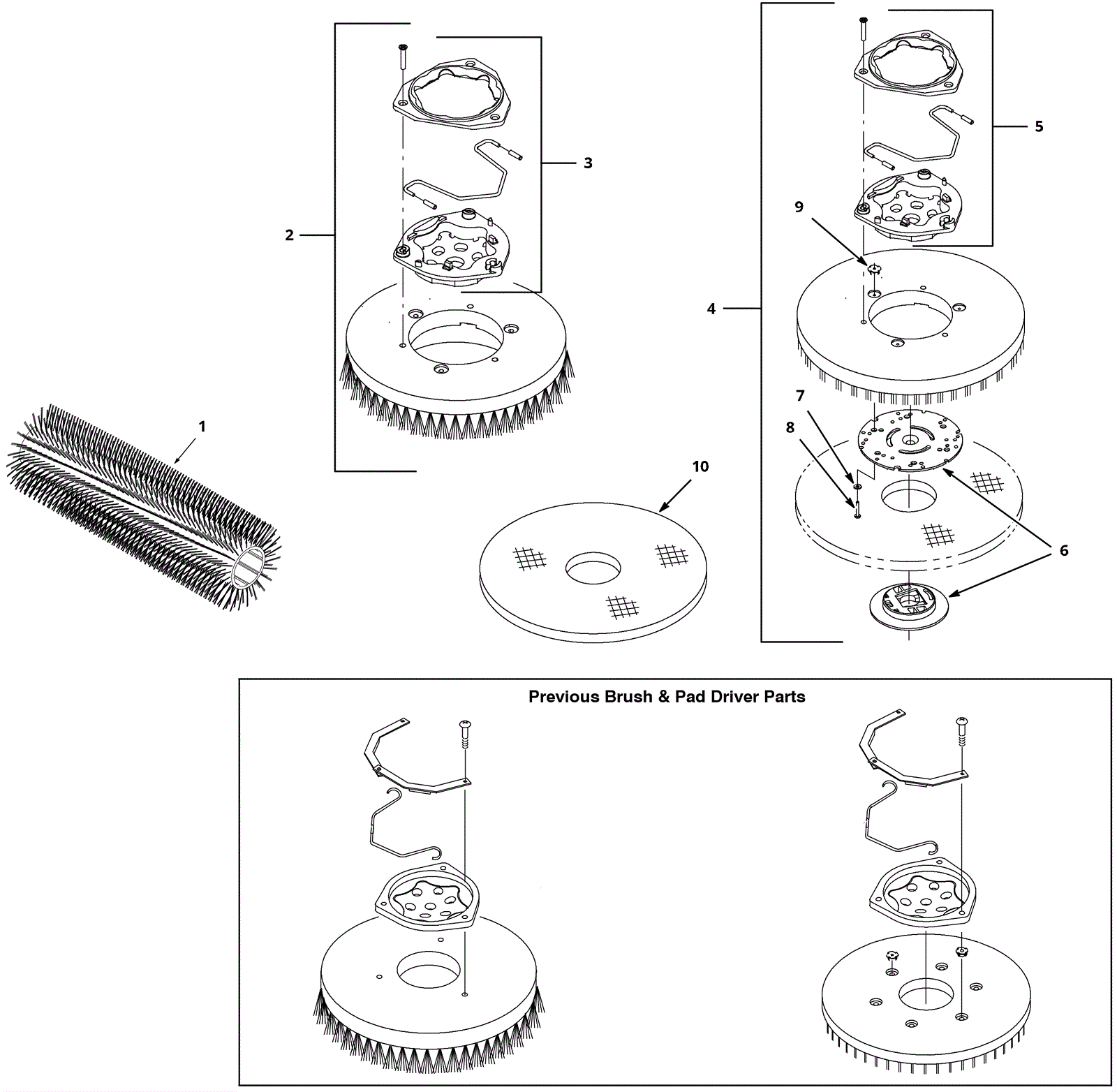

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-1341
|
26 inch nylon scrubbing brush - CYLINDRICAL |
2 |
|
|
1b |
275-1342
|
26 inch polypropolene scrubbing brush - CYLINDRICAL |
2 |
|
|
1c |
275-1343
|
26 inch hard polypropolene scrubbing brush - CYLINDRICAL |
2 |
|
|
1d |
275-1344
|
26 inch abrasive scrubbing brush - CYLINDRICAL |
2 |
|
|
1e |
375-1283
|
26 inch abrasive scrub brush - CYLINDRICAL |
2 |
|
|
1f |
175-2403
|
32 inch soft nylon scrubbing brush - CYLINDRICAL |
2 |
|
|
1g |
175-2069
|
32 inch polypropelene scrubbing brush - CYLINDRICAL |
2 |
|
|
1h |
996-1045
|
32 inch polypropelene grout scrubbing brush - CYLINDRICAL |
2 |
|
|
1i |
175-2404
|
32 inch abrasive scrubbing brush - CYLINDRICAL |
2 |
|
|
1j |
375-1284
|
32 inch abrasive scrub brush - CYLINDRICAL |
2 |
|
|
2a |
275-1345
|
12 inch nylon scrubbing brush |
2 |
(includes 3) |
|
2b |
275-1346
|
12 inch polypropelene scrubbing brush |
2 |
(includes 3) |
|
2c |
275-1347
|
12 inch super abrasive stripping brush |
2 |
(includes 3) |
|
2d |
275-1348
|
14 inch nylon scrubbing brush |
2 |
(includes 3) |
|
2e |
275-1349
|
14 inch polypropelene scrubbing brush |
2 |
(includes 3) |
|
2f |
275-1350
|
14 inch super abrasive stripping brush |
2 |
(includes 3) |
|
2g |
275-1351
|
16 inch nylon scrubbing brush |
2 |
(includes 3) |
|
2h |
275-1352
|
16 inch polypropelene scrubbing brush |
2 |
(includes 3) |
|
2i |
275-1353
|
16 inch super abrasive stripping brush |
2 |
(includes 3) |
|
2j |
991-7128
|
12 inch polypropylene scrubbing brush assembly |
2 |
(NON-OEM) |
|
3 |
375-1282
|
Clutch plate kit |
1 |
|
|
4a |
175-8611
|
13 inch pad driver assembly |
2 |
(includes 5-9) |
|
4b |
275-1357
|
14 inch pad driver assembly |
2 |
(includes 5-9) |
|
4c |
275-4783
|
16 inch pad driver assembly |
2 |
(includes 5-9) |
|
5 |
375-1282
|
Clutch plate kit |
2 |
|
|
6a |
275-6264
|
Pad centering device |
1 |
|
|
6b |
991-2206
|
Center-Lok 3 pad holder |
1 |
(NON-OEM) |
|
7 |
999-0266
|
Washer #8 SAE flat stainless steel |
3 |
|
|
8 |
275-4705
|
Screw M4-.7 x25mm pan head phillips |
3 |
|
|
9 |
175-5851
|
Nut M4 45/64 |
3 |
|
|
10a |
255-1220
|
12 inch premium white polishing pad (pkg of 20) |
2 |
|
|
10b |
175-8614
|
12 inch buffing pad (red) |
2 |
|
|
10c |
375-7836
|
12 inch scrubbing pad (blue) |
2 |
|
|
10d |
175-8612
|
Stripper pad 12 inch brown |
2 |
|
|
10e |
475-3367
|
12 inch surface prep pad (maroon)(each) |
2 |
|
|
10f |
175-4904
|
Polish pad 14 inch white |
2 |
|
|
10g |
175-4905
|
14 inch buffing pad (red) |
2 |
|
|
10h |
175-4906
|
14 inch scrubbing pad (blue) (pkg of 4) |
2 |
|
|
10i |
255-1492
|
14 inch premium brown stripping pad (pkg of 5) |
2 |
|
|
10j |
375-1634
|
14 inch stripping pad (maroon) |
2 |
|
|
10k |
255-1620
|
16 inch premium white polishing pad (pkg of 5) |
2 |
|
|
10l |
175-0519
|
16 inch buffing pad (red)(each) |
2 |
|
|
10m |
175-0518
|
16 inch scrubbing pad (blue)(each) |
2 |
|
|
10n |
255-1692
|
16 inch premium brown stripping pad (pkg of 5) |
2 |
|
|
10o |
255-1647
|
16 inch Redwood maroon floor prep pad (pkg of 10) |
2 |
|
|
