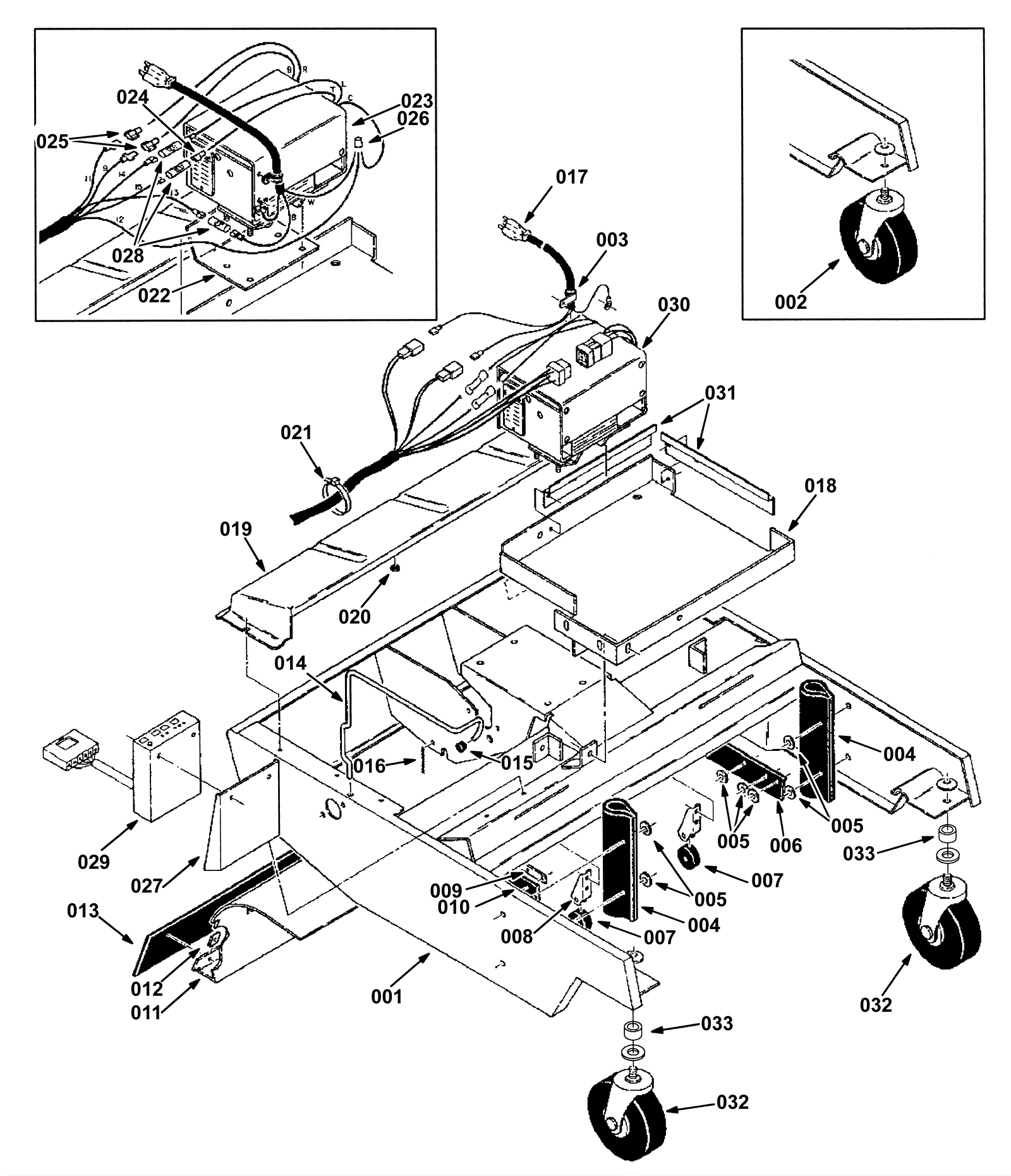

SCOUT 37B Main Frame and Charger Assembly

#PartDescriptionPriceReqNotesAvailability
001a N/A Not available Call for price 1 (frame assembly) usually ships 3-26 days
001b N/A Not available Call for price 1 Main frame weldment usually ships 3-26 days
002 175-8887 Caster $61.71 2 usually ships 1-5 days
003 175-5421 P clamp $4.88 1 usually ships 10-16 days
004 175-8888 Skirt $13.75 2 usually ships 10-16 days
005 999-0464 Washer 3/16 flat plain finish $0.99 10 ships same day
006a 175-8890 Skirt $19.03 1 usually ships 10-16 days
006b 175-8891 Bracket/wheel assembly $108.46 2 (includes 007 and 008) usually ships 1-5 days
007 175-8892 Wheel $5.50 1 usually ships 10-16 days
008 175-8893 Caster mounting bracket $34.76 1 usually ships 1-5 days
009 175-8894 Strip $11.55 1 usually ships 1-5 days
010 175-8895 Skirt $19.36 1 usually ships 10-16 days
011 175-8896 Brush panel $88.00 1 usually ships 1-5 days
012 999-0609 Nut 1/4-20 hex stainless steel $0.99 3 ships same day
013 175-0188 Floor seal skirt $21.67 1 usually ships 10-16 days
014 175-8898 Handle $119.35 1 usually ships 1-5 days
015 175-8899 Plug cap $2.24 1 usually ships 1-5 days
016 175-8900 Sash chain no. 35 $15.40 1 usually ships 1-5 days
017 175-8901 Electric cord 16-3 $30.80 1 usually ships 1-5 days
018 175-8902 Tray $202.62 1 usually ships 1-5 days
019 N/A Not available Call for price 1 Rear frame cover usually ships 3-26 days
020 175-8904 Rubber bumper $4.22 1 usually ships 1-5 days
021 175-2162 Nylon wire tie $3.04 4 usually ships 10-16 days
022 N/A Not available Call for price 1 (mounting bracket) usually ships 3-26 days
023a 175-8905 Charger replacement kit (OBSOLETE) $707.96 1 usually ships 1-5 days
023b 175-8906 Charger replacement kit $882.20 1 (includes 024) usually ships 1-5 days
024 175-8907 Terminal $3.30 1 usually ships 1-5 days
025 175-8908 Terminal $3.30 2 usually ships 1-5 days
026 175-8909 Wire $15.84 1 usually ships 1-5 days
027 175-8910 Control panel mounting bracket $31.74 1 usually ships 10-16 days
028 175-8911 Terminal $4.88 3 usually ships 1-5 days
029 175-4011 Control box (OBSOLETE) $347.60 1 usually ships 1-5 days
030a 375-0186 24V battery charger $661.05 1 usually ships 10-16 days
030b 175-8912 Charger 15 amp 50 hz (OBSOLETE) $341.22 1 usually ships 1-5 days
031 175-8913 Battery spacer bracket $54.67 2 usually ships 1-5 days
032 175-8914 Swivel caster wheel (OBSOLETE) $77.77 2 usually ships 10-16 days
033 175-8915 TUBE, 0.56ID 0.88OD 00.5L, STL, PL (Tennant Industrial) $29.17 2 usually ships 10-16 days
