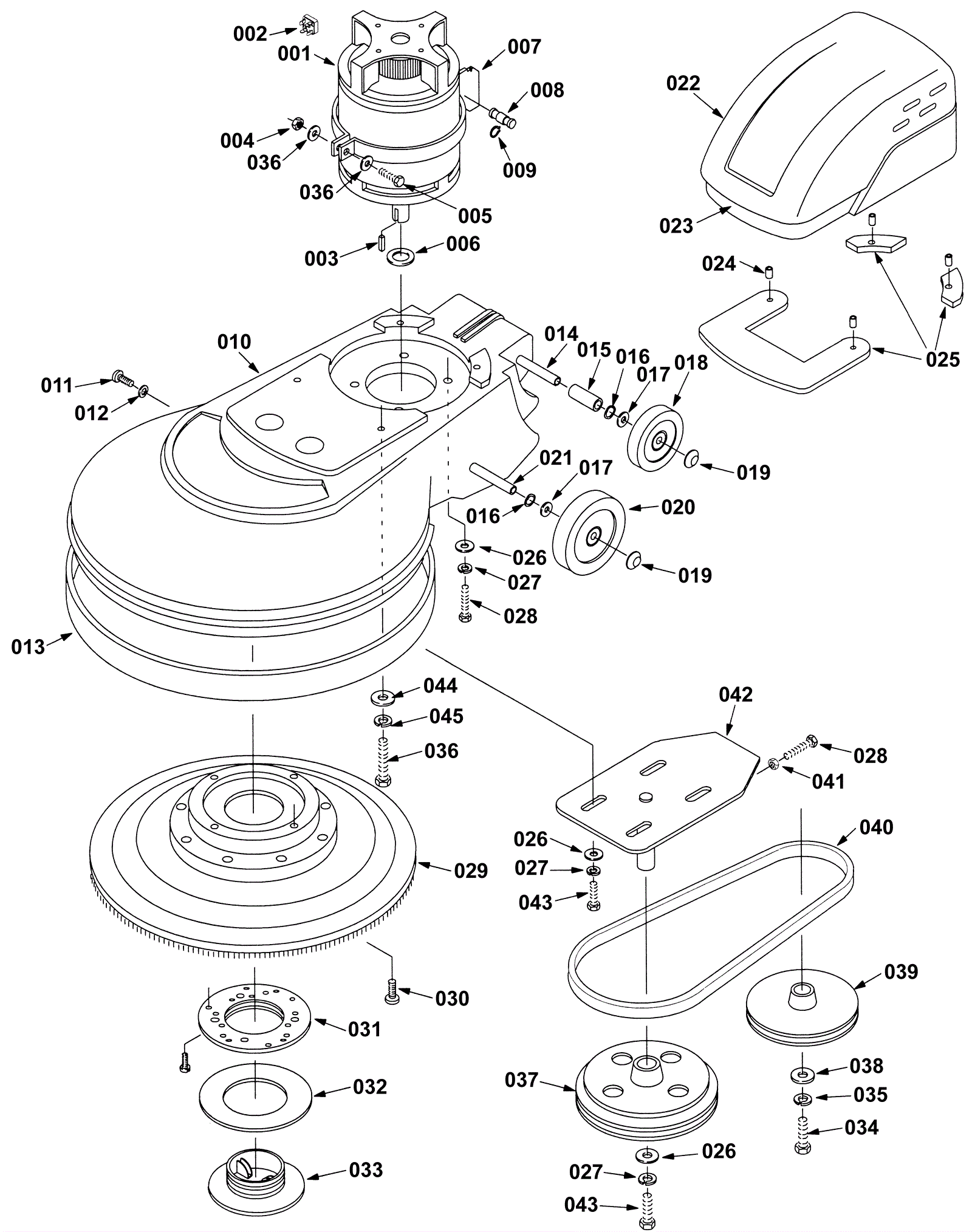

Base Assembly

#PartDescription ReqNotesAvailability
001a 175-1462 120V brush motor 1
001b 175-1463 Carbon brush (pkg of 2) (OBSOLETE) 2 Ohio motor
001c 175-3492 Carbon brush 4 Imperial motor
002 175-3493 600V 60amp rectifier 1
003 175-1087 Square keyway 1
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
005 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 1
006 175-1468 Spacer 1
007 175-1464 Plate 1
008 175-1465 Spring pin 1
009 175-1466 Circlip 1
010 175-1472 High speed base (green) 1
011 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 2
012 999-1119 Washer 1/4 x 1 fender zinc plated 2
013 175-7762 Bumper 1
014 175-7761 Axle 1
015 675-9888 Sleeved bushing 2
016 175-0293 Washer 1/2 compression zinc plated 4
017 999-0114 Washer 1/2 SAE flat 4
018a 175-0292 4 inch rear wheel (gray) 2 (OEM)
018b 991-1913 4 inch wheel (gray) 2 (NON-OEM)
019 175-6097 Hub cap 4
020 175-1480 Wheel 2
021 175-7760 Axle 1
022 175-1461 Motor cover (green) 1
023 N/A Not available 1 1 x 2 inch black recess label
024 175-5070 Sleeved bearing 4
025 N/A Not available 1 Gasket set
026 999-0032 Washer 3/8 USS flat plain finish 9
027 999-0034 Washer 3/8 split lock plain finish 9
028 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 5
029 175-1474 20 inch (500mm) pad driver assembly 1 Includes 030, 031, 032, 033
030 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish 4
031 996-0372 Big mouth pad holder (left hand thread) 1 (Includes item 033)
032 175-5850 Pad driver retainer 1
033a 175-1434 Removable centerlock (OBSOLETE) 1 (OEM)
033b 993-0477 Left hand center pad holder 1 (NON-OEM)
034 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 1
035 999-0553 Washer 5/16 medium split lock stainless steel 1
036 999-0024 Washer 5/16 flat stainless steel 4
037 175-1473 Drive pulley 1
038 999-0617 Washer 3/8 x 1 flat stainless steel 1
039a 175-1469 Pulley 1 1200
039b 175-1470 Pulley 1 1600
039c 175-1471 Pulley (OBSOLETE) 1 2000
040a 175-1475 Belt (OBSOLETE) 1 1200
040b 175-1476 Belt 1 1600
040c 175-1477 Belt (OBSOLETE) 1 2000
041 999-0628 Nut 3/8-16 hex jam stainless steel 1
042 175-1478 Base bracket 1
043 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 5
044 999-0016 Washer 1/4 flat plain finish 4
045 999-0632 Washer 1/4 split lock stainless steel 4
