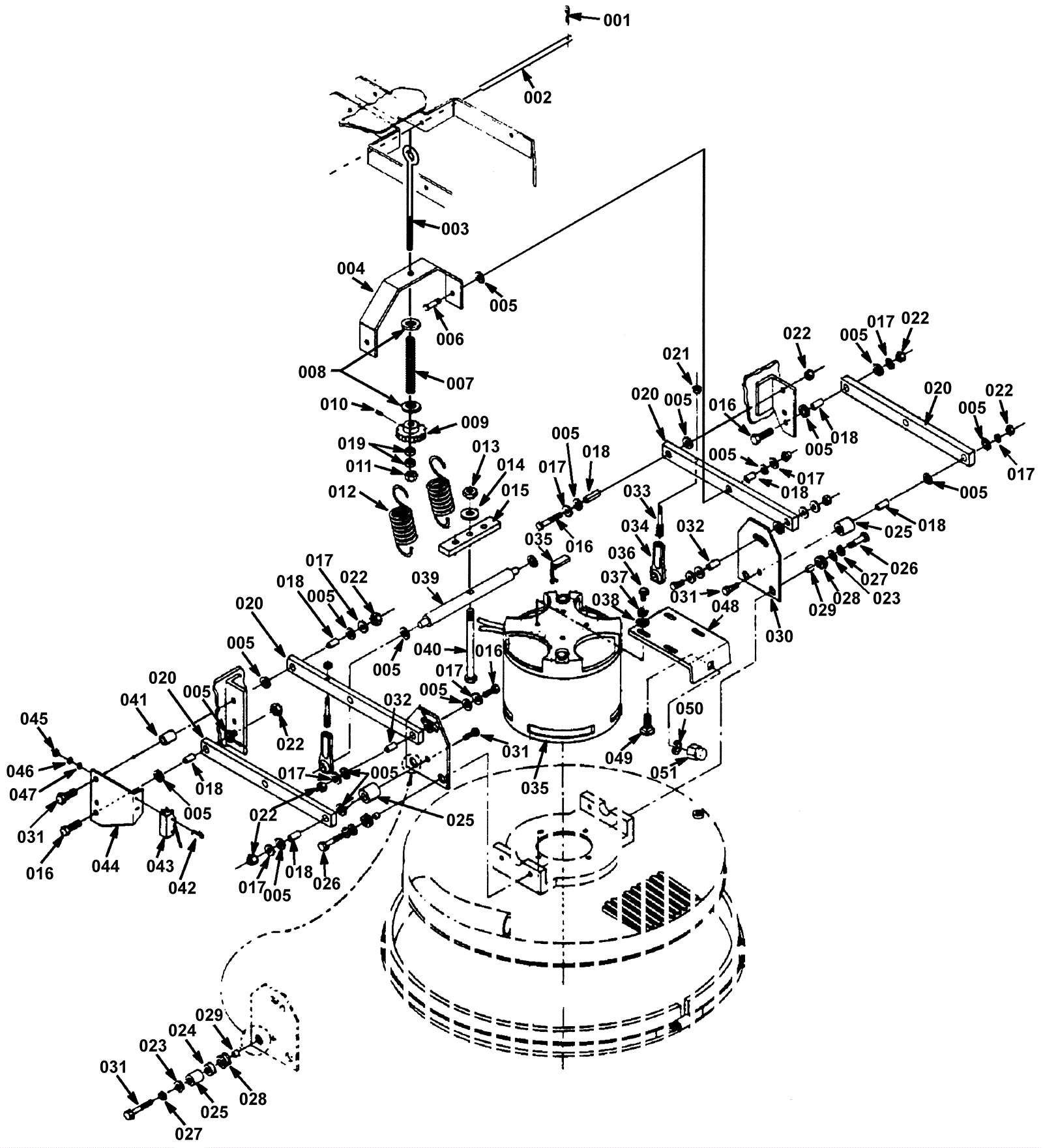

2500 Pad Driver Lifting Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-5080 Cotter pin $4.09 2 ships same day
002 175-1443 Pin (OBSOLETE) $7.26 1 usually ships 1-5 days
003 999-0808 Bolt 3/8-16 x 10 turned eye zinc plated $6.60 1 ships same day
004 175-1444 Spring support bracket $41.14 1 usually ships 1-5 days
005 999-1156 Washer M12-.7 nylon $4.88 22 ships same day
006 175-0937 Foot lever $114.18 2 usually ships 5-16 days
007 175-1445 Pressure adjustment spring $31.24 1 usually ships 1-5 days
008 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
009 175-1446 Adjusting knob $19.80 1 usually ships 1-5 days
010 175-1447 Screw 10-24 x 3/8 nylon set (OBSOLETE) $1.32 1 usually ships 1-5 days
011 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
012 175-1448 Extension spring $28.82 2 usually ships 1-5 days
013 999-0182 Nut 1/2-20 hex plain finish $0.99 1 ships same day
014 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
015 175-1449 Spring adjustment plate (OBSOLETE) $10.34 1 usually ships 5-16 days
016 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 5 ships same day
017 999-0024 Washer 5/16 flat stainless steel $1.34 11 ships same day
018 175-5070 Sleeved bearing $4.88 8 ships same day
019 175-1450 Washer 25/64 x 17/64 (OBSOLETE) $1.72 2 usually ships 1-5 days
020 175-1451 Suspension link (OBSOLETE) $54.67 4 usually ships 1-5 days
021 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
022 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 10 ships same day
023 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
024 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
025 175-1452 Spacer $6.27 4 usually ships 1-5 days
026 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
027 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
028 175-1453 Grommet (OBSOLETE) $2.11 4 usually ships 1-5 days
029 175-1454 Spacer (OBSOLETE) $1.72 4 usually ships 5-16 days
030 175-1455 Bracket $13.64 2 usually ships 1-5 days
031 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 5 ships same day
032 175-1456 Sleeved bearing $3.04 2 usually ships 1-5 days
033 175-1457 Rod end mount $6.38 2 usually ships 1-5 days
034 175-5088 Rod end $8.80 2 usually ships 1-5 days
035a 175-1423 36V 3HP brush drive motor $986.70 1 (includes 035b) usually ships 1-5 days
035b 175-1113 Carbon brush (sold individually) $50.38 4 ships same day
036 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
037 999-0364 Washer #6 internal star lock zinc plated $0.99 4 ships same day
038 175-1424 Washer flat $4.88 4 usually ships 5-16 days
039 175-1458 Cross arm $67.32 1 usually ships 1-5 days
040 999-1564 Screw 1/2-20 x 6 hex head zinc plated $13.64 1 ships same day
041 175-1459 Spacer (OBSOLETE) $4.73 1 usually ships 1-5 days
042 999-1167 Bolt 6-32 x 1 hex head stainless steel $2.27 2 usually ships 1-5 days
043 175-6532 Snap switch $14.74 1 ships same day
044 175-1460 Switch bracket $18.37 1 usually ships 1-5 days
045 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
046 999-0051 Washer #6 medium split lock $0.99 2 ships same day
047 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
048 175-1425 Bracket $18.92 1 usually ships 1-5 days
049 999-0234 Nut 3/8-16 acorn nickel plated $1.18 1 ships same day
050 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
051 999-0234 Nut 3/8-16 acorn nickel plated $1.18 1 ships same day
