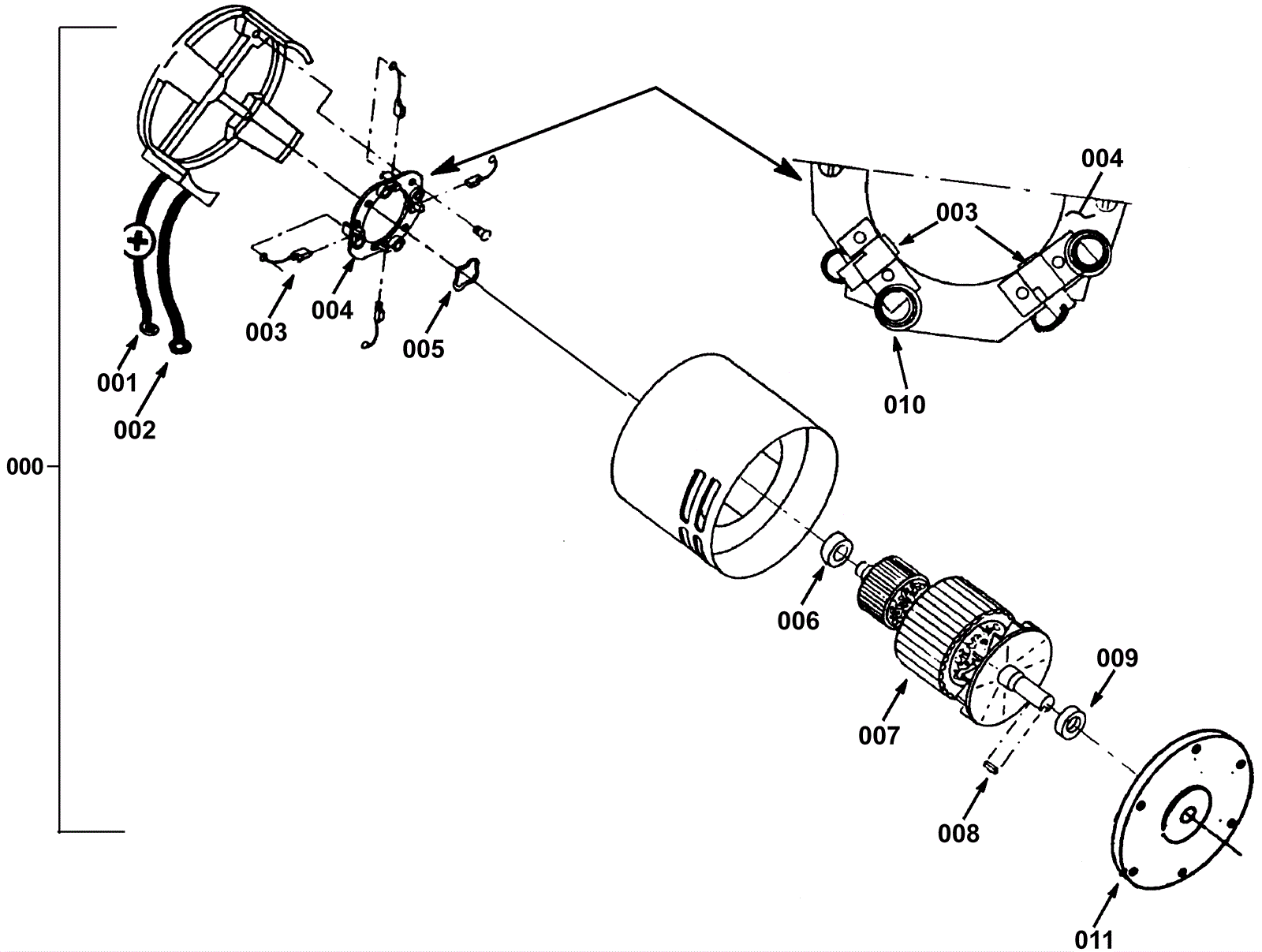

2500 Pad Driver Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000 175-1423 36V 3HP brush drive motor $986.70 1 (includes 001-011) usually ships 1-5 days
001 175-1438 Lead assembly $19.25 1 (positive) usually ships 1-5 days
002 175-1438 Lead assembly $19.25 1 (negative) usually ships 1-5 days
003 175-1113 Carbon brush (sold individually) $50.38 4 ships same day
004 175-1439 Brush board assembly (OBSOLETE) $217.69 1 usually ships 1-5 days
005 175-0370 Helical washer $4.88 1 usually ships 1-5 days
006 175-0957 Brush bearing $13.31 1 usually ships 5-16 days
007 175-1440 Armature assembly $802.67 1 usually ships 1-5 days
008 175-1441 Shaft key (OBSOLETE) $2.24 1 usually ships 1-5 days
009 175-2781 Wheel bearing $34.65 1 usually ships 3-28 days
010 175-0375 Brush spring (pkg of 4) $11.99 1 usually ships 1-5 days
011 175-1442 Bracket (OBSOLETE) $103.18 1 usually ships 1-5 days
