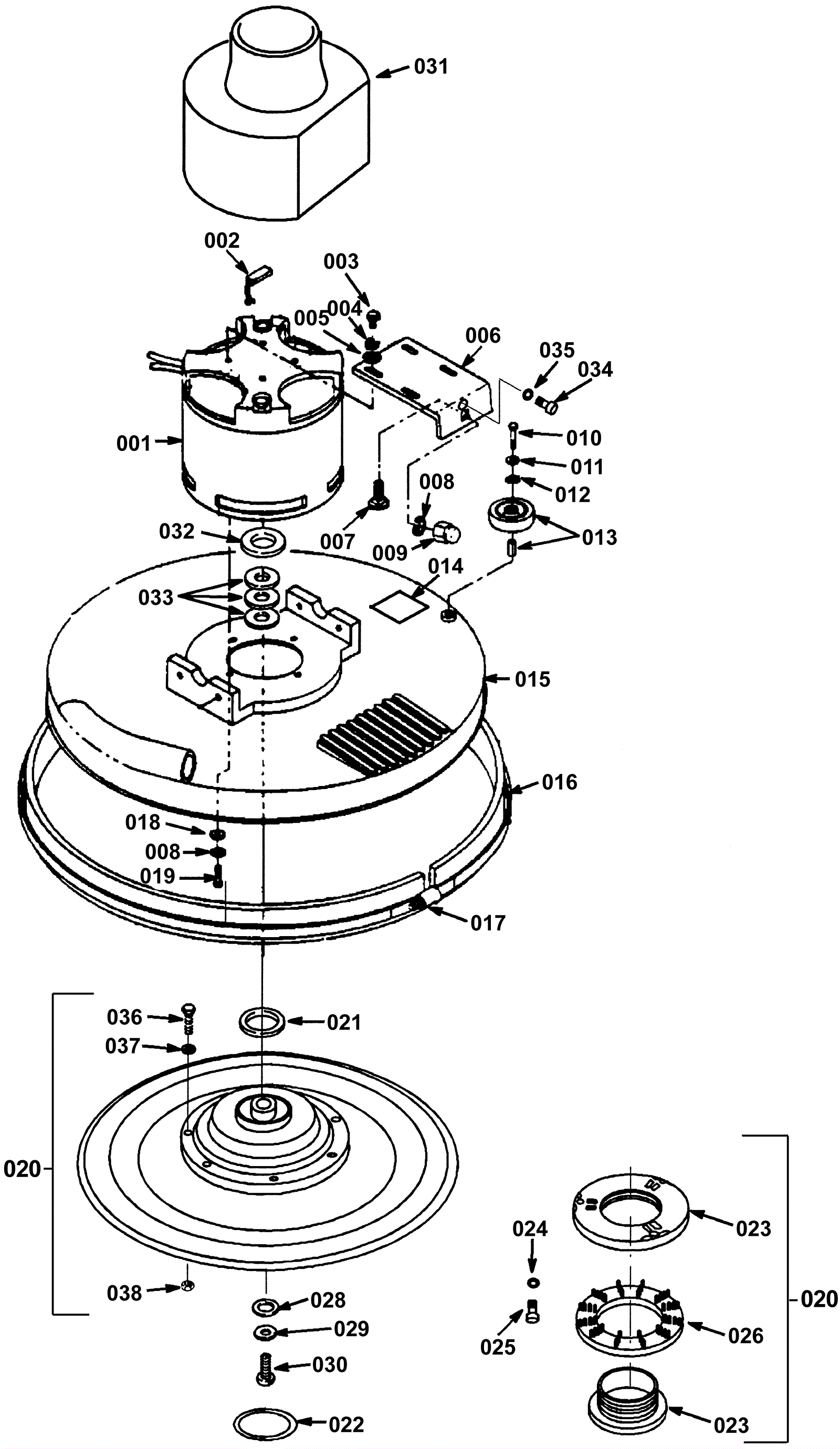

2500 Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-1423 36V 3HP brush drive motor $986.70 1 usually ships 1-5 days
002 175-1113 Carbon brush (sold individually) $50.38 4 ships same day
003 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
004 999-0364 Washer #6 internal star lock zinc plated $0.99 4 ships same day
005 175-1424 Washer flat $4.88 4 usually ships 5-16 days
006 175-1425 Bracket $18.92 1 usually ships 1-5 days
007 175-1426 Screw 3/8-16 x 5/8 carriage (OBSOLETE) $1.98 1 usually ships 1-5 days
008 999-0034 Washer 3/8 split lock plain finish $1.82 5 ships same day
009 999-0234 Nut 3/8-16 acorn nickel plated $1.18 1 ships same day
010 999-0742 Screw M8-1.25 x 40mm pan head phillips zinc $2.42 1 ships same day
011 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
012 999-0806 Washer M12 wave zinc plated $1.39 1 ships same day
013 175-0117 Guide wheel with bushing $9.90 1 ships same day
014 175-1238 Moving parts decal $5.50 1 usually ships 5-16 days
015 175-1427 Scrub head (OBSOLETE) $250.58 1 usually ships 1-5 days
016 175-9021 Dust control skirt assembly (OBSOLETE) $96.25 1 (includes 017a and 017b) usually ships 5-16 days
017a 175-1428 Adjustment band fastener $25.52 1 ships same day
017b 175-1429 Skirt strap assembly $37.18 1 usually ships 5-16 days
018 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
019 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
020 175-1431 Flexible pad driver assembly (OBSOLETE) $433.40 1 (includes 021-026 and 036-038) usually ships 1-5 days
021 N/A Not available Call for price 1 (Decal) usually ships 3-26 days
022 175-1432 O-ring (OBSOLETE) $3.83 1 usually ships 1-5 days
023a 991-2202 Big mouth pad holder set (blue) $17.75 1 ships same day
023b 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 (NON-OEM) ships same day
023c 991-2205 Deep lock ring and pad grip ring $21.53 1 (NON-OEM) usually ships 8-23 days
023d 991-2214 Center-Lok II pad holder - left hand thread (red) $21.69 1 (NON-OEM) ships same day
024 175-0450 Mounting bracket (OBSOLETE) $41.69 3 usually ships 1-5 days
025 999-0411 Screw 8-32 x 3/8 pan head slotted zinc plated $0.99 3 ships same day
026 175-5850 Pad driver retainer $12.87 1 ships same day
028 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
029 999-0105 Washer 5/16 external star lock zinc plated $0.99 1 ships same day
030 999-1194 Screw 5/16-24 x 1 1/4 hex head stainless steel $5.19 1 ships same day
031 175-1435 Motor cover (OBSOLETE) $100.43 1 usually ships 1-5 days
032 175-1436 Washer .786 x 1.5 x .3 $5.50 1 usually ships 1-5 days
033 175-1437 Spacer $9.68 3 ships same day
034 999-0807 Screw M6-1 x 10mm flat head phillips $2.49 1 ships same day
035 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
036 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 8 ships same day
037 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
038 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
N/S 175-1430 Skid strip $178.53 1 ships same day
