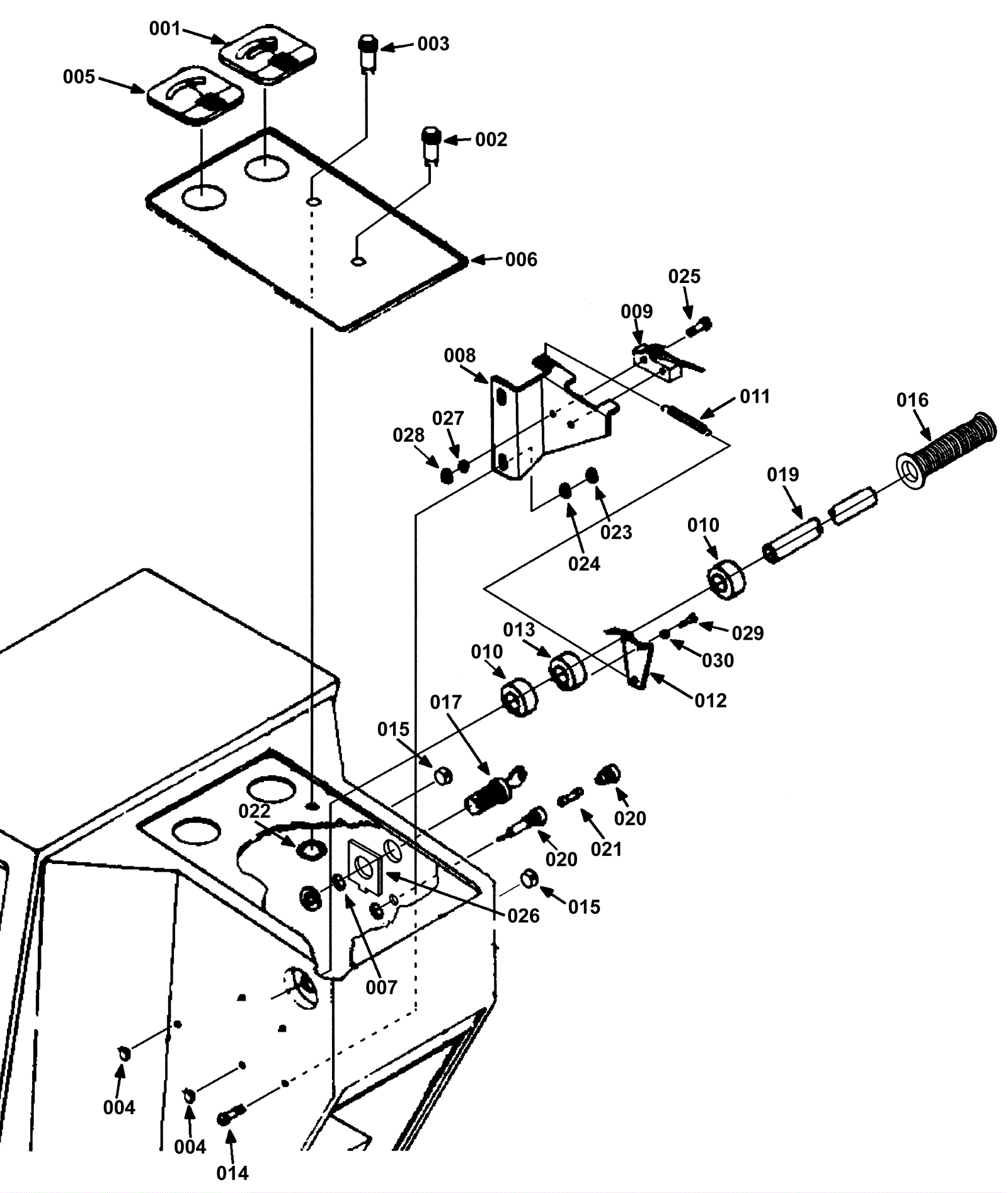

2500 Control Panel Assembly - Switches

#PartDescriptionPriceReqNotesAvailability
001 175-1412 Pad pressure meter (OBSOLETE) $48.84 1 usually ships 1-5 days
002 175-1413 Pilot light (amber) $10.42 1 usually ships 1-5 days
003 175-0393 Pilot light (green) $12.98 1 usually ships 1-5 days
004 175-2829 Dome plug $5.50 3 usually ships 1-5 days
005 175-1414 Battery meter $77.99 1 usually ships 1-5 days
006 175-1415 Control panel decal (OBSOLETE) $14.85 1 usually ships 1-5 days
007 999-0804 Washer M20 internal lock $1.24 1 ships same day
008 175-1416 Bracket $24.09 1 usually ships 1-5 days
009 675-9886 Snap switch $15.84 1 usually ships 13-17 days
010 175-1417 Shaft collar $3.96 2 usually ships 1-5 days
011 175-1418 Spring $12.21 1 usually ships 1-5 days
012 175-1419 Plate $8.80 1 usually ships 1-5 days
013 175-1420 Switch actuator collar $34.87 1 usually ships 1-5 days
014 999-1146 Screw 5/16-18 x 3/4 truss head phillips stainless steel $1.41 2 ships same day
015 175-2701 Plug $4.22 2 ships same day
016a 675-9894 Handle grip $5.41 2 ships same day
016b 991-8571 Handle grip $4.04 2 (NON-OEM) ships same day
017a 175-3727 Key switch (OBSOLETE) $198.55 1 (includes 017b) usually ships 13-17 days
017b 175-0185 Double sided key (steel) $16.94 1 ships same day
019 175-0384 Handlebar $50.05 1 usually ships 1-5 days
020 175-5010 Fuse holder $11.11 1 usually ships 13-17 days
021 175-5011 15amp slow-blow fuse $27.17 1 usually ships 1-5 days
022 N/A Not available Call for price 2 (Washer) usually ships 3-26 days
023 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
024 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
025 999-1167 Bolt 6-32 x 1 hex head stainless steel $2.27 2 usually ships 1-5 days
026 175-1422 Key switch bracket $9.24 1 usually ships 1-5 days
027 999-0051 Washer #6 medium split lock $0.99 2 ships same day
028 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
029 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
030 175-0472 Washer M3 lock (OBSOLETE) $1.45 2 usually ships 1-5 days
