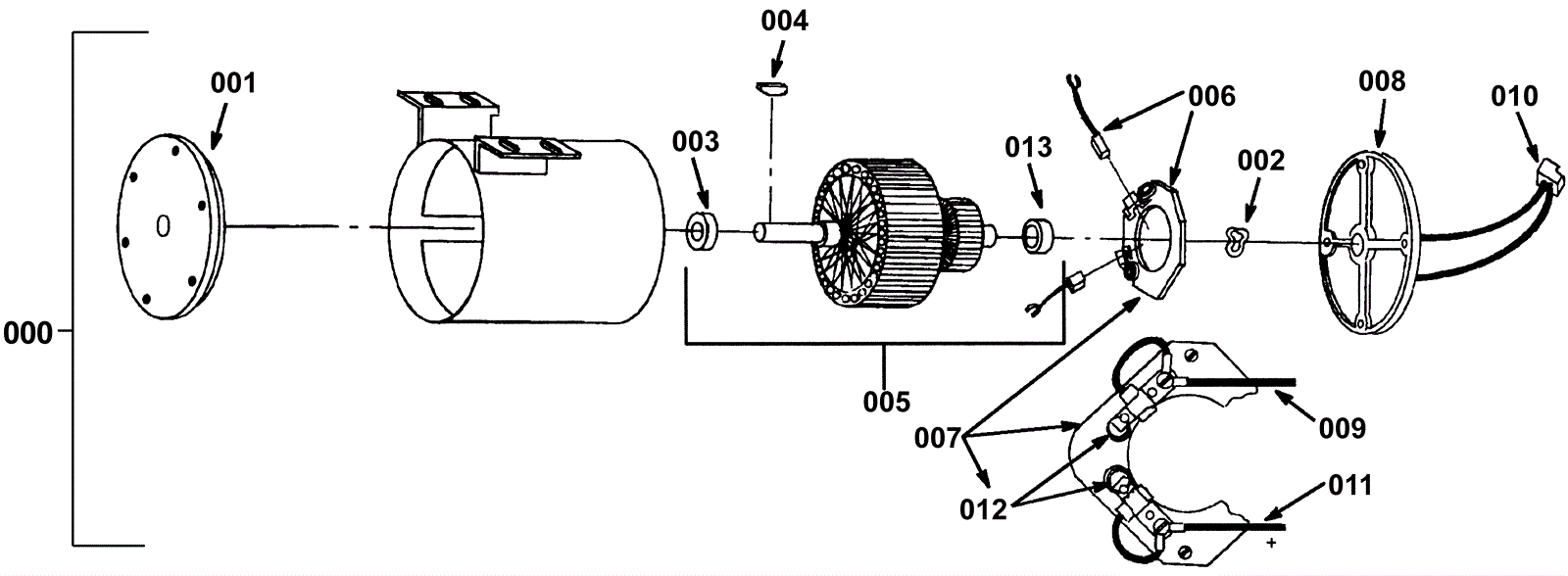

2500 Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000 175-1398 36V drive motor $507.43 1 (includes 001-013) usually ships 1-5 days
001 175-0428 Bracket $72.38 1 usually ships 1-5 days
002 175-0370 Helical washer $4.88 1 usually ships 1-5 days
003 175-0957 Brush bearing $13.31 1 usually ships 5-16 days
004 175-0415 Woodruff key (OBSOLETE) $1.72 1 usually ships 1-5 days
005 175-0429 Armature assembly $542.52 1 (includes 003, 004 and 013) usually ships 1-5 days
006 175-0430 Carbon brush (sold individually) $35.09 2 usually ships 1-5 days
007 175-0431 Brush board assembly (OBSOLETE) $88.55 1 (includes 006, 009, 011 and 012) usually ships 1-5 days
008 175-0432 Commutator bracket (OBSOLETE) $36.74 1 usually ships 1-5 days
009 175-0433 Negative lead $16.83 1 usually ships 1-5 days
010 175-1402 Connector $8.80 1 usually ships 1-5 days
011 175-0435 Positive lead $16.83 1 usually ships 1-5 days
012 175-0375 Brush spring (pkg of 4) $11.99 2 usually ships 1-5 days
013 175-0957 Brush bearing $13.31 1 usually ships 5-16 days
