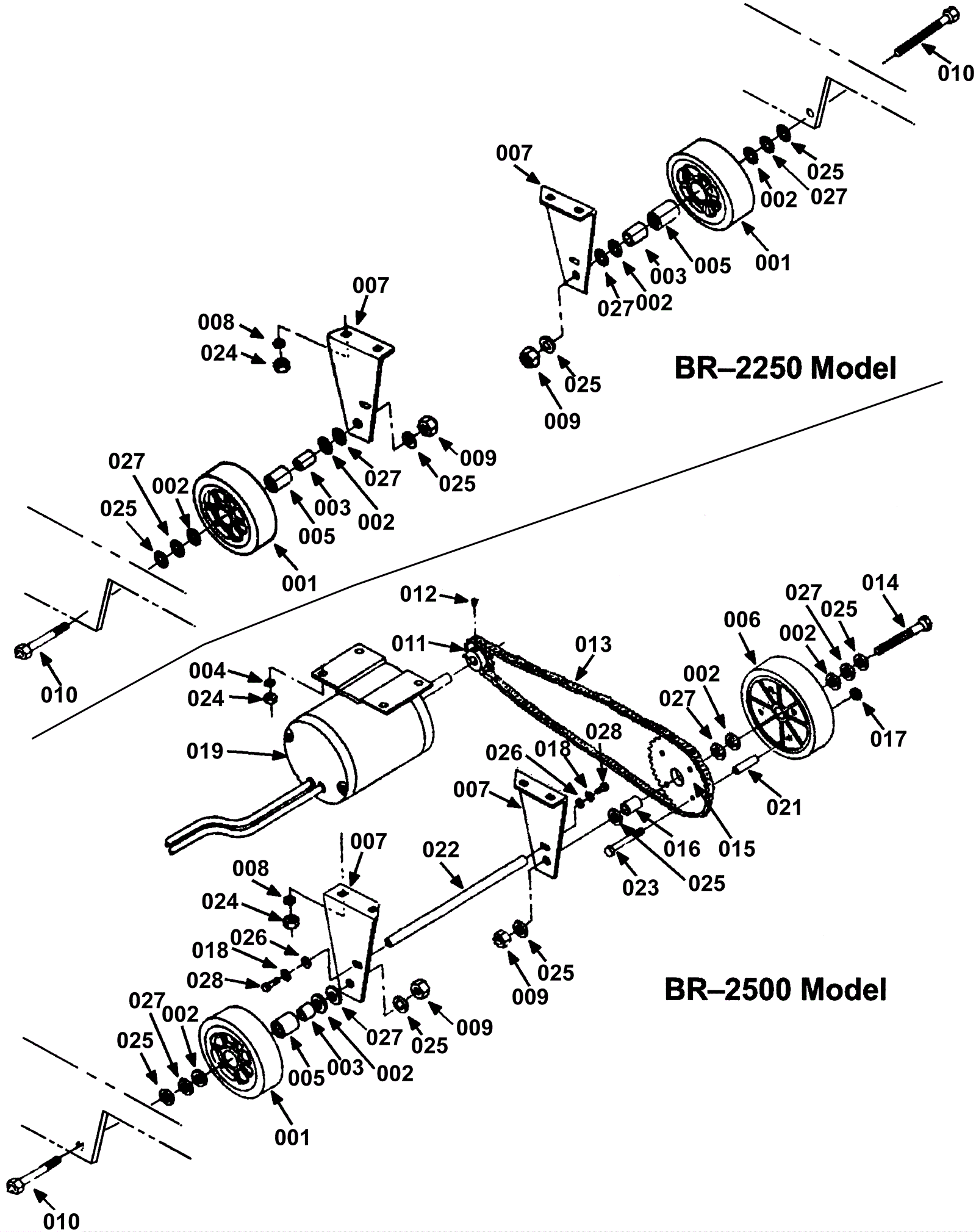

2500 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-1385 Wheel assembly (OBSOLETE) $150.59 2 (BR-2250) (includes 003 and 005) usually ships 1-5 days
001b 175-1385 Wheel assembly (OBSOLETE) $150.59 1 (BR-2500) (includes right side wheel, 003 and 005 - for left side wheel see reference 006) usually ships 1-5 days
002 175-1386 Thrust washer $5.50 4 usually ships 1-5 days
003a 175-1387 Spanner bushing $13.75 2 (BR-2250) usually ships 1-5 days
003b 175-1387 Spanner bushing $13.75 1 (BR-2500) usually ships 1-5 days
004 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
005a 175-1388 Wheel bearing $26.73 2 (BR-2250) usually ships 1-5 days
005b 175-1388 Wheel bearing $26.73 1 (BR-2500) usually ships 1-5 days
006 175-1389 Wheel $221.10 1 (BR-2500) usually ships 10-16 days
007 175-1390 Wheel mounting bracket (OBSOLETE) $18.15 2 usually ships 1-5 days
008 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
009 999-0182 Nut 1/2-20 hex plain finish $0.99 2 ships same day
010a 175-1391 Axle $4.36 2 (BR-2250) usually ships 1-5 days
010b 175-1391 Axle $4.36 1 (BR-2500) (right side axle - for left side axle see reference 014) usually ships 1-5 days
011 175-1392 Sprocket $45.21 1 usually ships 1-5 days
012 175-1393 Set screw $3.96 2 usually ships 1-5 days
013 175-1394 Chain $69.19 1 usually ships 1-5 days
014 175-1395 Axle $34.98 1 (BR-2500) usually ships 1-5 days
015 175-1396 Sprocket $51.37 1 usually ships 1-5 days
016 175-1397 Wheel spacer $8.25 1 usually ships 1-5 days
017 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
018 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
019a 175-1398 36V drive motor $507.43 1 usually ships 1-5 days
019b 175-0430 Carbon brush (sold individually) $35.09 1 usually ships 1-5 days
021 175-1399 Spacer $3.56 4 usually ships 1-5 days
022 175-1400 Wheel mounting support $39.16 1 usually ships 1-5 days
023 999-0800 Bolt 1/4-20 x 2 1/2 hex head hot dipped galvanized $0.99 4 ships same day
024a 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 (BR-2250) ships same day
024b 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 (BR-2500) ships same day
025a 999-0187 Washer 1/2 flat plain finish $0.99 4 (BR-2250) ships same day
025b 999-0187 Washer 1/2 flat plain finish $0.99 5 (BR-2500) ships same day
026 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
027 999-0588 Washer 7/8 flat stainless steel $11.44 4 ships same day
028 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
