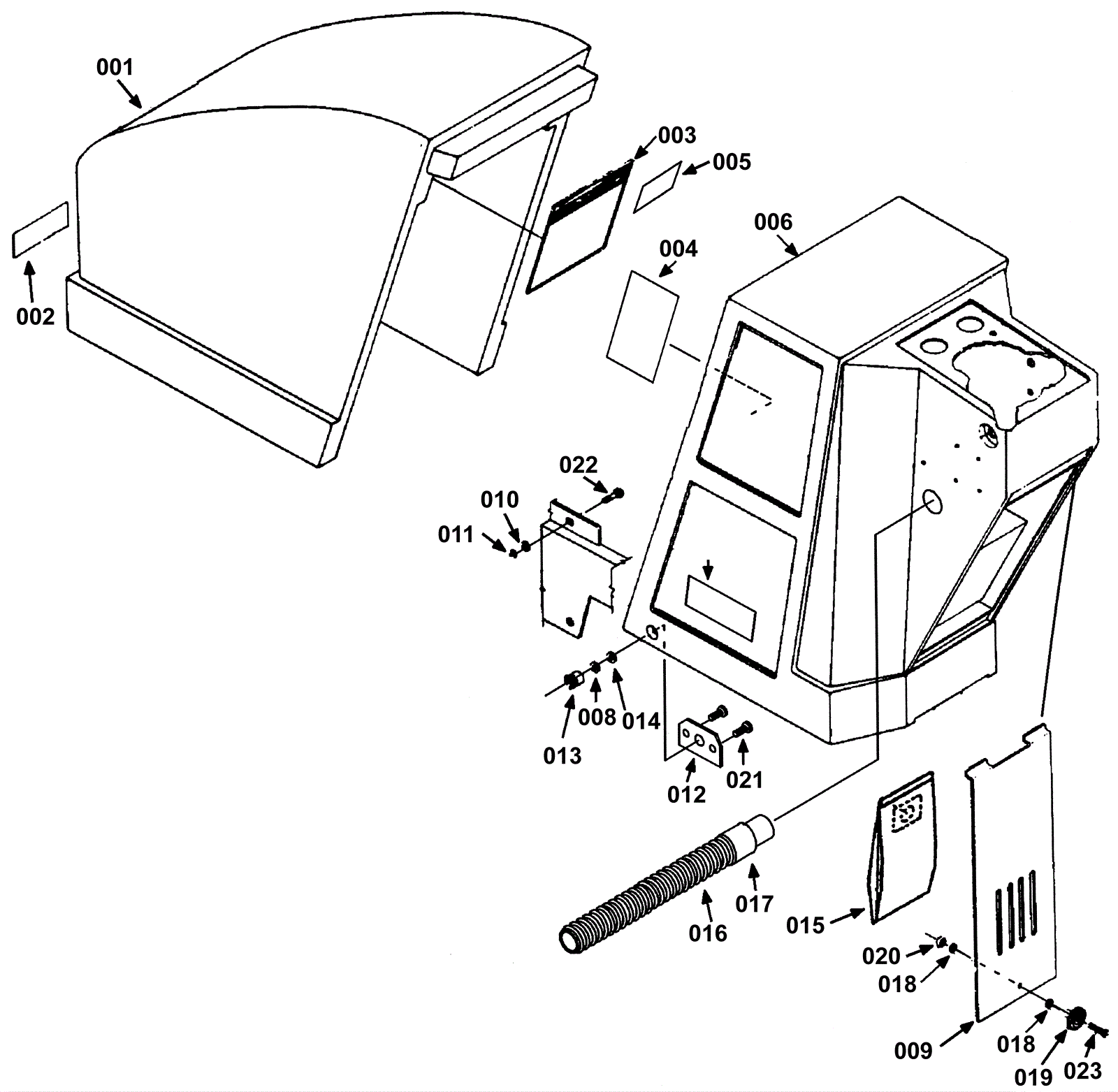

2500 Cover Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-1368 Front hood (green) (OBSOLETE) $480.04 1 usually ships 1-5 days
002 275-5867 Front decal $10.12 1 ships same day
003 175-1370 Maintenance decal (OBSOLETE) $13.09 1 usually ships 1-5 days
004a 175-1371 Battery wiring diagram decal (OBSOLETE) $14.96 1 (BR-2250) usually ships 1-5 days
004b 175-1372 Battery wiring diagram decal (OBSOLETE) $11.99 1 (BR-2500) usually ships 1-5 days
005 175-5110 Warning decal (OBSOLETE) $8.25 1 usually ships 1-5 days
006 175-1373 Rear cover (green) (OBSOLETE) $534.05 1 usually ships 1-5 days
008 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
009 175-1376 Vacuum door $68.31 1 usually ships 1-5 days
010 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
012 175-1377 Plate (OBSOLETE) $6.60 2 usually ships 1-5 days
014 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
015a 175-1379 Paper vacuum bags (pkg of 10) $11.55 1 usually ships 1-5 days
015b 175-1380 Cloth vacuum bag $77.11 1 usually ships 1-5 days
016 175-1381 Dust control hose $49.61 1 usually ships 1-5 days
017 175-1382 Hose cuff $11.88 1 usually ships 1-5 days
018 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
019 175-1384 Thumb nut $11.22 1 usually ships 10-16 days
020 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
021 999-0778 Screw M6-1 x 10mm hex head $0.99 4 ships same day
022 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 2 ships same day
023 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 1 ships same day
N/S 175-1374 BR-2250 decal (OBSOLETE) $12.54 2 usually ships 1-5 days
N/S 175-1375 BR-2500 decal (OBSOLETE) $11.88 2 usually ships 1-5 days
