| # | Part | Description |
Req | Notes | Availability |
|---|

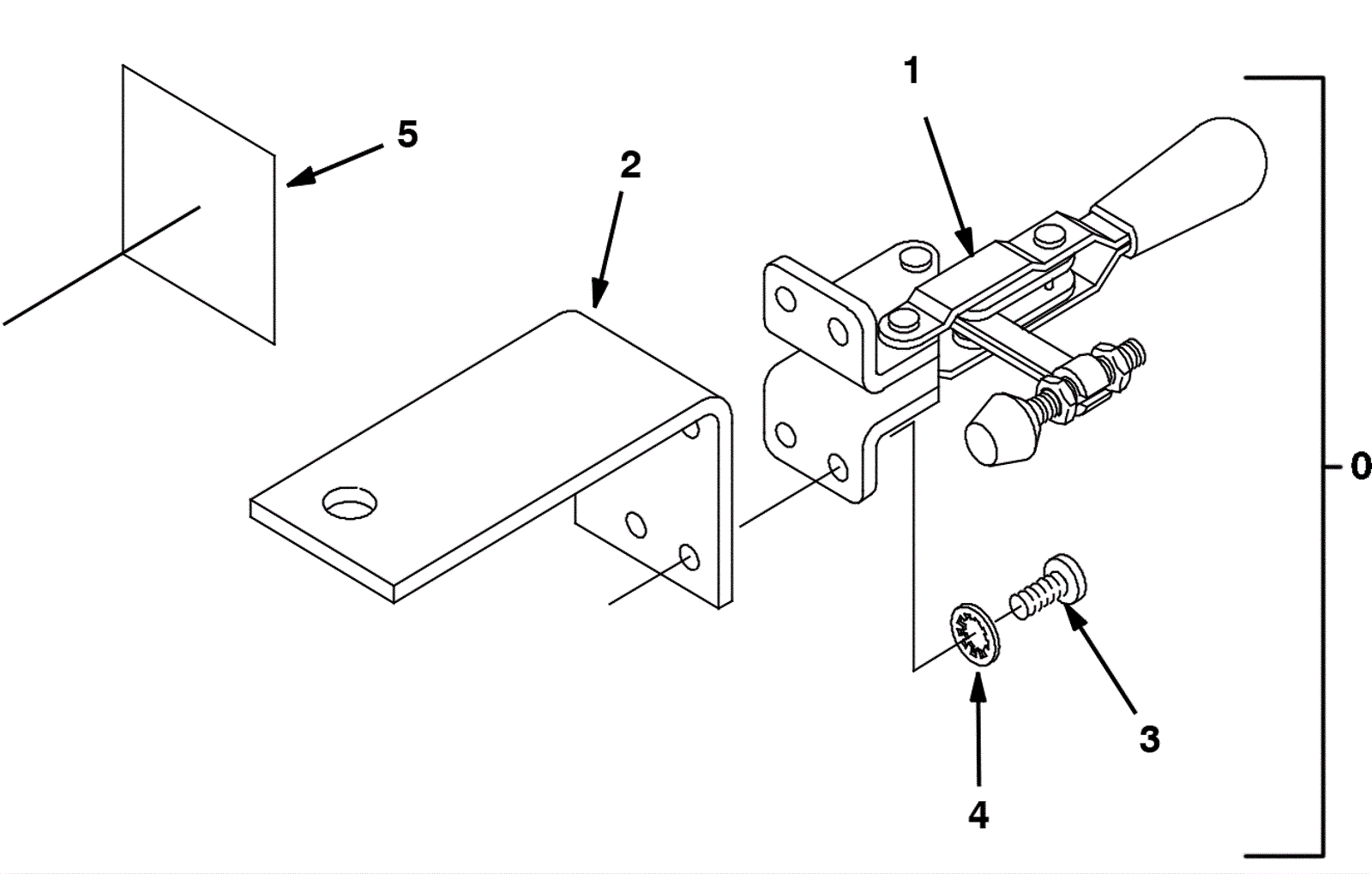

0 |
175-1247
|
Parking brake assembly |
1 |
(includes 1-5) |
|
1 |
175-1248
|
Parking brake clamp |
1 |
|
|
2 |
175-1256
|
Bracket |
1 |
|
|
3 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
4 |
|
|
4 |
999-1026
|
Washer #10 internal lock stainless steel |
4 |
|
|
5 |
175-8643
|
Parking brake decal |
1 |
|
|
