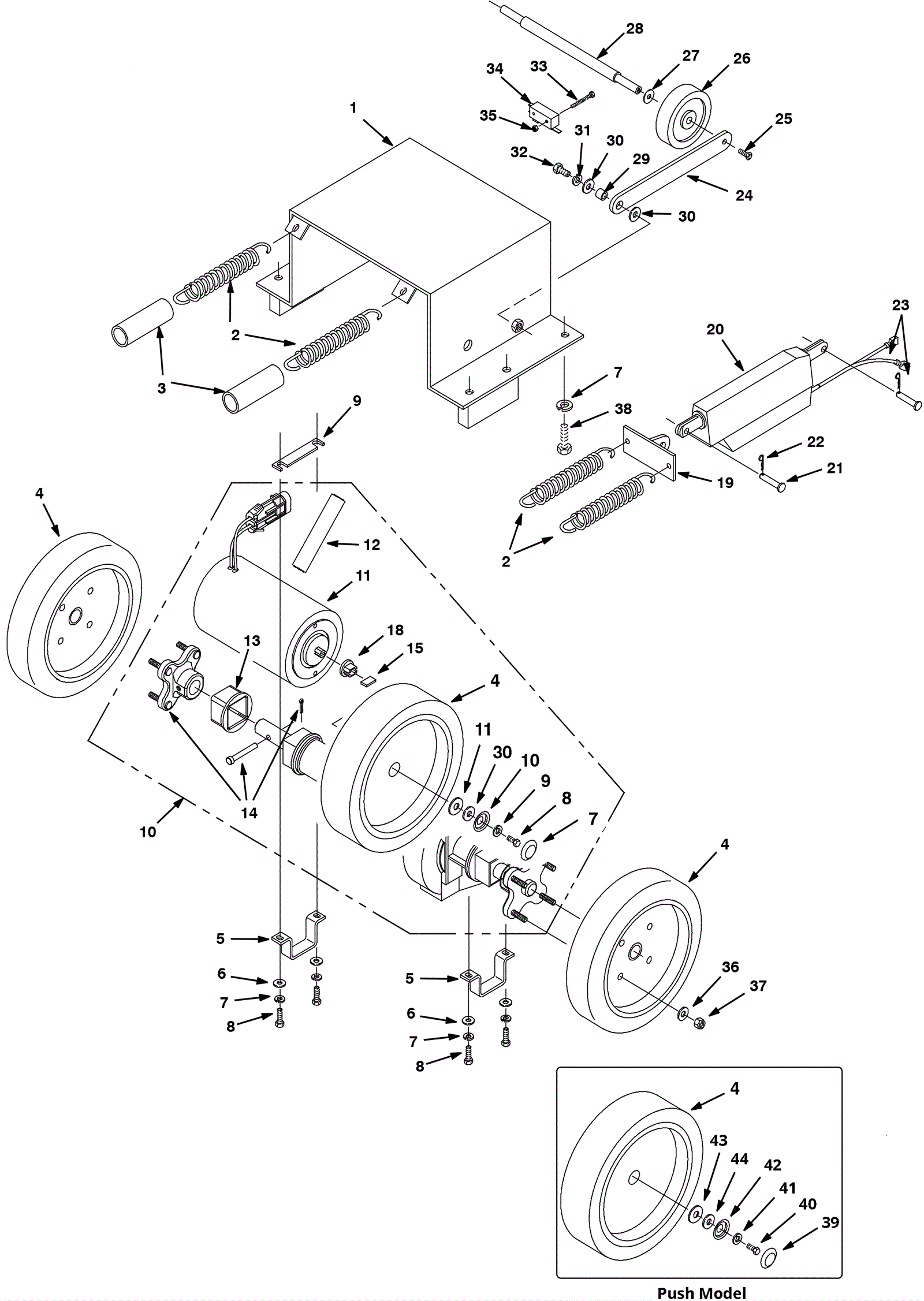

SPEEDGLEAM Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1166 Frame weldment $562.43 1 usually ships 5-16 days
2 175-0943 Extension spring $10.89 4 usually ships 5-16 days
3 175-1172 Sleeve (OBSOLETE) $10.89 2 usually ships 5-16 days
4a 175-3017 Neoprene solid wheel $264.22 2 (drive model) usually ships 5-16 days
4b 175-1072 8 inch wheel $142.78 2 (push model) ships same day
5 175-3020 Transaxle mounting bracket $21.52 2 (drive model) ships same day
6 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 (drive model) ships same day
7 999-1081 Washer M10 split lock stainless steel $0.99 6 ships same day
8 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 4 ships same day
9 175-1170 Spacer $22.22 1 usually ships 1-5 days
10 175-4374 36V transaxle assembly $2,310.77 1 (includes 11-18) (drive model) usually ships 5-16 days
11 275-0635 Transaxle motor $666.16 1 (includes 12) (drive model) usually ships 5-16 days
12 175-7898 Carbon brush (pkg of 4) $66.77 1 (drive model) ships same day
13 175-3660 Transaxle sleeve $10.34 2 (drive model) usually ships 5-16 days
14 275-5229 Transaxle wheel hub with retainer $137.61 2 (drive model) usually ships 5-16 days
15 175-3656 Transaxle key $10.23 1 (drive model) usually ships 5-16 days
16 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 (drive model) ships same day
17a 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 2 (after SN 10206961) (drive model) ships same day
17b 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish $0.99 2 (before SN 102206962) (drive model) ships same day
18 175-3655 Transaxle coupling $10.01 1 (drive model) ships same day
19 175-1174 Bracket $79.42 1 usually ships 5-16 days
20 175-3010 Actuator $480.70 1 usually ships 5-16 days
21 175-3012 Clevis pin $7.70 2 usually ships 5-16 days
22 175-2113 Cotter pin $3.04 2 ships same day
23 175-0142 1/4 inch male terminal $4.88 2 usually ships 5-16 days
24 175-1175 Pivot arm $55.77 2 usually ships 5-16 days
25 999-1422 Screw M6-1 x 16mm flat head zinc plated $2.26 2 ships same day
26a 175-0292 4 inch rear wheel (gray) $38.72 2 (OEM) ships same day
26b 991-1913 4 inch wheel (gray) $18.50 2 (NON-OEM) ships same day
27 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
28 175-1177 Rear axle $72.60 1 usually ships 5-16 days
29 175-2731 Bushing $8.14 2 usually ships 5-16 days
30 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
31 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
32 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
33 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
34 175-6532 Snap switch $14.74 1 ships same day
35 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
36 999-0016 Washer 1/4 flat plain finish $0.99 8 (drive model) ships same day
37 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 (drive model) ships same day
38 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
39 175-1096 Wheel cap $4.09 2 (push model) usually ships 5-16 days
40 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 (push model) ships same day
41 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 (push model) ships same day
42 175-1095 Washer $4.75 2 (push model) usually ships 5-16 days
43 999-0187 Washer 1/2 flat plain finish $0.99 2 (push model) ships same day
44 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 (push model) ships same day
