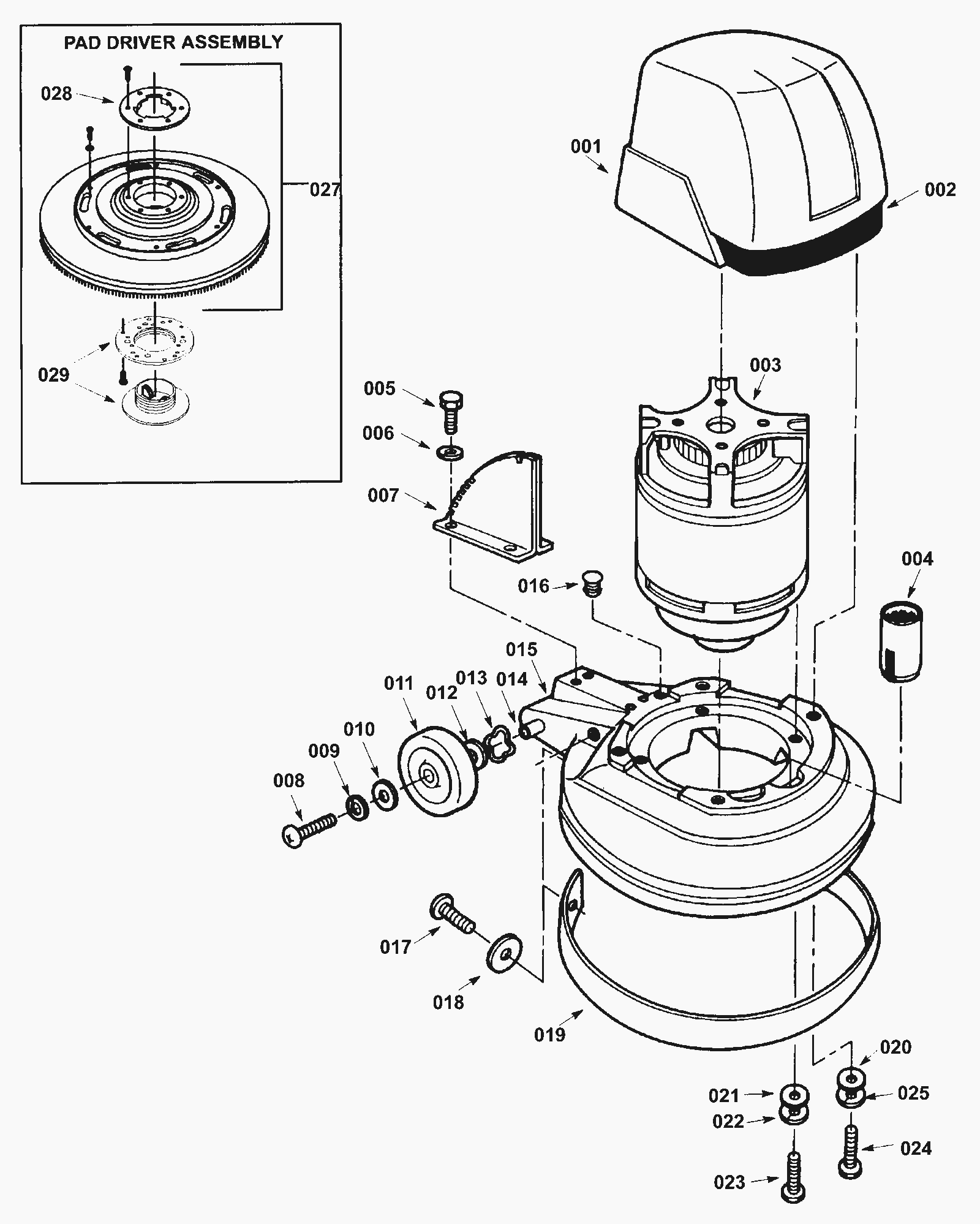

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-0283
|
Cover motor (green) |
1 |
|
|
002 |
N/A
|
Not available |
1 |
1 x 2 inch black recess label |
|
003a |
175-0285
|
Motor 120 volt (OBSOLETE) |
1 |
(1700LS/2000LS) |
|
003a1 |
170-0694
|
Odum coupling |
1 |
|
|
003a2 |
N/A
|
Not available |
1 |
TAG, BRUSH, SIDE (Tennant Industrial)
|
|
003a3 |
N/A
|
Not available |
1 |
Pinion kit |
|
003b |
175-6615
|
120V 1.5HP brush motor assembly |
1 |
(1700HD/2000HD) |
|
003b1 |
170-0694
|
Odum coupling |
1 |
|
|
003b2 |
N/A
|
Not available |
1 |
TAG, BRUSH, SIDE (Tennant Industrial)
|
|
003b3 |
N/A
|
Not available |
1 |
Pinion kit |
|
003c |
175-3497
|
120V 1.50HP brush motor assembly |
1 |
(1700DS/2000DS |
|
003c1 |
175-3491
|
Carbon brush (pkg of 4) |
1 |
|
|
003c2 |
175-3492
|
Carbon brush |
4 |
|
|
003c3 |
175-3493
|
600V 60amp rectifier |
1 |
|
|
003c4 |
175-3494
|
Speed control |
1 |
|
|
003c5 |
175-3495
|
Holder (OBSOLETE) |
1 |
|
|
004a |
175-0289
|
Start capacitor (black) |
1 |
|
|
004b |
175-0287
|
Acrylic foam tape 1 inch x 1 foot |
1 ft |
Cut to .17ft |
|
004c |
175-0288
|
Run capacitor (silver) |
1 |
(1700HD/2000HD) |
|
004d |
175-0289
|
Start capacitor (black) |
1 |
(1700HD/2000HD) |
|
005 |
999-0030
|
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
4 |
|
|
006 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
007 |
175-0291
|
Plate latch (OBSOLETE) |
1 |
|
|
008 |
999-0694
|
Screw 1/4-20 x 1/2 flat head phillips zinc plated |
2 |
|
|
009 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
010 |
999-1119
|
Washer 1/4 x 1 fender zinc plated |
2 |
|
|
011a |
175-0292
|
4 inch rear wheel (gray) |
2 |
(OEM) |
|
011b |
991-1913
|
4 inch wheel (gray) |
2 |
(NON-OEM) |
|
012 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
013 |
175-0293
|
Washer 1/2 compression zinc plated |
4 |
|
|
014 |
175-0294
|
Axle |
1 |
|
|
015a |
175-0295
|
17 inch base (green) |
1 |
(1700LS/1700HD/1700DS) |
|
015b |
175-0296
|
20 inch base (green) |
1 |
(2000LS/2000HD/2000DS) |
|
016 |
175-2700
|
Plug |
1 |
|
|
017 |
999-1080
|
Screw 1/4-20 x 5/8 truss head phillips stainless steel |
2 |
|
|
018 |
999-1119
|
Washer 1/4 x 1 fender zinc plated |
2 |
|
|
019a |
175-0298
|
20 inch bumper |
1 |
(2000LS/2000HD/2000DS) |
|
019b |
175-1270
|
17 inch (430mm) bumper |
1 |
(1700LS/1700HD/1700DS) |
|
020 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
021a |
999-1119
|
Washer 1/4 x 1 fender zinc plated |
4 |
|
|
021b |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
022a |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
022b |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
023a |
999-0748
|
Screw 1/4-20 x 1 1/2 flat head phillips zinc plated |
4 |
|
|
023b |
999-0109
|
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
4 |
|
|
024 |
999-0394
|
Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated |
4 |
|
|
025 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
028a |
175-0307
|
Plate clutch (metal) |
1 |
|
|
028b |
175-0309
|
Clutch plate (plastic) |
1 |
|
|
029 |
996-0372
|
Big mouth pad holder (left hand thread) |
1 |
(optional) |
|
N/S |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
