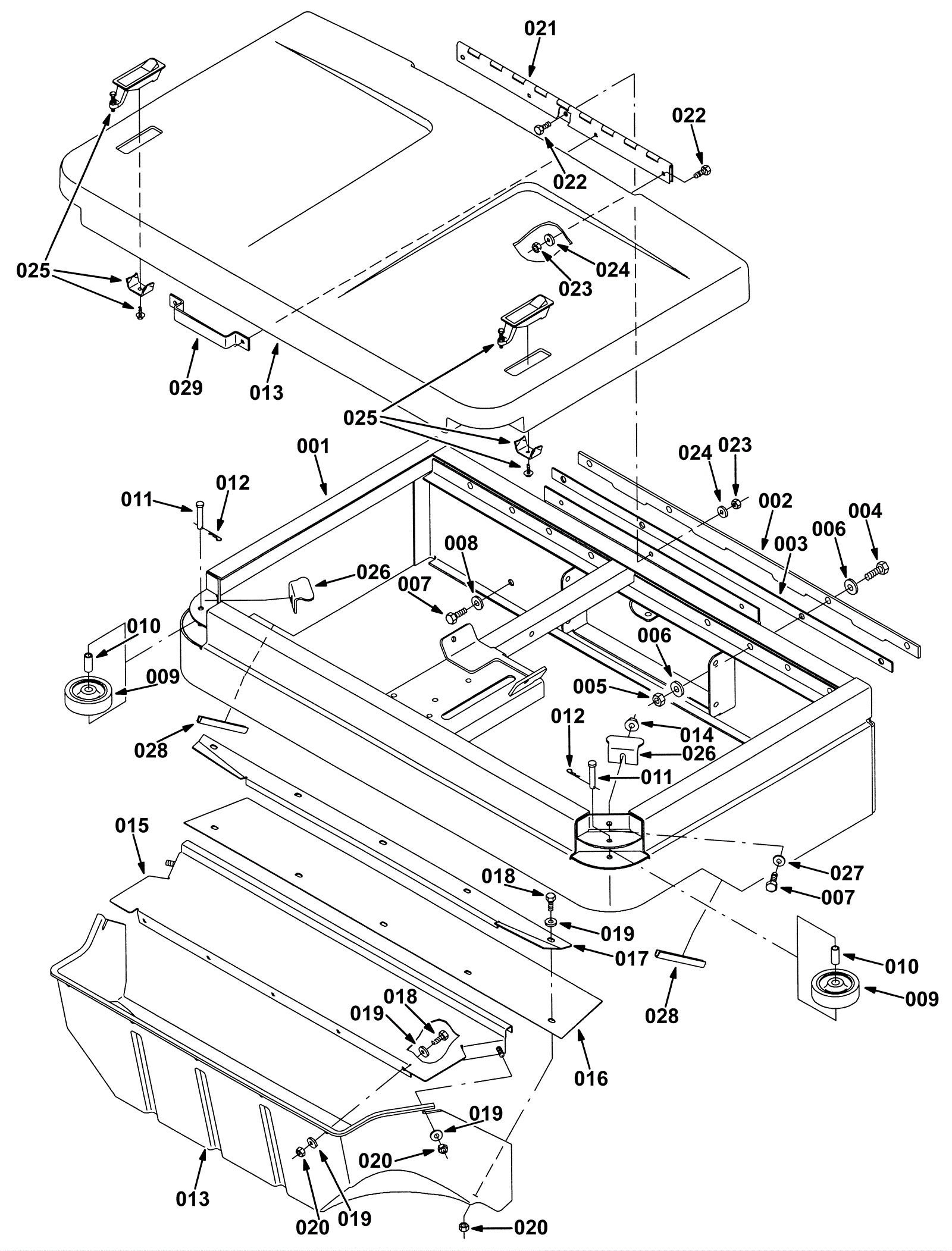

7200SS Pre-Sweep Frame and Hopper Group (008300-)

#PartDescriptionPriceReqNotesAvailability
001 275-0038 Pre-sweep frame weldment $1,326.38 1 usually ships 1-5 days
002 275-0039 Clamp plate $30.25 1 usually ships 5-16 days
003 275-0040 Clamp plate $42.90 1 usually ships 1-5 days
004 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $4.88 4 usually ships 1-5 days
005 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 4 usually ships 1-5 days
006 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
007 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
008 999-0105 Washer 5/16 external star lock zinc plated $0.99 2 ships same day
009 175-3156 Bumper wheel $15.51 2 usually ships 5-16 days
010 175-3157 Sleeve .318 x .437 x 1.06 inch $6.49 2 usually ships 5-16 days
011 275-0041 Clevis pin 5/16 x 1 3/4 inch $4.09 2 usually ships 1-5 days
012 175-7107 Cotter hair pin $3.04 2 usually ships 5-16 days
013 275-0042 Hopper kit with cover $1,118.26 1 usually ships 5-16 days
014 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
015 275-0043 Hopper cover (OBSOLETE) $149.93 1 usually ships 5-16 days
016 275-0044 Neoprene skirt .06 4.69w 33.56l 05SL $34.87 1 usually ships 5-16 days
017 275-0045 Hopper lip retainer (OBSOLETE) $54.45 1 usually ships 5-16 days
018 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 10 ships same day
019 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 17 ships same day
020 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 12 ships same day
021 275-0046 Hinge .18 pin .06 2.5w 19l $72.16 1 usually ships 1-5 days
022 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 7 ships same day
023 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 7 ships same day
024 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
025 275-0047 Latch $68.64 2 usually ships 5-16 days
026 275-0048 Latch strike angle $11.99 2 usually ships 1-5 days
027 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
028 275-8203 Molding $45.21 2 usually ships 1-5 days
029 275-0050 Cover bracket $25.08 1 usually ships 1-5 days
