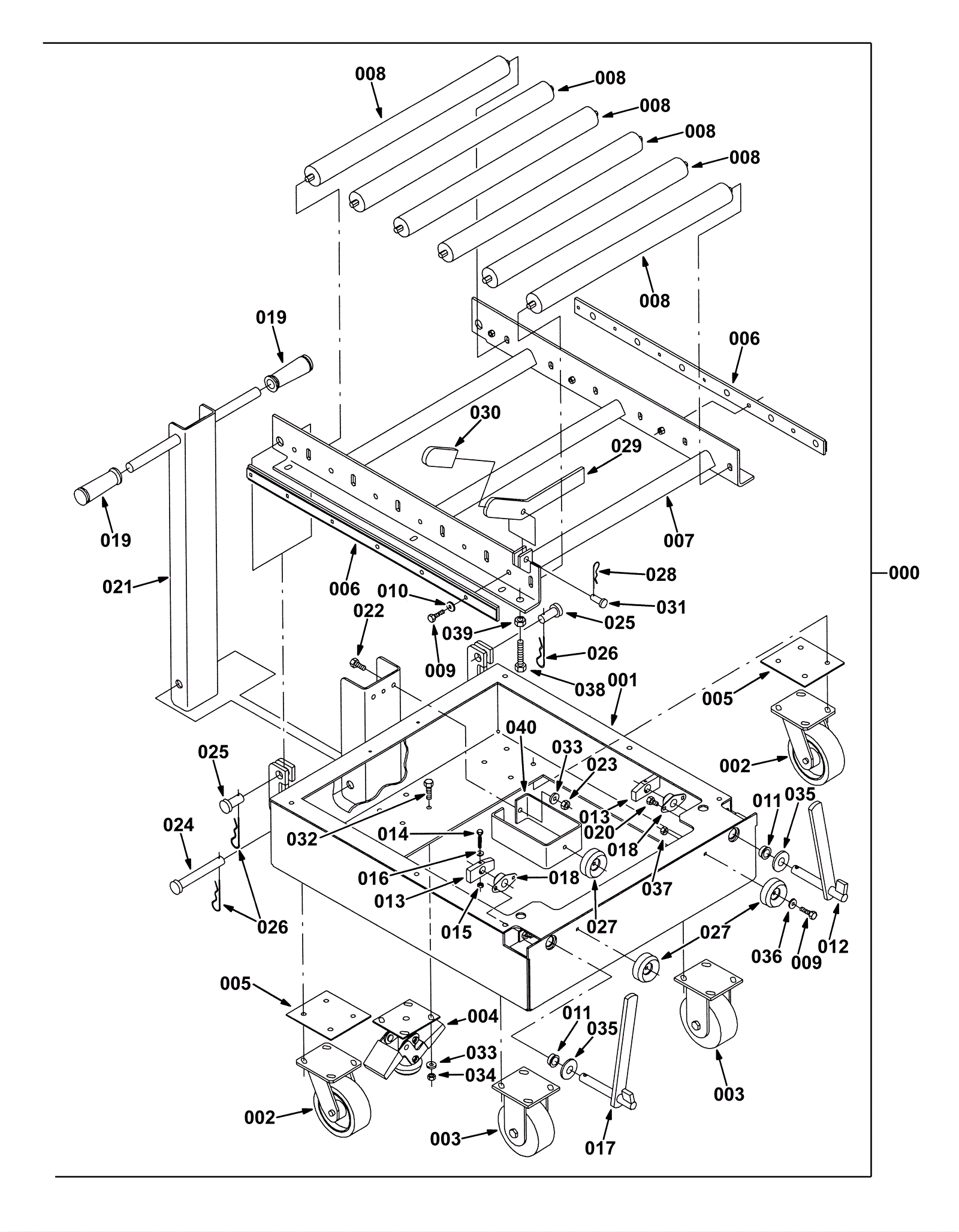

7200SS Rollout Battery Cart Kit

#PartDescriptionPriceReqNotesAvailability
000 275-0012 CI rollout battery cart kit $4,765.53 1 includes 001-040 usually ships 1-5 days
001 275-0013 Battery cart frame $1,162.59 1 usually ships 1-5 days
002a 175-2100 5 inch caster wheel assembly (gray) $110.33 2 (OEM) ships same day
002b 991-2011 Caster wheel assembly $103.56 1 (NON-OEM) ships same day
003 275-7218 5 inch rigid caster $138.49 2 usually ships 1-5 days
004 275-0015 Floor lock $261.69 1 usually ships 1-5 days
005 275-0016 Spacer plate $14.63 2 usually ships 5-16 days
006 275-0017 Roller shaft retainer $55.88 2 usually ships 1-5 days
007 275-0018 Roller mounting frame weldment $588.39 1 usually ships 1-5 days
008 275-0019 Steel roller assembly $43.56 6 usually ships 1-5 days
009 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 12 ships same day
010 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 12 ships same day
011 275-0020 Nylon grommet $1.58 2 usually ships 1-5 days
012 275-0021 Left hand lock weldment $72.05 1 usually ships 1-5 days
013 275-0022 Battery cart lock stop block $75.24 2 usually ships 1-5 days
014 999-0780 Screw M6-1 x 40mm hex head $0.99 2 ships same day
015 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
016 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
017 275-0023 Right hand lock weldment $72.05 1 usually ships 1-5 days
018 175-3201 Flanged bearing $6.05 2 usually ships 5-16 days
019a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
019b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
020 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
021 275-0024 Battery cart handle weldment $144.87 1 usually ships 1-5 days
022 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.96 2 usually ships 5-16 days
023 275-0026 Nut M10-1.25 hex standard $4.09 2 usually ships 1-5 days
024 175-9742 Clevis pin $14.41 1 usually ships 1-5 days
025 275-0027 Clevis pin $10.01 2 usually ships 1-5 days
026 275-0028 Cotter hair pin $3.04 3 usually ships 1-5 days
027 275-0029 Rubber bumper $8.03 3 usually ships 1-5 days
028 175-5402 Cotter hair pin $8.14 1 usually ships 1-5 days
029 275-0030 Battery stop flat arm $19.03 1 usually ships 1-5 days
030 275-0031 Handle grip $21.45 1 usually ships 1-5 days
031 275-0032 Clevis pin $4.88 1 usually ships 1-5 days
032 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $4.88 20 usually ships 1-5 days
033 999-0032 Washer 3/8 USS flat plain finish $2.42 22 ships same day
034 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 20 usually ships 1-5 days
035 999-0630 Washer 3/4 SAE flat $0.99 2 ships same day
036 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
037 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
038 275-0034 Screw M12-1.75 x 50 hex head fl $6.71 2 usually ships 1-5 days
039 275-0035 Nut M12-1.75 hex standard $3.96 2 usually ships 5-16 days
040 275-0036 Battery case stop bracket $45.32 1 usually ships 1-5 days
