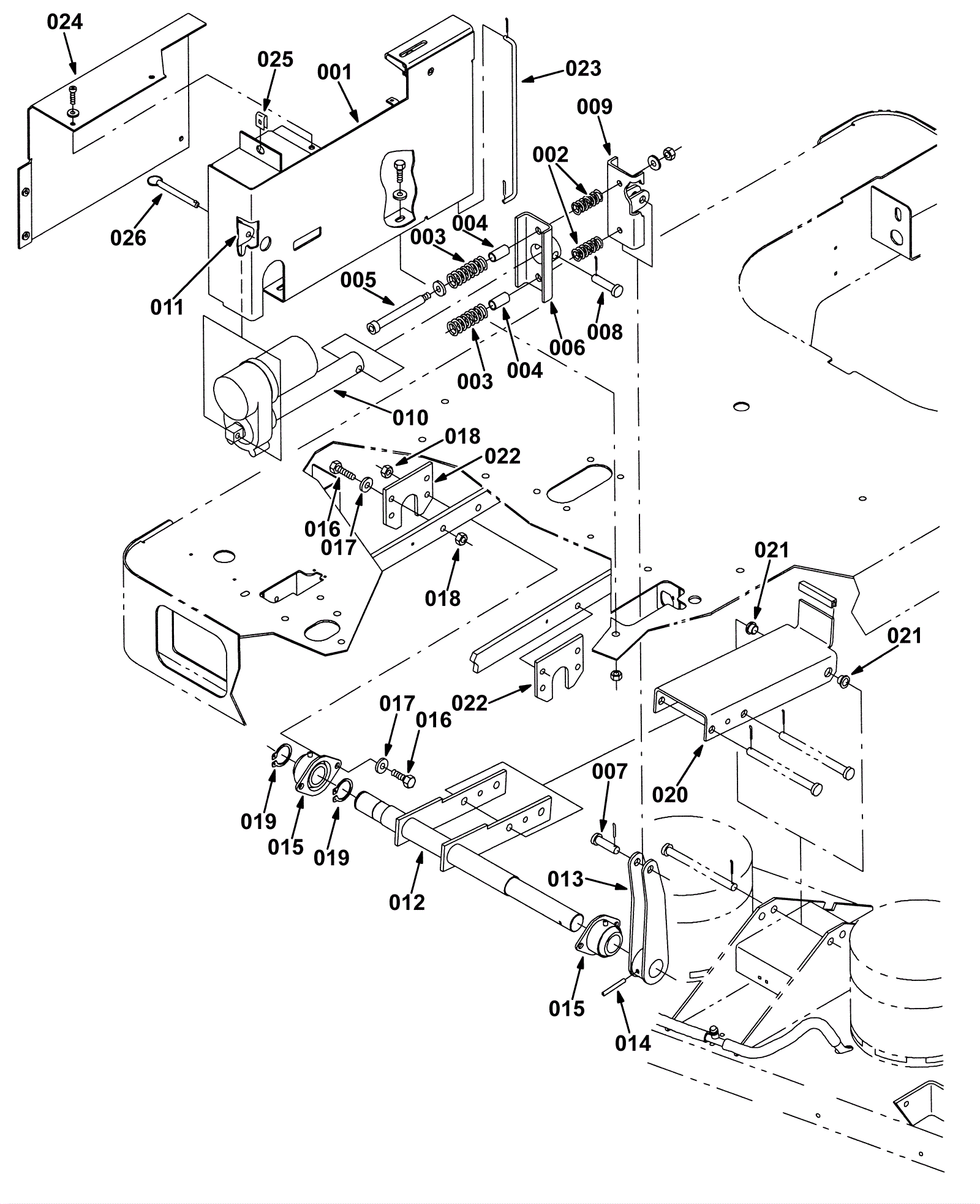

7200SS Rollout Battery Scrub Head Lift Group

#PartDescriptionPriceReqNotesAvailability
001 175-9776 PANEL WLDT, MTG, TOOL LIFT (Tennant Industrial) $369.07 1 usually ships 1-5 days
002 175-3316 Compression spring $5.83 2 usually ships 1-5 days
003 175-3315 Compression spring $8.25 2 usually ships 1-5 days
004 175-2442 Sleeve $7.37 2 usually ships 5-16 days
005 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $21.45 2 usually ships 1-5 days
006 175-3314 Mounting actuator channel weldment $108.46 1 usually ships 1-5 days
007 174-0347 Clevis pin 1/2 x 1.75 $1.00 1 usually ships 1-5 days
008 175-2382 Clevis pin $5.50 1 usually ships 5-16 days
009 175-3317 Lift channel $49.83 1 usually ships 1-5 days
010 175-3313 Actuator $489.39 1 usually ships 5-16 days
011 N/A Not available Call for price 1 Bumper pivot ear usually ships 3-26 days
012 175-9779 Tool lift shaft weldment $250.58 1 usually ships 1-5 days
013 175-9780 Tool lift arm weldment $117.59 1 usually ships 1-5 days
014 175-9781 Roll pin 3/8d x 2l .375/.382 $4.09 1 usually ships 1-5 days
015 175-9782 Flanged bearing 2 hole 1 1/4 bore $24.20 2 usually ships 1-5 days
016 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 8 ships same day
017 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
018 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 8 ships same day
019 175-9783 Retaining ring 1 1/4d $4.09 2 usually ships 1-5 days
020a 175-9784 CHANNEL WLDT, TOOL, LIFT (Tennant Industrial) $119.74 1 usually ships 1-5 days
020b 175-9785 Tool lift channel weldment (700mm r/o disk) (Tennant Indust $469.60 1 usually ships 1-5 days
021 175-3335 Flanged bushing $15.73 2 usually ships 1-5 days
022 175-9786 Bearing mounting plate $27.28 2 usually ships 1-5 days
023 175-9787 Water control valve rod (OBSOLETE) $44.44 1 usually ships 1-5 days
024 175-9788 ANGLE, COVER, TOOL LIFT (Tennant Industrial) $107.72 1 usually ships 1-5 days
025 175-5927 Nut M08 - 1 1/4 U $3.96 1 usually ships 1-5 days
026 175-9789 PIN, HITCH, .375D X 3.12L, PL (Tennant Industrial) $11.50 1 ships same day
