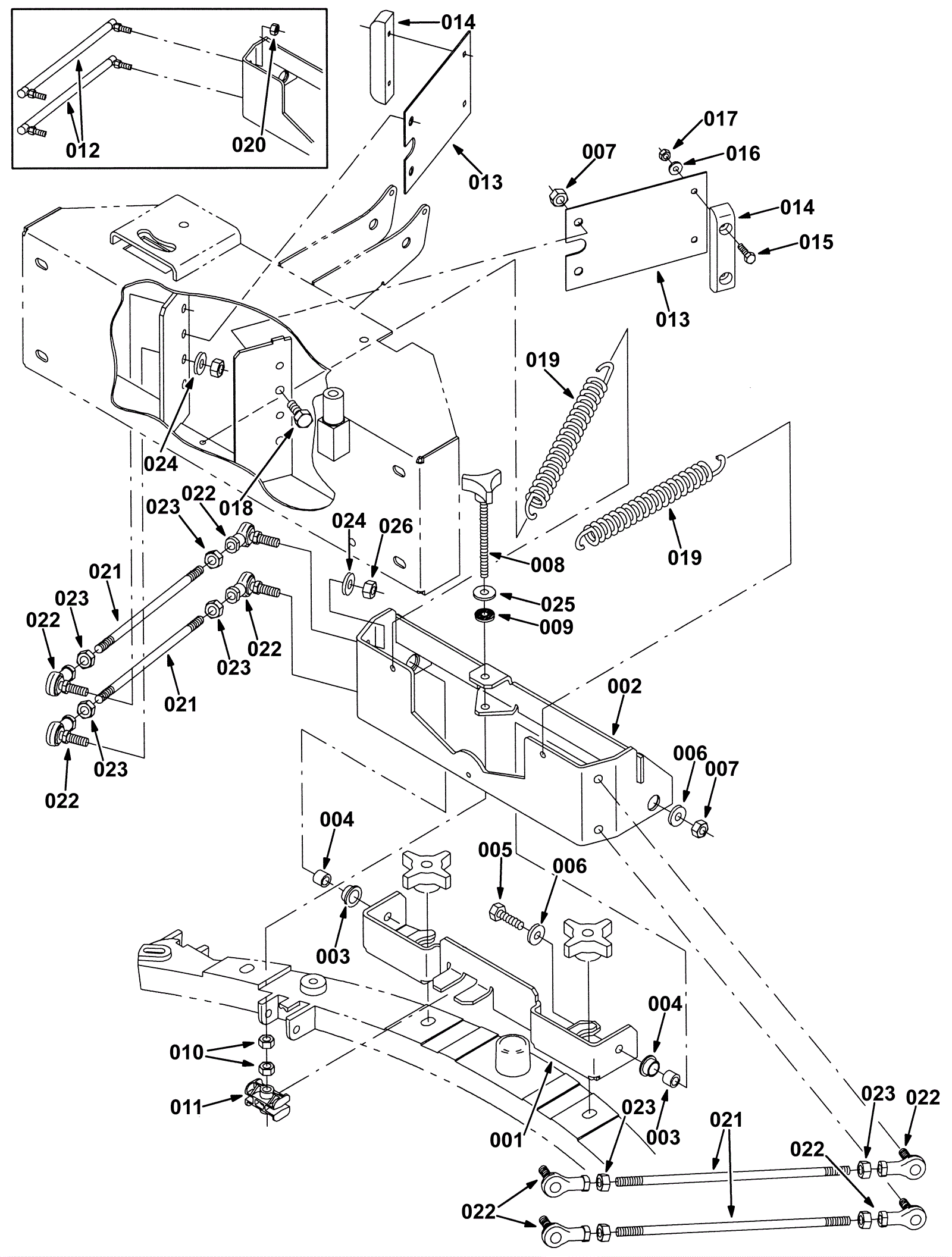

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
175-9610
|
Squeegee conversion kit 28 inch |
1 |
serial number 006072-007999 |
|
001b |
175-9611
|
Squeegee conversion kit 36 inch (Industrial) |
1 |
serial number 006072-007999 |
|
001c |
175-9612
|
Pivot bracket weldment |
1 |
serial number 008000 and up |
|
002a |
175-9614
|
BRACKET WLDT, LIFT, SQGE (Tennant Industrial) |
1 |
serial number 006072-007999 |
|
002b |
175-9614
|
BRACKET WLDT, LIFT, SQGE (Tennant Industrial) |
1 |
serial number 008000 and up |
|
003 |
175-3460
|
Flanged bushing |
2 |
|
|
004 |
175-9606
|
Round tube |
2 |
|
|
005 |
999-0246
|
Bolt M10-1.5 x 35mm hex head full thread |
2 |
|
|
006 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
007 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
6 |
|
|
008 |
175-3461
|
Knob |
1 |
|
|
009 |
175-2896
|
Washer 5/16 |
1 |
|
|
010 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
011 |
175-2301
|
Squeegee adjustment block |
1 |
|
|
012 |
175-9607
|
LINK KIT, SQGE, REPAIR (Tennant Industrial) |
1 |
|
|
013 |
175-9608
|
Centering spring |
2 |
|
|
014 |
175-3463
|
Centering block (OBSOLETE) |
2 |
|
|
015 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
016 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
017 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
018 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
4 |
|
|
019 |
175-9609
|
Tension spring |
2 |
|
|
020 |
999-0296
|
Nut 5/16-24 nylon insert lock stainless steel |
8 |
|
|
021 |
175-9615
|
ROD, THRD, 2 END, .38-24 11.3L (Tennant Industrial) |
4 |
|
|
022 |
175-3321
|
Rod end right side |
8 |
|
|
023 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
8 |
|
|
024 |
999-0201
|
Washer 3/8 internal star lock |
8 |
|
|
025 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
026 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
8 |
|
|
