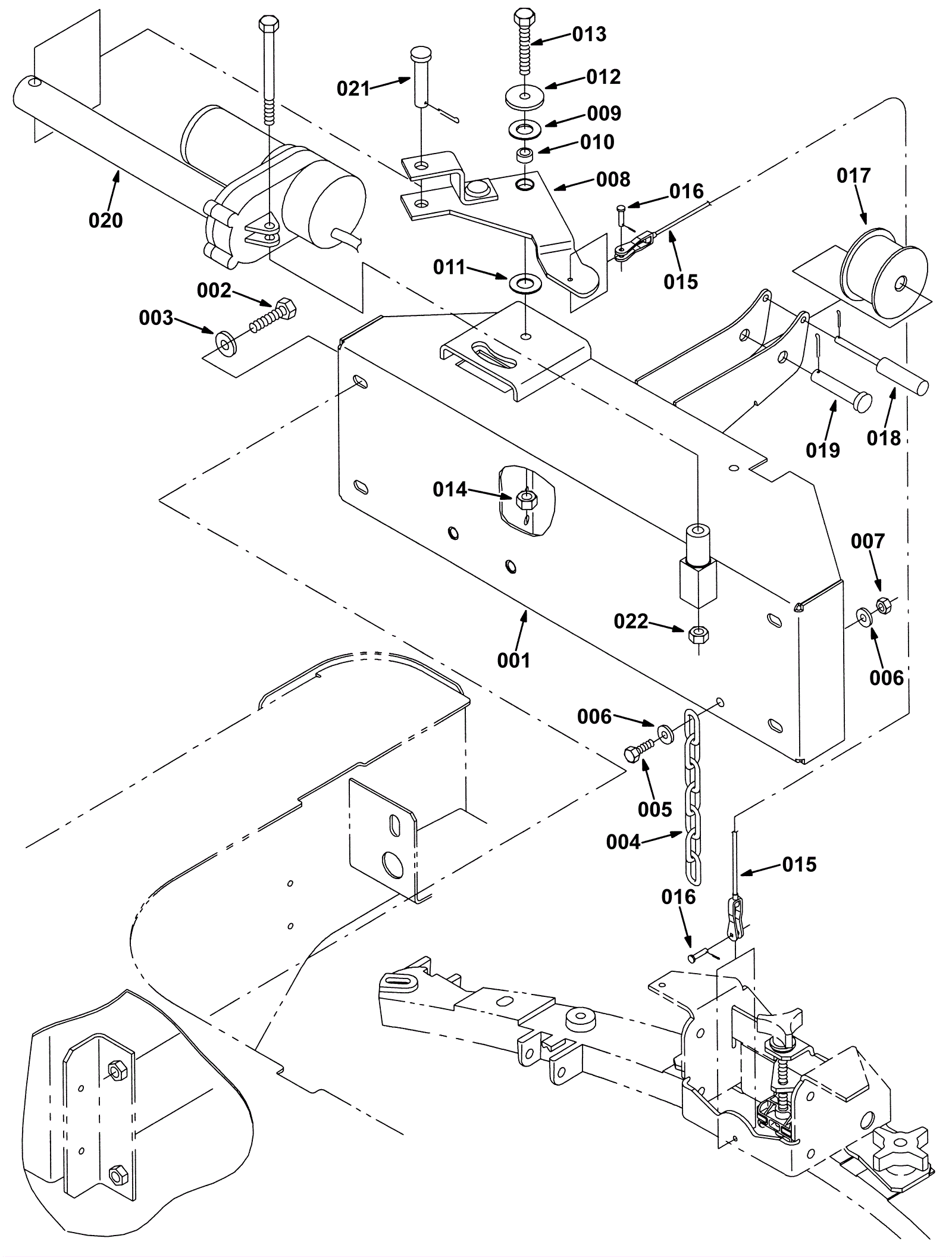

7200SS Rear Squeegee Lift Group

#PartDescriptionPriceReqNotesAvailability
001a 175-9596 Squeegee mounting channel weldment $870.10 1 up to serial number 006071 usually ships 1-5 days
001b 175-9597 Squeegee mounting channel weldment $1,961.30 1 serial number 006072 and above usually ships 1-5 days
001c 175-9598 CHANNEL WLDT, MTG, SQGE (Tennant Industrial) $760.49 1 usually ships 1-5 days
002 999-0775 Screw M10-1.5 x 40mm hex head stainless steel $3.65 4 ships same day
003 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
004 175-5303 Coil link chain $7.70 1 usually ships 1-5 days
005 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
006 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
007 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
008 175-9599 Rear squeegee lift bellcrank weldment $257.73 1 usually ships 1-5 days
009 175-3347 Washer .61 thrust $5.50 1 ships same day
010 175-0796 Sleeve $18.70 1 usually ships 5-16 days
011 175-0784 Thrust bearing $11.00 1 usually ships 5-16 days
012 175-0797 Washer flat $4.88 1 usually ships 1-5 days
013 999-1429 Bolt M10-1.5 x 60mm hex head stainless steel $4.50 1 ships same day
014 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
015 175-9600 Squeegee cable $86.68 1 usually ships 5-16 days
016 175-0801 Clevis pin $4.09 2 usually ships 5-16 days
017 175-0798 DRUM, CABLE, LIFT (Tennant Industrial) $21.34 1 usually ships 5-16 days
018 175-9601 Clevis pin $40.15 1 usually ships 1-5 days
019 175-0716 Clevis pin $4.88 1 usually ships 5-16 days
020 175-9602 36 volt actuator $699.82 1 usually ships 5-16 days
021 175-9603 Clevis pin $4.88 1 usually ships 5-16 days
022 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
