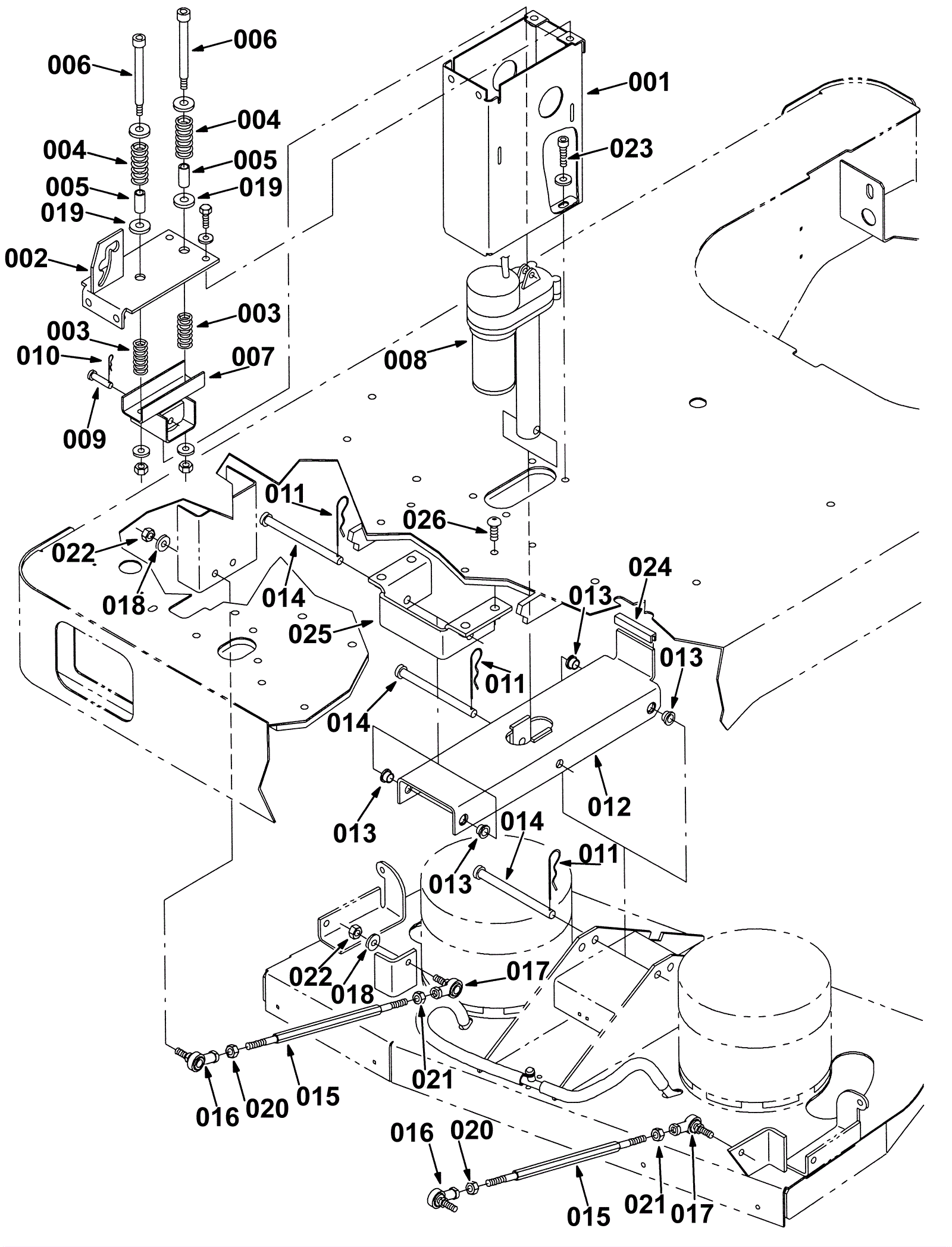

7200SS Scrub Head Lift Group

#PartDescriptionPriceReqNotesAvailability
001 175-9514 Actuator support bracket weldment $186.67 1 usually ships 1-5 days
002 175-9515 Spring mounting and seat prop weldment $144.21 1 usually ships 1-5 days
003 175-3316 Compression spring $5.83 2 usually ships 1-5 days
004 175-3315 Compression spring $8.25 2 usually ships 1-5 days
005 175-2442 Sleeve $7.37 2 usually ships 5-16 days
006 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $21.45 2 usually ships 1-5 days
007 175-9516 Spring mounting and actuator channel weldment (TNT IND) $155.70 1 usually ships 1-5 days
008 175-3313 Actuator $489.39 1 usually ships 5-16 days
009 175-2592 Clevis Pin 0.37 D X 1.75 L $4.88 1 ships same day
010 175-2113 Cotter pin $3.04 1 ships same day
011 175-2106 Cotter hair pin $4.09 3 ships same day
012 175-9517 Tool lift channel weldment $226.93 1 usually ships 1-5 days
013 175-3335 Flanged bushing $15.73 4 usually ships 1-5 days
014 175-5332 Clevis pin 1/2 x 6 $9.35 3 usually ships 5-16 days
015 175-9518 Rod 3/8-24 x 5 threaded hex $91.19 2 usually ships 5-16 days
016 175-3321 Rod end right side $42.68 2 usually ships 5-16 days
017 175-3320 Rod end left side $42.68 2 usually ships 5-16 days
018 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
019 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
020 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
021 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 ships same day
022 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 4 ships same day
023 175-9519 Screw M10-1.5 x 35 socket head $4.88 4 usually ships 1-5 days
024 175-3336 Rubber trim molding $17.93 1 usually ships 1-5 days
025 175-9520 BRACKET, LIFT, MTG (Tennant Industrial) $100.02 1 usually ships 1-5 days
026 175-9521 SCREW, BTN, M10 X 1.5 X 30, 10.9 NL (Tennant Industrial) $5.17 4 usually ships 1-5 days
