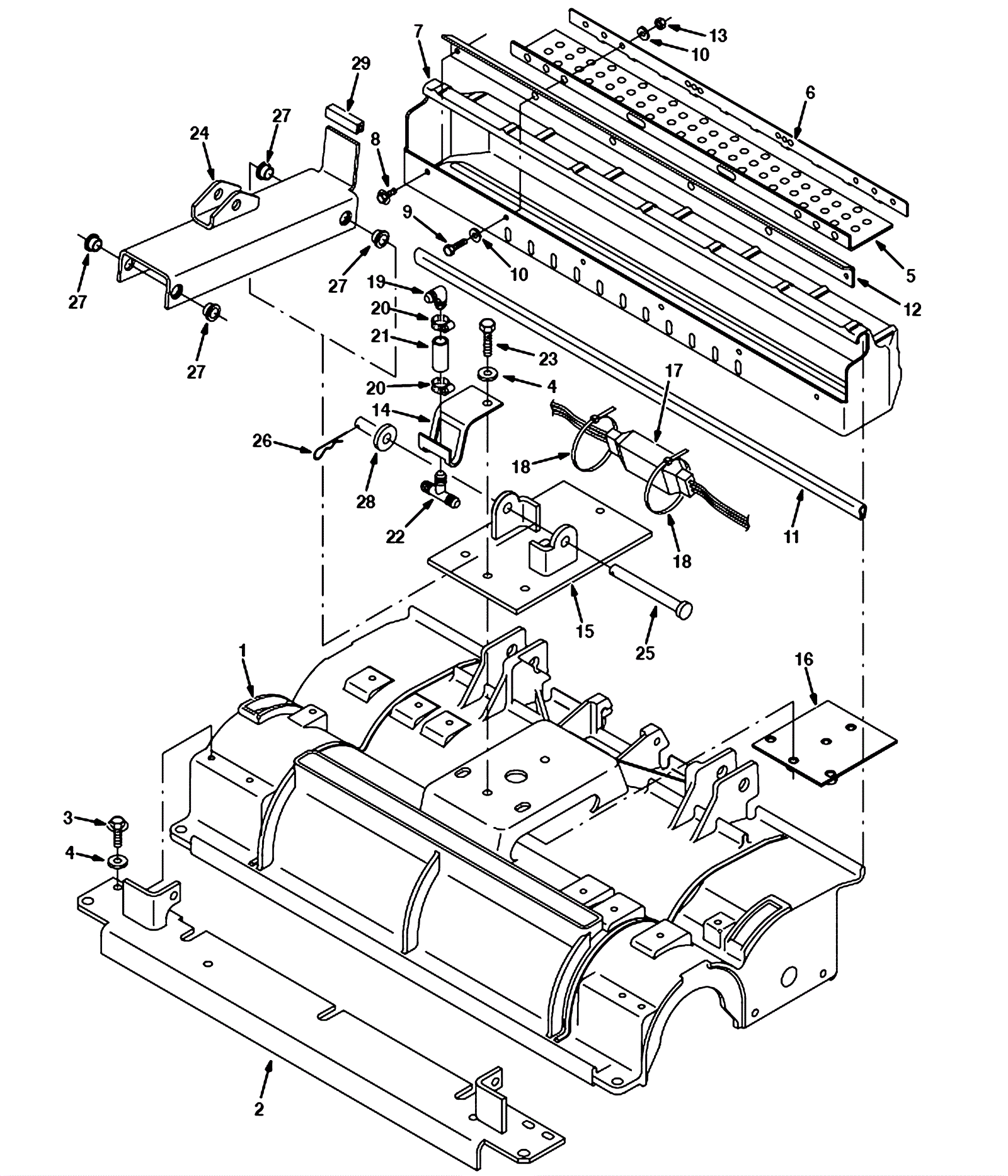

EZ RIDER Scrub Head Frame Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 275-1211 28 inch (700mm) cylindrical housing $1,926.76 1 usually ships 13-17 days
2 175-5396 Lift tool weldment 28 inch $312.62 1 usually ships 13-17 days
3 175-2888 Bolt M8-1 1/4 x 25mm hex head $5.28 4 usually ships 13-17 days
4a 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
4b 175-2514 28 inch debris tray kit $424.38 1 usually ships 13-17 days
5 175-2517 Skirt $38.17 1 usually ships 13-17 days
6 175-2399 Debris tray skirt $47.41 1 usually ships 13-17 days
7 175-2515 28 inch debris tray $291.28 1 usually ships 1-5 days
8 175-3298 Bolt M6-1 x 12mm hex head $4.49 2 ships same day
9 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
11 175-2519 Channel $29.81 1 usually ships 13-17 days
12 175-2516 28 inch debris tray lip $49.83 1 usually ships 1-5 days
13 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
14 175-2521 Hose guide bracket $24.86 1 usually ships 13-17 days
15 175-5397 Cylce lift tool plate weldment $131.01 1 usually ships 1-5 days
16 175-5398 Tool lift mounting plate $39.05 1 usually ships 13-17 days
17 175-2510 Cylindrical head wiring harness $151.14 1 usually ships 13-17 days
18 175-2202 Nylon wire tie $4.49 2 ships same day
19 175-5233 Plastic fitting $8.14 1 usually ships 13-17 days
20 175-6081 Hose clamp $4.84 2 ships same day
21 175-5399 Clear pvc hose 1/2 x 11/16 x 1 1/2 $5.28 1 usually ships 13-17 days
22 175-3329 Plastic tee fitting $6.49 1 usually ships 13-17 days
23 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 4 ships same day
24 275-2444 Lift weldment $120.89 1 usually ships 1-5 days
25 175-5401 Clevis pin 1/2 x 4 1/2 $5.50 1 usually ships 13-17 days
26 175-5402 Cotter hair pin $8.80 1 usually ships 1-5 days
27 175-3335 Flanged bushing $16.94 4 usually ships 1-5 days
28 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
29 175-3336 Rubber trim molding $19.25 1 usually ships 1-5 days
