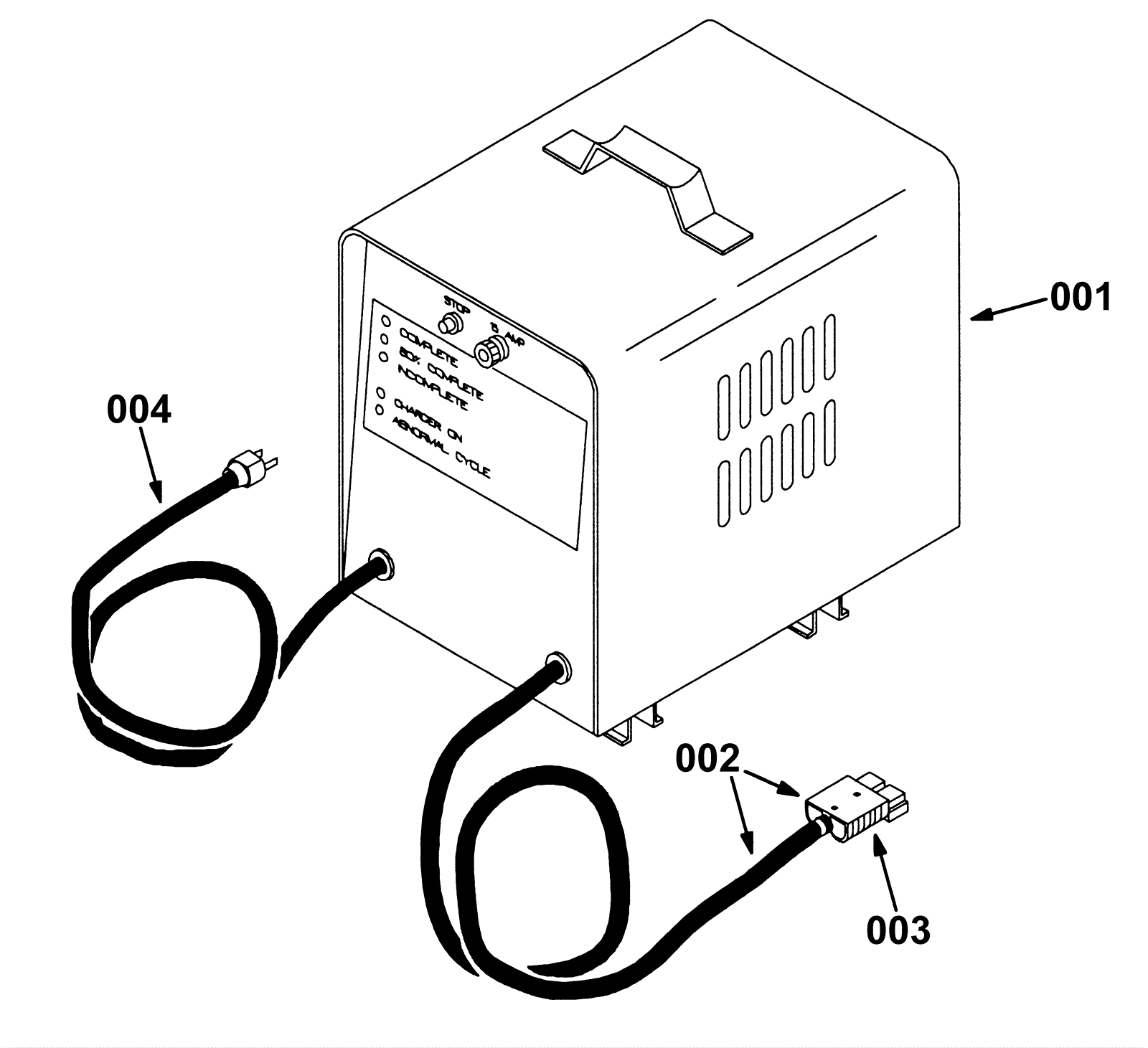

7200SS Battery Charger Breakdown, 60Hz, 120V (335Ah batteries),223683

#PartDescriptionPriceReqNotesAvailability
001 175-9757 Charger 36VDC 30A 120VAC 1PH 60Hz (OBSOLETE) $918.78 1 includes 002-004 and all N/S usually ships 13-17 days
002 275-0211 DC cord assembly $190.19 1 includes 003 usually ships 1-5 days
003 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 usually ships 13-17 days
004 275-0212 AC cord assembly $54.78 1 usually ships 1-5 days
N/S 175-9444 Circuit breaker $70.51 1 usually ships 1-5 days
N/S 175-9447 Stop switch $25.52 1 usually ships 1-5 days
N/S 275-0208 Battery charger wire strain relief $15.40 1 usually ships 1-5 days
N/S 275-0209 Battery charger wire strain relief $8.69 1 usually ships 1-5 days
N/S 275-0210 Battery charger varistor $50.05 1 usually ships 1-5 days
N/S 275-0213 Circuit breaker $56.76 1 usually ships 1-5 days
N/S 275-0214 Battery charger controller $390.61 1 usually ships 1-5 days
N/S 275-0215 Rectifier assembly $171.82 2 usually ships 1-5 days
