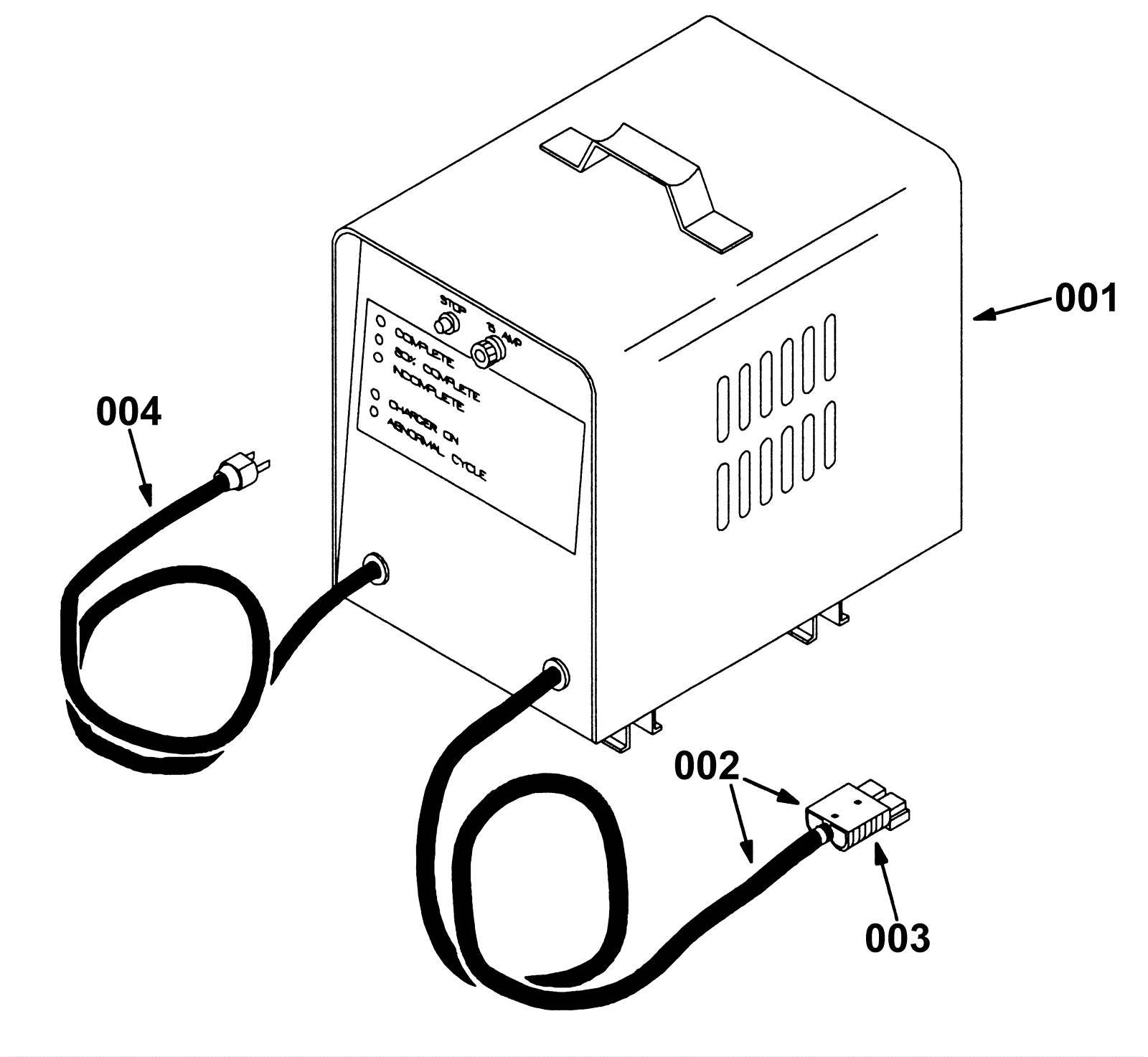

7200SS Battery Charger Breakdown, 60Hz, 120V (235Ah batteries),223681

#PartDescriptionPriceReqNotesAvailability
001 175-9756 Charger 36VDC 20A 120VAC 1PH 60Hz $849.59 1 includes 002-004 and all N/S usually ships 1-5 days
002 275-0203 DC cord assembly $128.04 1 includes 003 usually ships 1-5 days
003 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
004 275-0204 AC cord assembly $88.55 1 usually ships 1-5 days
N/S 175-9444 Circuit breaker $65.89 1 usually ships 1-5 days
N/S 175-9446 Rectifier 20 amp $53.02 2 usually ships 1-5 days
N/S 175-9447 Stop switch $23.76 1 usually ships 1-5 days
N/S 275-0205 15 amp circuit breaker $49.83 1 usually ships 1-5 days
N/S 275-0206 Battery charger circuit control $339.46 1 usually ships 1-5 days
N/S 275-0207 Rectifier $105.93 2 usually ships 1-5 days
N/S 275-0208 Battery charger wire strain relief $14.30 1 usually ships 1-5 days
N/S 275-0209 Battery charger wire strain relief $8.69 1 usually ships 1-5 days
N/S 275-0210 Battery charger varistor $46.75 1 usually ships 1-5 days
