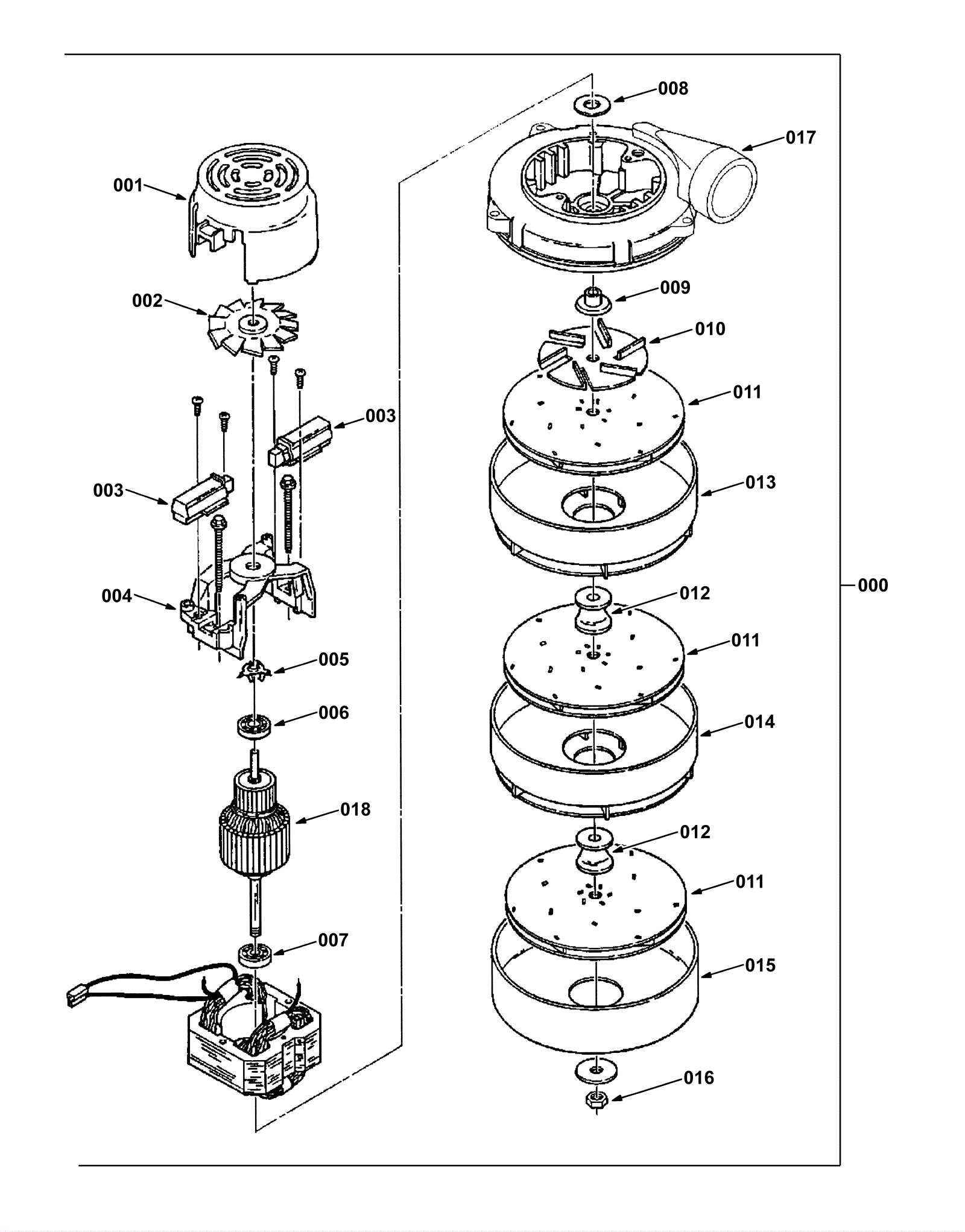

7200SS Electric Motor Breakdown, 398520

#PartDescriptionPriceReqNotesAvailability
000 991-1214 36V 3 stage vacuum motor tangential kit $205.65 1 includes 001-018 and all N/S usually ships 3-26 days
001 175-5275 Housing $22.00 1 usually ships 5-16 days
002 175-5276 Fan $5.50 1 usually ships 5-16 days
003 991-1221 Carbon brush without plastic cover (pkg of 2) $14.85 2 usually ships 5-16 days
004 175-5278 Commuicator bracket (OBSOLETE) $7.05 1 usually ships 5-16 days
005 175-5279 Spring $3.70 1 usually ships 1-5 days
006 275-0184 Bearing $14.63 1 usually ships 1-5 days
007 175-5281 Bearing $34.43 1 usually ships 5-16 days
008 175-5282 Washer neoprene $5.15 1 usually ships 1-5 days
009 175-5283 Spacer $8.69 1 usually ships 1-5 days
010 175-5284 Fan $6.60 1 usually ships 1-5 days
011 175-5285 Vacuum fan $13.97 3 usually ships 5-16 days
012 175-5286 Spacer $8.03 2 usually ships 1-5 days
013 175-5287 Stationary fan $25.30 1 usually ships 1-5 days
014 175-5288 Stationary fan $23.87 1 usually ships 1-5 days
015 175-5289 Shell $24.86 1 usually ships 5-16 days
016 175-5290 Nut $5.15 1 usually ships 1-5 days
017 175-5291 Fan end bracket $104.72 1 usually ships 1-5 days
018 175-5292 Armature $222.09 1 usually ships 1-5 days
N/S 164-0881 Vacuum motor gasket $13.42 1 ships same day
N/S 175-5293 Female connector $10.23 1 ships same day
N/S 175-5294 Female terminal $4.09 2 usually ships 1-5 days
