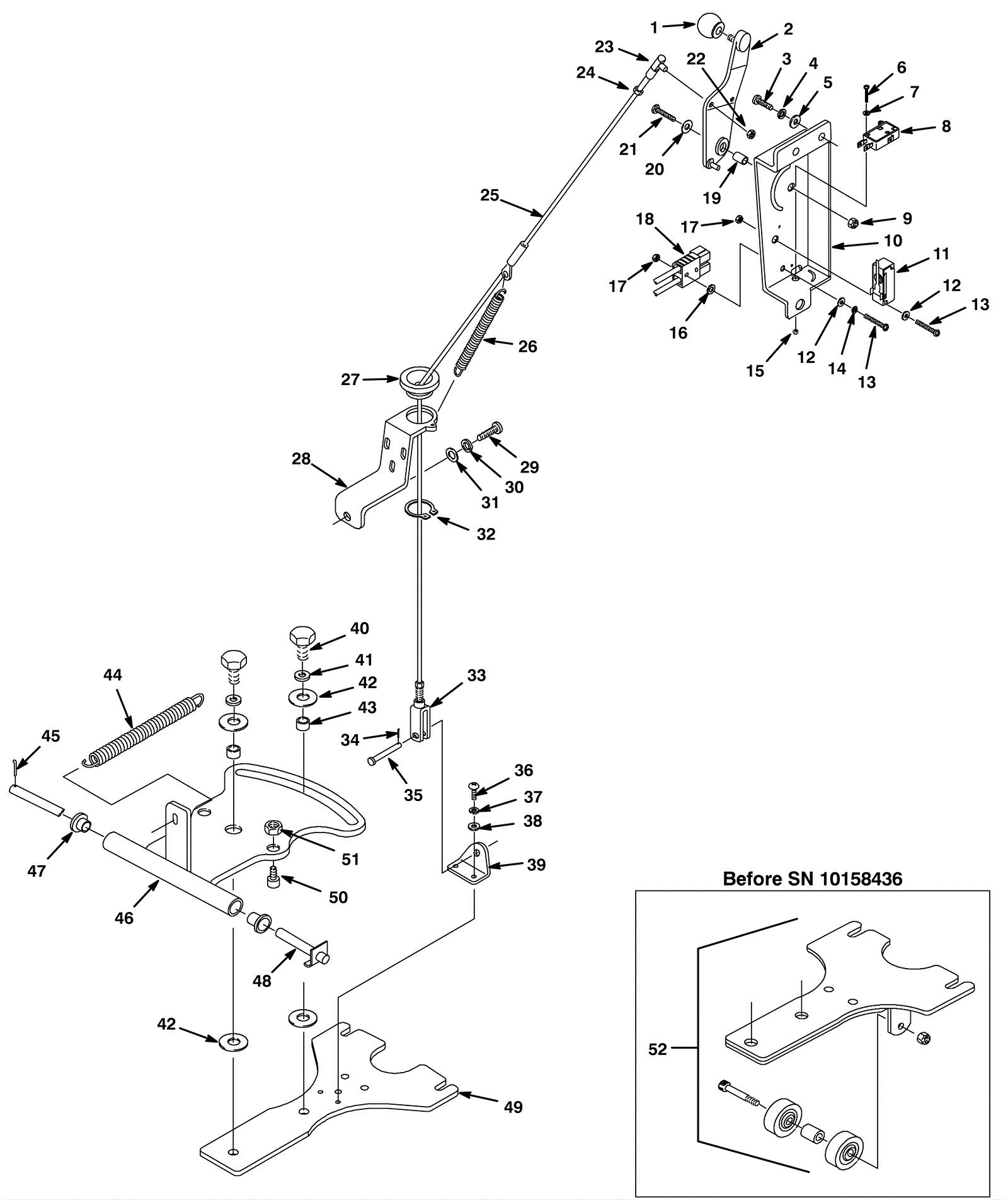

5400 Squeegee Control Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-5879 Squeegee lever knob (OBSOLETE) $26.07 1 usually ships 10-16 days
002 175-8730 Squeegee lever $171.05 1 usually ships 1-5 days
003 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
004 999-1053 Washer 5/16 internal star lock stainless steel $0.99 3 ships same day
005 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
006 175-1333 Screw M3-.5 x 20mm hex head $4.88 2 usually ships 10-16 days
007 999-1553 Washer M3.5 flat zinc plated $0.99 2 ships same day
008 175-1199 Snap switch $21.34 1 ships same day
009 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
010 175-8731 Squeegee lever bracket $59.95 1 usually ships 1-5 days
011 175-6532 Snap switch $14.74 1 ships same day
012 999-1215 Washer #6 SAE flat zinc plated $0.99 4 ships same day
013 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 4 ships same day
014 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
015 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
016 999-0393 Washer 3/16 flat aluminum $0.99 2 ships same day
017 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 4 ships same day
018 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 ships same day
019 175-5070 Sleeved bearing $4.88 1 ships same day
020 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
021 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 1 ships same day
022 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 1 ships same day
023 175-8732 Ball joint $20.24 1 usually ships 10-16 days
024 999-0718 Nut 1/4-28 hex jam zinc plated $0.99 1 ships same day
025 175-8733 Squeegee lift cable $100.21 1 usually ships 10-16 days
026 175-8734 Squeegee lever spring $19.36 1 usually ships 10-16 days
027 175-8735 Cable bushing $6.05 1 ships same day
028 175-8736 Cable guide bracket (OBSOLETE) $23.32 1 usually ships 10-16 days
029 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 3 ships same day
030 999-1117 Washer M6 split lock stainless steel $0.99 3 ships same day
031 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
032 175-3008 Retaining ring $4.09 1 ships same day
033 175-8737 Adjusment yoke $49.06 1 usually ships 10-16 days
034 175-3272 Cotter pin $3.04 1 usually ships 10-16 days
035 175-8738 Clevis pin $4.88 1 usually ships 10-16 days
036 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
037 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
038 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
039 175-8739 Squeegee cable bracket $57.64 1 usually ships 1-5 days
040 999-0561 Bolt 1/2-13 x 1 hex head stainless steel $3.28 2 ships same day
041 999-0126 Washer 1/2 split lock $1.28 2 ships same day
042 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
043 175-2743 Sleeved bushing $4.75 2 ships same day
044 175-2748 Spring $17.05 1 ships same day
045 175-5080 Cotter pin $4.09 1 ships same day
046 275-5822 Squeegee pivot bracket $406.56 1 Includes 047 usually ships 10-16 days
047 175-8740 Flanged bearing $6.38 2 ships same day
048 175-8741 Headless pin $47.85 1 usually ships 10-16 days
049 175-8742 Squeegee mount bracket $130.02 1 ships same day
050 175-8743 Screw M10 x 1 1/2 x 20 socket head cap $8.03 2 usually ships 1-5 days
051 999-1550 Nut M10-1.5 nylon insert lock $0.99 2 usually ships 1-5 days
052 275-4796 Squeegee caster kit $189.86 1 (squeegee mounting bracket replaced by this caster wheel kit) usually ships 10-16 days
