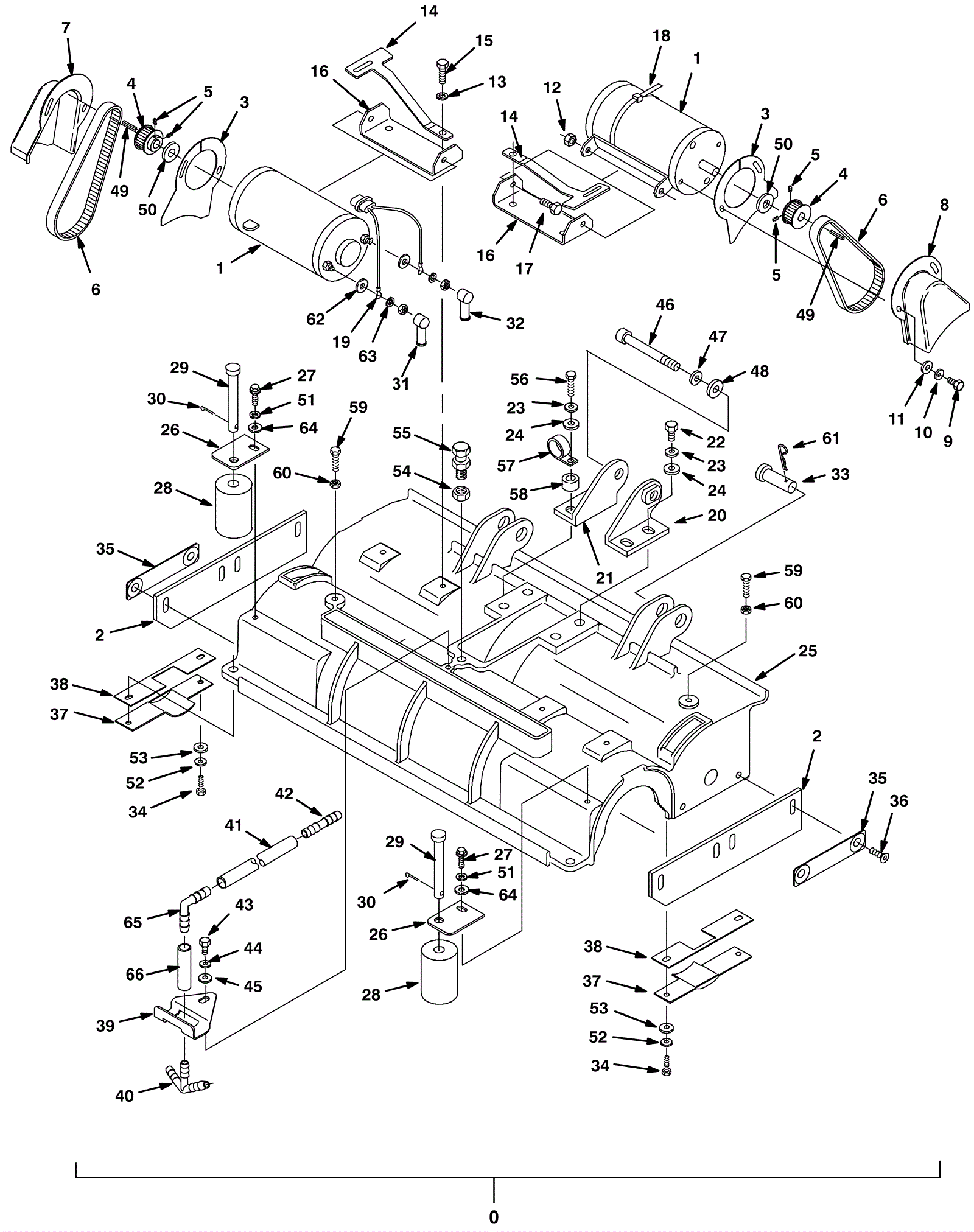

Cylindrical Brush Scrub Head Assembly - 24 inch

#PartDescription ReqNotesAvailability
000 175-8672 Cylindrical scrubhead kit (OBSOLETE) 1 Includes 001 to 066
001a 275-5305 24V brush motor 2
001b 175-8674 Carbon brush (pkg of 4) 2
001c 175-8675 Carbon brush spring 8
002 175-8687 Side cylinder scrubhead skirt (OBSOLETE) 2
003 175-2489 Belt shield 2
004 775-0474 Drive sprocket 2
005 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 4
006 175-2034 Cogged drive belt 2
007 175-2490 Right belt guard 1
008 175-2491 Left belt guard 1
009 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
010 175-6496 Washer lock (OBSOLETE) 4
011 999-0016 Washer 1/4 flat plain finish 4
012 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
013 999-1053 Washer 5/16 internal star lock stainless steel 4
014 175-2482 Door spring 2
015 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
016 175-8676 Motor mounting bracket 2
017 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
018 175-7795 Cable tie 4
019 175-8677 Brush motor harness 2
020 175-8678 Left hand cylinder head bracket 1
021 175-8679 Right hand cylinder head bracket 1
022 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
023 999-1053 Washer 5/16 internal star lock stainless steel 4
024 999-0024 Washer 5/16 flat stainless steel 4
025 175-8680 Cylinder brush scrubber head (OBSOLETE) 1
026 175-2513 Roller mounting bracket 2
027 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
028 175-2512 Bumper roller 2
029 175-2116 Clevis pin 2
030 175-5080 Cotter pin 2
031 175-8681 Terminal boot (red) (OBSOLETE) 2
032 175-8682 Terminal boot (black) 2
033 175-2105 Clevis pin 2
034 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
035 175-2481 Support bar 4
036 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 8
037 175-2487 Shield bracket 2
038 175-2488 Shield gasket 2
039 175-8683 T-fitting scrubberhead bracket 1
040 175-2223 Plastic tee fitting 1
041 175-8684 15 inch reinforced hose 1
042 175-1970 Union connector barb 1/2 x 1/2 1
043 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
044 999-1053 Washer 5/16 internal star lock stainless steel 1
045 999-0024 Washer 5/16 flat stainless steel 1
046 175-8685 Screw 3/8-16 x 2 3/4 1
047 999-9099 Washer M10 flat stainless steel 1
048 999-0032 Washer 3/8 USS flat plain finish 1
049 175-4202 Square keyway 2
050 999-1156 Washer M12-.7 nylon 2
051 999-1053 Washer 5/16 internal star lock stainless steel 2
052 175-6496 Washer lock (OBSOLETE) 4
053 999-0016 Washer 1/4 flat plain finish 4
054 999-0624 Nut 5/8-11 heavy hex plain finish 1
055 175-8665 Stud adjuster 1
056 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 1
057 175-3005 P clamp 1
058 175-1452 Spacer 1
059 999-1297 Screw M8 x 50mm hex head stainless steel 2
060 999-1424 Nut M8-1.25 hex stainless steel 2
061 175-2106 Cotter hair pin 2
062 999-0123 Washer 1/4 SAE flat zinc plated 4
063 999-1053 Washer 5/16 internal star lock stainless steel 4
064 999-0024 Washer 5/16 flat stainless steel 2
065 175-5642 90 degree nylon elbow fitting 1
066 175-5641 Hose 1
