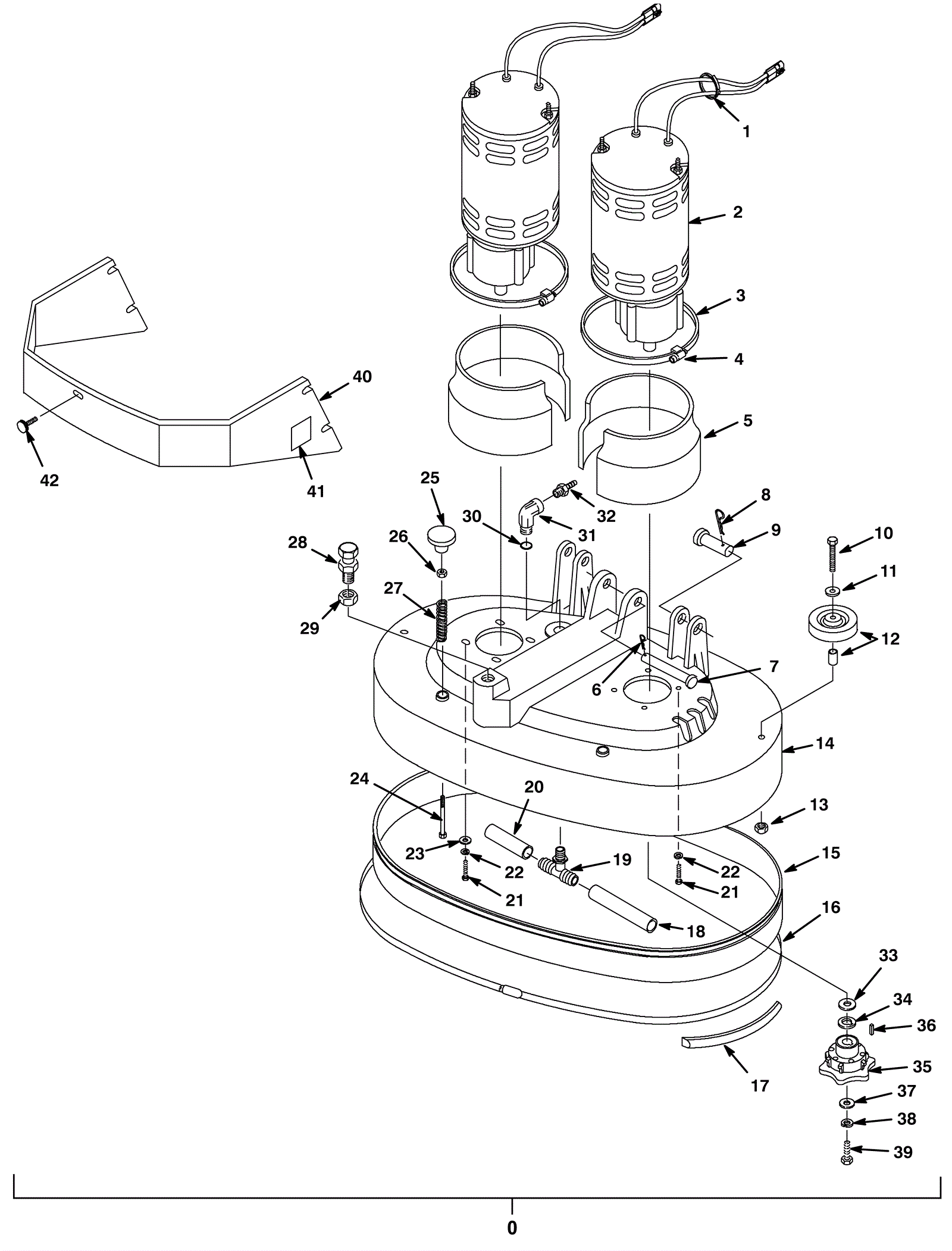

5400 Disk Scrub Head Assembly - 24 inch

#PartDescriptionPriceReqNotesAvailability
000 175-8657 Scrubhead disk kit (OBSOLETE) $2,160.20 1 (includes 001 to 042) usually ships 1-5 days
001 175-0921 Wire tie $3.60 2 usually ships 5-16 days
002a 175-5451 24V brush motor assembly $1,681.40 2 (includes 002b, 002c, 002d, 002e, 002f) ships same day
002b 175-3028 Brush card assembly $284.90 2 usually ships 5-16 days
002c 175-2600 Carbon brush $30.80 4 ships same day
002d 175-0957 Brush bearing $11.80 1 usually ships 5-16 days
002e 175-5353 Bearing $10.58 1 usually ships 5-16 days
002f 175-7927 Gearbox $886.50 1 usually ships 1-5 days
003 175-5477 Stainless steel band $35.90 2 usually ships 5-16 days
004 175-1428 Adjustment band fastener $22.70 2 ships same day
005 175-5478 Water deflector shroud $399.60 2 usually ships 1-5 days
006 175-4331 Cotter hair pin $3.60 1 ships same day
007 175-8658 Clevis pin $17.12 1 ships same day
008 175-2106 Cotter hair pin $3.00 2 ships same day
009 175-2105 Clevis pin $6.00 2 ships same day
010 999-1426 Screw M8-1.25 x 45mm hex head stainless steel $3.04 2 ships same day
011 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
012 175-0117 Guide wheel with bushing $8.80 2 ships same day
013 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
014 175-8659 Disc scrub head casting $679.40 1 usually ships 1-5 days
015 175-8660 Scrub head skirt (OBSOLETE) $34.90 1 usually ships 5-16 days
016a 175-1429 Skirt strap assembly $33.10 1 (includes 016b) ships same day
016b 175-1428 Adjustment band fastener $22.70 1 ships same day
017 175-8661 Skid strip $27.90 1 usually ships 5-16 days
018 175-8662 Hose 3/8 x 7 3/4 inch $13.00 1 ships same day
019 175-8663 Fitting 1/8 X 3/8 $11.50 1 usually ships 5-16 days
020 175-3699 3/8id x 5/8od x 2 - 3/4 inch hose $13.80 1 usually ships 5-16 days
021 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 8 ships same day
022 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
023 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
024 175-8664 Screw 3/8-16 x 4 1/2 hex head cap $13.80 2 usually ships 1-5 days
025 175-7017 Round knob $21.50 2 usually ships 5-16 days
026 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 2 ships same day
027 175-7018 Compression spring $4.50 2 ships same day
028 175-8665 Stud adjuster $224.60 1 usually ships 1-5 days
029 999-0624 Nut 5/8-11 heavy hex plain finish $0.99 1 usually ships 11-24 days
030 175-8666 O-ring $21.10 1 usually ships 1-5 days
031 175-8667 90 Degree fitting $29.80 1 usually ships 1-5 days
032 175-8668 Plastic fitting $5.30 1 usually ships 5-16 days
033 175-0406 Washer.77 flate stainless steel $3.60 2 usually ships 5-16 days
034 175-1437 Spacer $8.60 2 ships same day
035 175-7021 Brush drive hub $145.90 2 ships same day
036 175-4700 Square keyway $3.90 2 usually ships 5-16 days
037 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
038 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
039 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
040 175-4217 Scrub head shroud $189.60 1 usually ships 5-16 days
041 175-1238 Moving parts decal $4.80 2 ships same day
042 175-3718 Knob $3.60 5 ships same day
