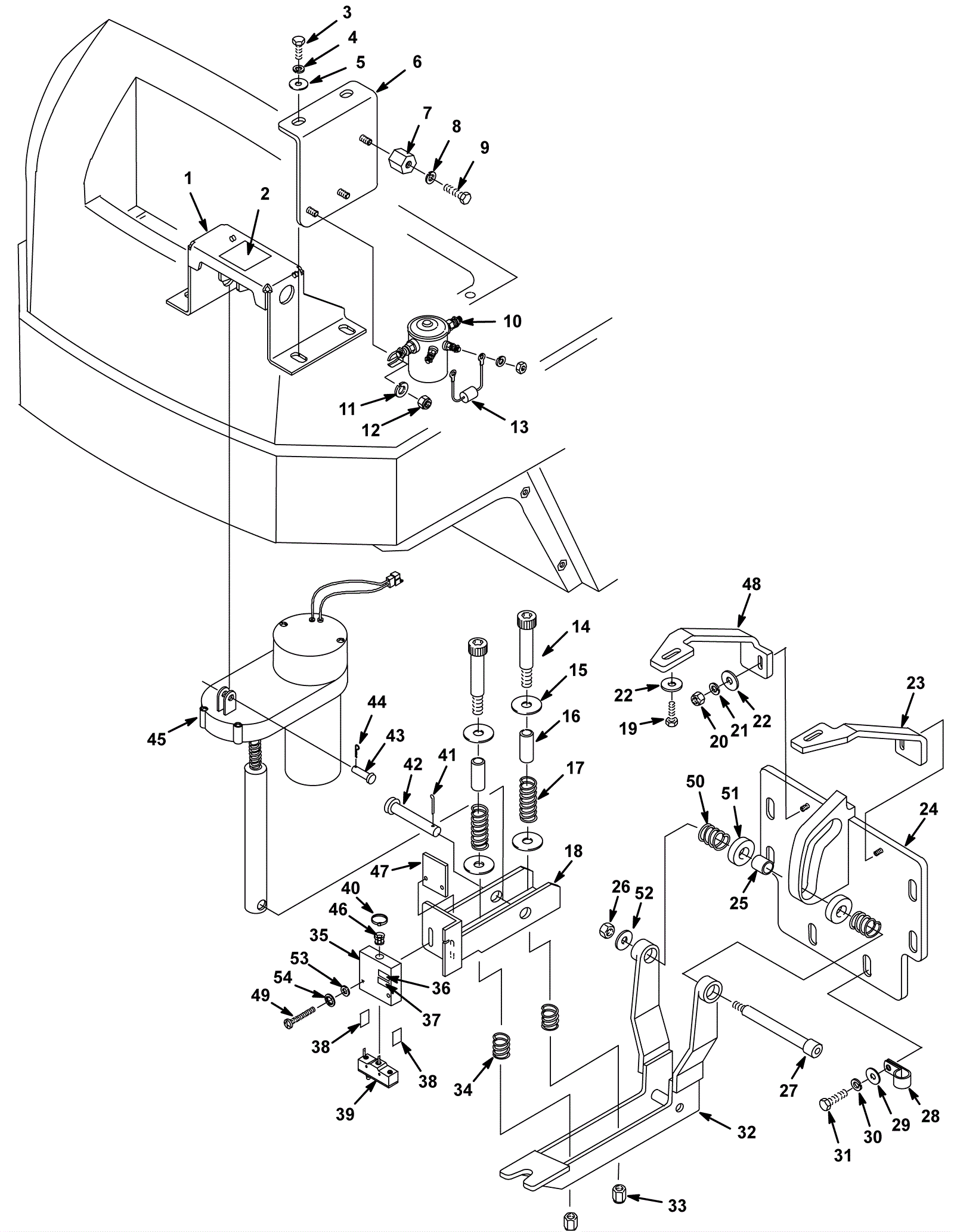

5400 Scrub Head Actuator Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-8644 Actuator mounting bracket $108.80 1 usually ships 1-5 days
002 175-4351 General hazard decal $2.02 1 ships same day
003 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
004 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
005 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
006 175-4352 Contactor bracket $34.10 1 usually ships 1-5 days
007 175-3226 Insulated stand off $8.50 1 ships same day
008 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
009 175-0932 Screw 1/4-20 x 5/8 hex head $3.30 1 usually ships 5-16 days
010 175-2023 24V solenoid contactor $56.50 1 ships same day
011 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
012 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
013 175-2757 Diode with ring terminals (small) $10.10 1 usually ships 5-16 days
014 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $19.10 2 usually ships 1-5 days
015 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
016 175-8645 Sleeve 1/2 x 5/8 x 1 5/16 (OBSOLETE) $2.40 2 usually ships 1-5 days
017 175-2199 Compression spring $4.50 2 usually ships 5-16 days
018 175-8646 Scrubhead spring bracket $39.65 1 usually ships 1-5 days
019 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
020 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
021 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
022 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
023 175-8647 Left roller support bracket $26.20 1 usually ships 1-5 days
024 175-4013 Bracket $196.70 1 usually ships 1-5 days
025 175-4359 Linkage roller $21.30 1 ships same day
026 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
027 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $19.10 1 usually ships 1-5 days
028 175-3005 P clamp $3.10 1 usually ships 5-16 days
029 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
030 999-1053 Washer 5/16 internal star lock stainless steel $0.99 6 ships same day
031 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 6 ships same day
032 175-8648 Roller scrubhead bracket $190.90 1 usually ships 1-5 days
033 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
034 175-2443 2 1/2 inch compression spring $4.50 2 usually ships 5-16 days
035 175-8649 Switch box (OBSOLETE) $55.50 1 (includes 036, 037, 038) usually ships 1-5 days
036 175-8650 Switch cylinder head decal (OBSOLETE) $13.80 1 usually ships 1-5 days
037 175-8651 Switch disk head decal (OBSOLETE) $13.80 1 usually ships 1-5 days
038 175-8652 Barrier switch decal (OBSOLETE) $2.04 2 usually ships 1-5 days
039 175-8653 Moment switch (OBSOLETE) $62.50 1 usually ships 1-5 days
040 175-0921 Wire tie $3.60 1 usually ships 5-16 days
041 175-5080 Cotter pin $3.00 1 ships same day
042 175-5083 Clevis pin $5.00 1 usually ships 1-5 days
043 175-2111 Clevis pin $3.50 1 ships same day
044 175-4331 Cotter hair pin $3.60 1 ships same day
045 175-8654 Actuator $378.50 1 ships same day
046 175-8655 Strain relief bushing (OBSOLETE) $1.44 1 usually ships 1-5 days
047 N/A Not available Call for price 1 (Bracket plate) usually ships 3-26 days
048 175-4357 Bracket $23.20 1 usually ships 1-5 days
049 999-0974 Screw 6-32 x 1 1/4 pan head phillips stainless steel $7.92 2 ships same day
050 175-4371 Compression spring $1.80 2 usually ships 5-16 days
051 175-4358 Washer 1 1/2 thrust $12.50 2 usually ships 5-16 days
052 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
053 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
054 999-0364 Washer #6 internal star lock zinc plated $0.99 2 ships same day
