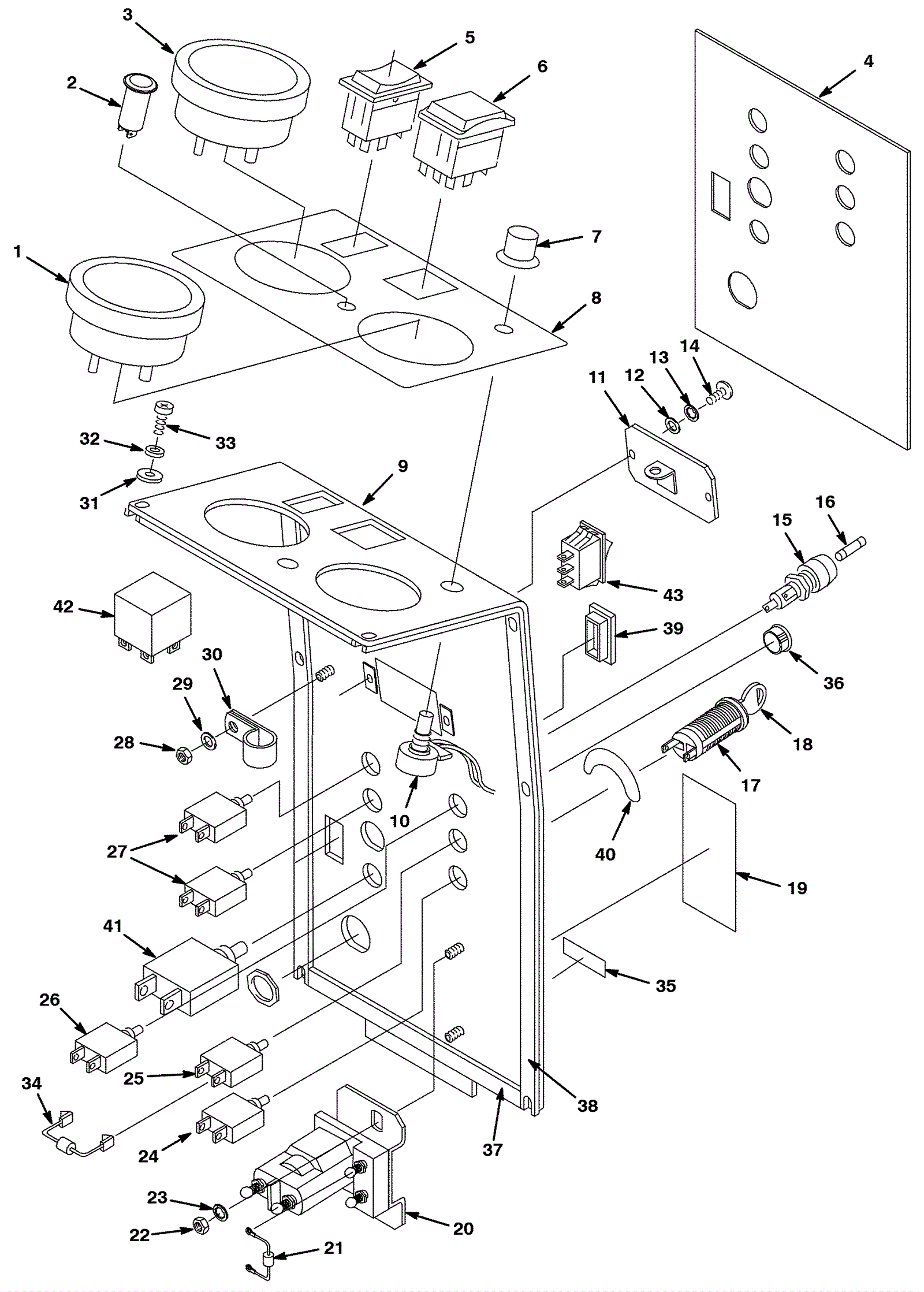

5400 Console Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4282 Battery meter $69.19 1 usually ships 10-16 days
002 175-2849 Indicator light $14.08 1 usually ships 10-16 days
003 175-8629 Brush pressure gauge $87.12 1 usually ships 10-16 days
004 175-8636 Fast switch label $34.76 1 usually ships 1-5 days
005 175-2847 Rocker switch $12.32 1 usually ships 10-16 days
006 175-8630 Brush pressure switch $27.28 1 ships same day
007 175-4281 Potentiometer knob $14.08 1 usually ships 10-16 days
008 175-8631 Dash decal (OBSOLETE) $11.00 1 usually ships 1-5 days
009 175-8632 Switch panel $85.47 1 usually ships 10-16 days
010 175-5450 Speed control resistor $55.33 1 usually ships 10-16 days
011 175-8633 Switch cover plate $33.29 1 usually ships 1-5 days
012 175-3687 Washer m5 x 1 flat $4.88 2 usually ships 1-5 days
013 999-9132 Washer M5 split lock stainless steel $0.99 2 ships same day
014 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 2 ships same day
015 175-5010 Fuse holder $10.34 1 usually ships 10-16 days
016 175-5447 2amp fast blow fuse (OBSOLETE) $8.47 1 usually ships 10-16 days
017 175-4287 Key switch assembly $143.33 1 (includes 18) ships same day
018 175-0185 Double sided key (steel) $15.73 1 ships same day
019 175-8634 Circuit breakers decal $21.78 1 usually ships 1-5 days
020 175-4293 24V relay $60.39 1 usually ships 10-16 days
021 175-2757 Diode with ring terminals (small) $11.44 1 usually ships 10-16 days
022 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
023 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
024 175-4296 25amp resettable circuit breaker $50.71 1 usually ships 10-16 days
025a 175-1186 15amp circuit breaker $18.37 1 ships same day
025b 991-8539 15amp circuit breaker $7.74 1 ships same day
026a 175-3132 10amp brush circuit breaker (OBSOLETE) $28.49 1 usually ships 10-16 days
026a 991-8538 10amp circuit breaker $8.03 1 (NON-OEM) ships same day
027 175-5705 30amp circuit breaker $19.25 2 ships same day
028 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
029 175-3687 Washer m5 x 1 flat $4.88 1 usually ships 1-5 days
030 999-1654 P clamp $0.99 1 ships same day
031 999-1652 Washer M4.3 flat $1.93 8 ships same day
032 999-1083 Washer #8 internal star lock stainless steel $0.99 8 ships same day
033 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 8 ships same day
034 175-4295 Terminal diode $17.60 1 usually ships 10-16 days
035 N/A Not available Call for price 1 Decal usually ships 3-26 days
036 175-1410 Dome plug $3.96 1 usually ships 10-16 days
037 175-4292 Console gasket $18.15 2 ships same day
038 175-4291 Console gasket $4.09 2 usually ships 10-16 days
039 175-2698 Switch plug $6.05 1 ships same day
040 175-4288 Key switch decal $14.30 1 usually ships 1-5 days
041a 175-3132 10amp brush circuit breaker (OBSOLETE) $28.49 1 usually ships 10-16 days
041b 991-8538 10amp circuit breaker $8.03 1 (NON-OEM) ships same day
042 175-8635 40amp relay $29.26 1 ships same day
043 175-7871 Rocker switch $17.60 1 usually ships 10-16 days
