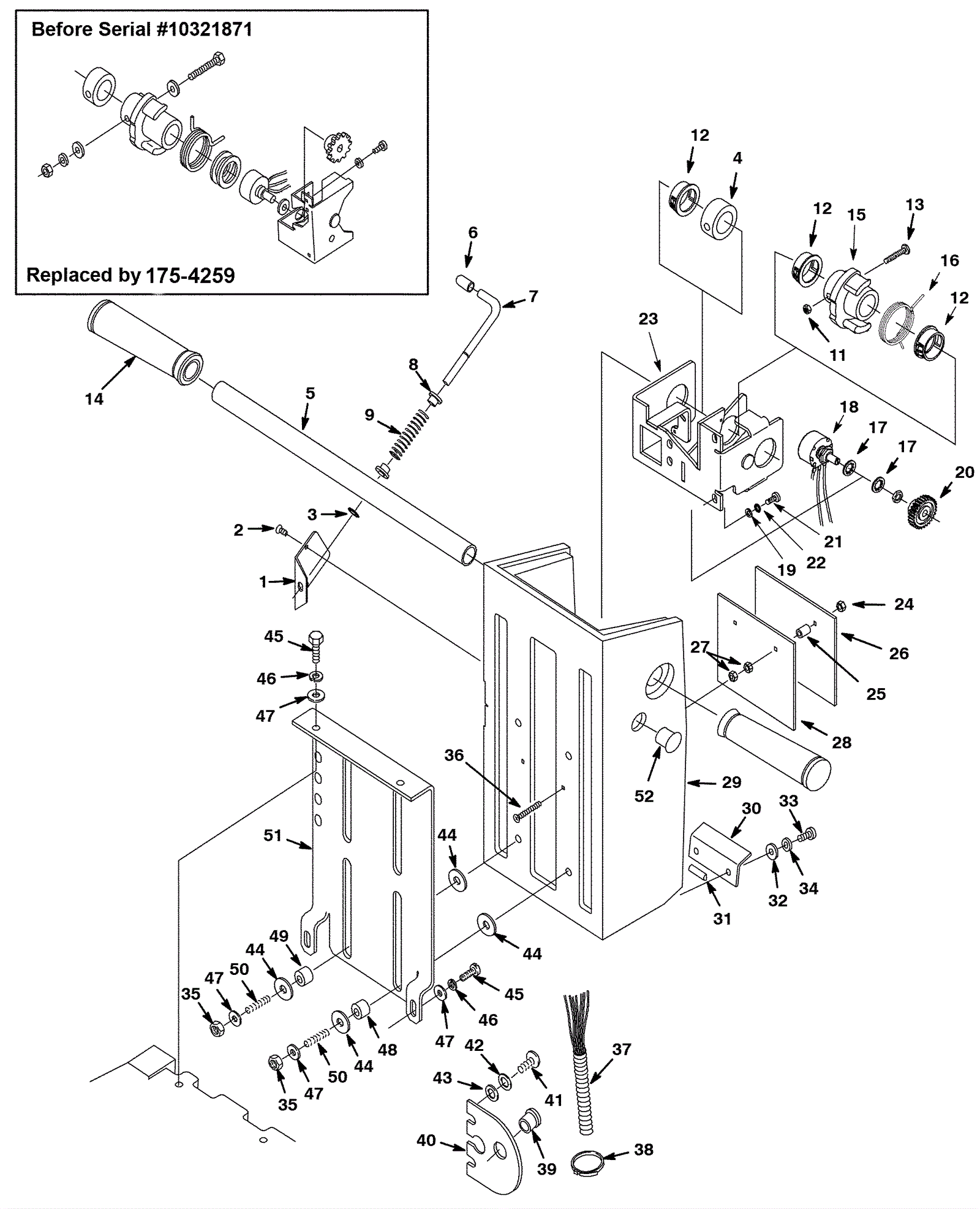

5400 Console Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4250 Retainer plate $5.52 1 ships same day
002 175-4251 Screw M4 x 8mm flat head phillips $3.19 2 ships same day
003 175-4252 Retaining ring $3.96 1 usually ships 5-16 days
004 175-4574 Collar $13.97 1 usually ships 1-5 days
005 175-4253 Handle bar $30.69 1 usually ships 5-16 days
006 175-4278 Cap $3.30 1 usually ships 5-16 days
007 175-4254 Adjustment lever $13.75 1 usually ships 5-16 days
008 175-4255 Flanged bushing $1.98 2 ships same day
009 175-4256 Compression spring $3.96 1 usually ships 5-16 days
010 175-4259 Potentiometer console bracket $418.33 1 (includes 11-17, 19, 21-23) usually ships 5-16 days
011 999-0439 Nut M6-1 hex coarse thread $0.99 1 ships same day
012 175-3093 Flanged bushing $3.96 3 usually ships 5-16 days
013 275-5062 Screw M6-1 x 35mm hex head $3.30 1 usually ships 5-16 days
014a 175-2703 Handle grip $4.07 2 ships same day
014b 991-8571 Handle grip $2.33 2 (NON-OEM) ships same day
015 275-5061 Hub assembly with gear $18.26 1 usually ships 5-16 days
016 175-4260 Torsion spring $6.60 1 usually ships 5-16 days
017 999-0201 Washer 3/8 internal star lock $0.99 2 ships same day
018 175-8627 Potentiometer and wiring assembly $164.45 1 usually ships 5-16 days
019 999-1652 Washer M4.3 flat $1.93 4 ships same day
020 275-5064 Toothed gear $35.20 1 usually ships 5-16 days
021 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 4 ships same day
022 999-1083 Washer #8 internal star lock stainless steel $0.99 4 ships same day
023 275-5063 Potentiometer bracket $213.18 1 usually ships 1-5 days
024 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
025 175-4898 Spacer $3.08 2 usually ships 1-5 days
026 175-3124 55amp speed control board $699.60 1 usually ships 5-16 days
027 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
028 175-3101 Heat sink $16.17 1 usually ships 1-5 days
029 175-4263 Console (teal) (OBSOLETE) $161.04 1 usually ships 1-5 days
030 175-4264 Bracket $9.79 1 usually ships 1-5 days
031 175-4265 Skid strip $9.68 1 usually ships 1-5 days
032 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
033 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
034 175-4544 Washer M6 locking $4.62 2 ships same day
035 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
036 175-4899 Screw M4 x 40mm (OBSOLETE) $0.99 2 usually ships 1-5 days
037 175-8628 Wire harness $1,129.81 1 usually ships 5-16 days
038 175-4267 Nylon wire tie $3.19 2 usually ships 1-5 days
039 175-2755 Snap bushing $3.08 1 usually ships 1-5 days
040 175-4277 Wiring harness retainer $23.43 1 usually ships 1-5 days
041 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
042 175-4544 Washer M6 locking $4.62 2 ships same day
043 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
044 999-0566 Washer 1/2 flat nylon $0.99 8 ships same day
045 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 4 ships same day
046 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
047 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
048 175-4269 Bearing $3.96 2 usually ships 5-16 days
049 175-4270 Bearing $3.96 2 usually ships 5-16 days
050 175-4271 Screw M8 x 35mm set $3.96 4 usually ships 5-16 days
051 175-4272 Sliding plate $79.42 1 usually ships 1-5 days
052 175-1410 Dome plug $3.19 1 usually ships 5-16 days
