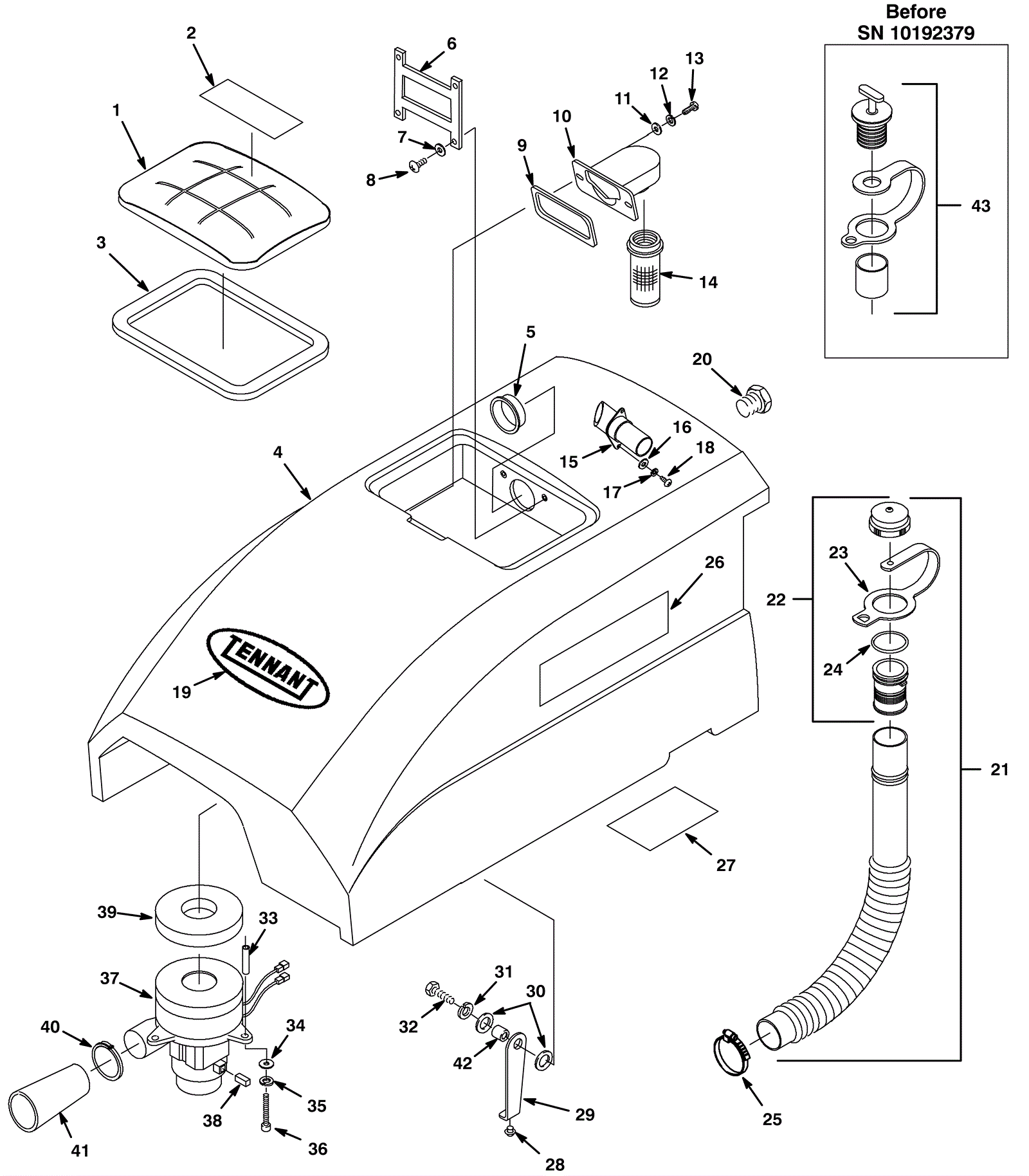

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
001 175-5796 Recovery tank lid and decal assembly 1 (includes 02 and 03)
002 175-2868 Warning decal 1
003 175-4673 Recovery tank lid gasket 1
004 175-8624 Teal recovery tank (OBSOLETE) 1
005 175-4228 2 inch plug 1
006 175-1803 Tank lid hinge 1
007 175-5797 Washer 1/6 flat zinc 4
008 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 4
009 175-4231 Float mount gasket 1
010 175-4232 Float cage mount 1
011 999-0016 Washer 1/4 flat plain finish 2
012 175-4544 Washer M6 locking 2
013 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
014a 175-1804 Shut-off float 1
014b 991-3108 Shut off float 1 (NON-OEM)
015 175-4233 Hose adaptor 1
016 175-4234 Washer M5.3 flat 2
017 999-9132 Washer M5 split lock stainless steel 2
018 175-3234 Screw M5-.8 x 10mm pan head 2
019 175-4237 Tennant decal 1
020 175-4670 3/4 inch plug 1
021 175-8620 Drain hose assembly 1 (includes 022-024)
022a 175-4214 Drain plug assembly 1 (OEM)
022b 991-3028 Drain plug assembly 1 (NON-OEM)
023 175-4214 Drain plug assembly 1
024 175-5804 O-ring 1
025 997-2000 Hose clamp 1
026a 175-8625 Decal 2
026b 175-8626 Decal 2 (FaST)
027 175-4239 Battery replacement decal 1
028 175-7780 Rubber bumper 1
029 175-4241 Tank support 1
030 999-0024 Washer 5/16 flat stainless steel 2
031 999-0553 Washer 5/16 medium split lock stainless steel 1
032 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1
033 175-4243 Spacer 3
034 999-0016 Washer 1/4 flat plain finish 3
035 999-0632 Washer 1/4 split lock stainless steel 3
036 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 3
037a 175-4245 24V 3 stage vacuum motor 1 (OEM) (includes 038)
037b 991-1210-D 24V 3 stage vacuum motor tangential with Delphi plug 1 (NON-OEM)
038 175-2658 Carbon brush (pkg of 2) 1
039 675-9893 Vacuum motor gasket 1
040 175-0921 Wire tie 1
041 175-2979 Vacuum exhaust muffler 1
042 175-2673 Bushing 1
043 N/A Not available 1 (drain cap assembly) (before SN 10192379)
