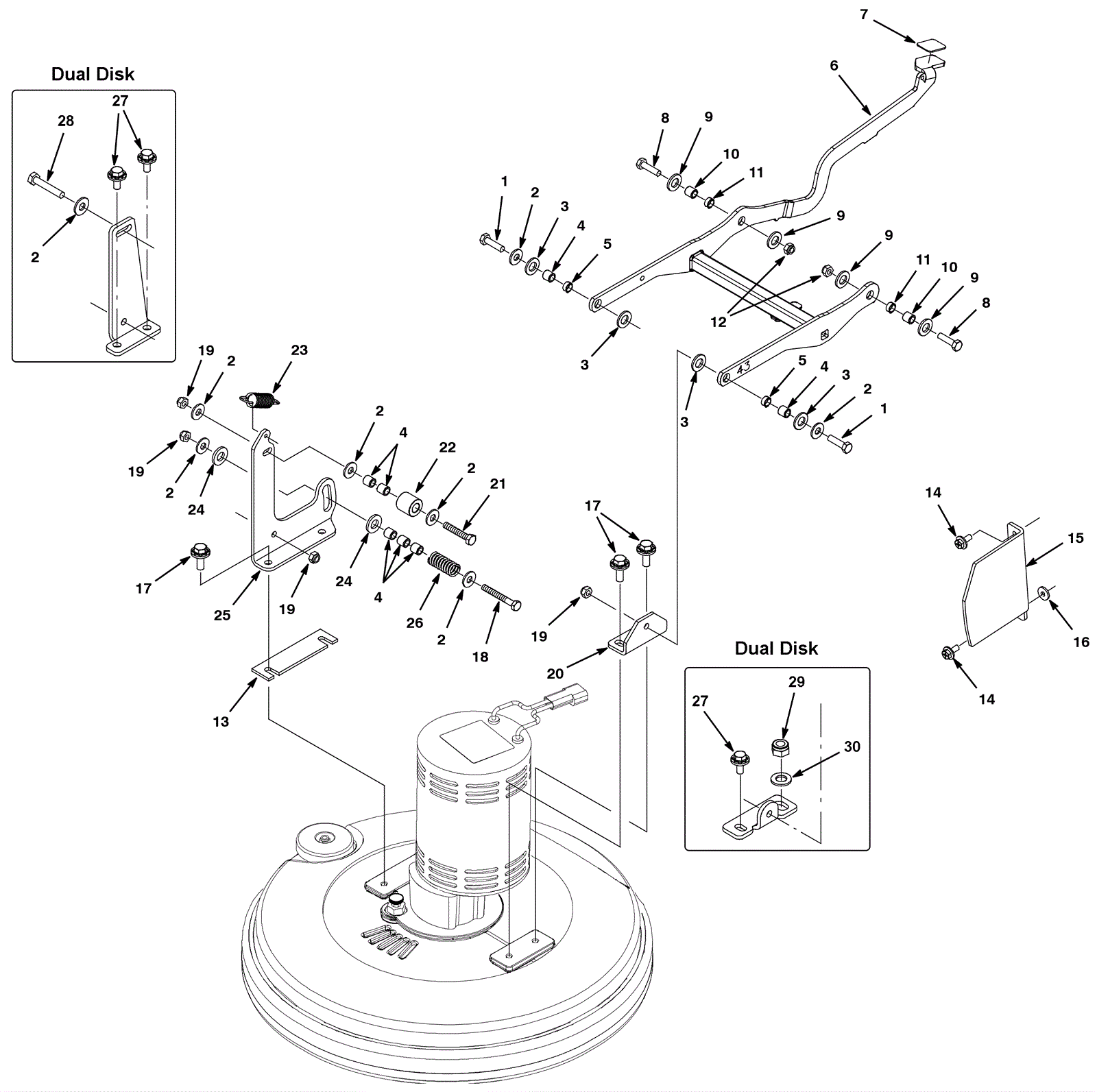

T3 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 7 (qty 5 for 24 inch dual disk) ships same day
3 999-9214 Washer M8 flat nylon $0.99 4 usually ships 19-32 days
4 175-2249 Sleeve $4.22 7 (qty 4 for 24 inch dual disk) usually ships 13-17 days
5 175-4720 Bearing $10.67 2 usually ships 13-17 days
6a 275-7520 Brush lift weldment assembly $643.50 1 (17 inch) (includes 7-12) usually ships 13-17 days
6b 275-6138 Brush lift weldment assembly $587.40 1 (20 inch and 24 inch dual disk) (includes 7-12) usually ships 13-17 days
7 175-7904 Adhesive non-slip pad $5.28 1 usually ships 13-17 days
8 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
9 999-9214 Washer M8 flat nylon $0.99 4 usually ships 19-32 days
10 175-2249 Sleeve $4.22 2 usually ships 13-17 days
11 175-4720 Bearing $10.67 2 (qty 4 for 24 inch dual disk) usually ships 13-17 days
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
13 275-5917 Spacer plate $12.76 1 (17 inch and 20 inch) (brush assist model) usually ships 13-17 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
15a 175-7926 Guide bracket $51.81 1 (17 inch) usually ships 1-5 days
15b 175-7912 Guide bracket $48.62 1 (20 inch) usually ships 13-17 days
15c 275-9922 Guide bracket $29.26 1 (24 inch dual disk) usually ships 1-5 days
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 (17 inch and 20 inch) ships same day
17 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 4 (17 inch and 20 inch) ships same day
18 999-1155 Screw M8-1.25 x 60mm hex head $1.87 1 (17 inch and 20 inch) ships same day
19 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 (qty 3 for 24 inch dual disk) ships same day
20a 175-7914 Mounting bracket $21.78 1 (17 inch and 20 inch) usually ships 13-17 days
20b 275-9924 Mounting bracket $22.99 1 (24 inch dual disk) usually ships 1-5 days
21 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $5.28 1 (17 inch and 20 inch) ships same day
22 175-7911 Roller $10.67 1 usually ships 13-17 days
23a 275-5918 Extension spring $7.37 1 (17 inch) usually ships 13-17 days
23b 275-5919 Extension spring $7.37 1 (20 inch) usually ships 13-17 days
24 175-0939 Thrust washer $5.50 2 (17 inch and 20 inch) ships same day
25a 175-7909 Mounting bracket $88.66 1 (17 inch and 20 inch) usually ships 13-17 days
25b 275-9923 Mounting bracket $40.81 1 (24 inch dual disk) usually ships 1-5 days
26 175-0944 Spring $10.23 1 (17 inch and 20 inch) usually ships 13-17 days
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 3 (24 inch dual disk) usually ships 13-17 days
28 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $5.28 1 (24 inch dual disk) ships same day
29 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 (24 inch dual disk) ships same day
30 175-5407 Washer M12 flat stainless steel $4.36 1 (24 inch dual disk) usually ships 13-17 days
N/S 175-7795 Cable tie $5.15 1 (17 inch and 20 inch) ships same day
