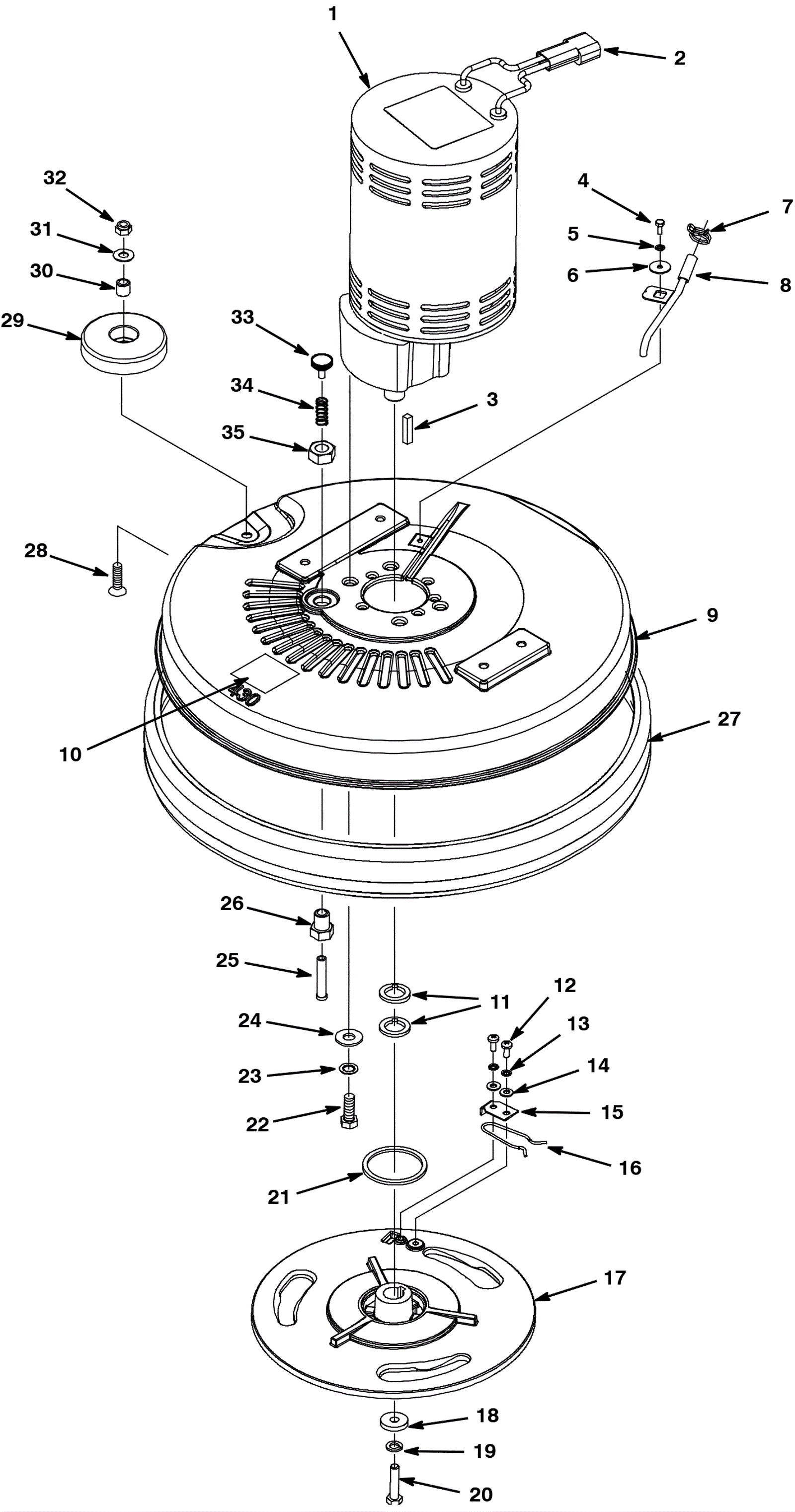

T3 Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-9252 24V 1HP brush motor assembly $1,455.19 1 (includes 1b-1e, 2a, 3a) (before SN 10564492) ships same day
1b 275-9253 Carbon brush assembly (pkg of 4) $110.33 1 (includes 1c) (before SN 10564492) usually ships 1-5 days
1c 175-2600 Carbon brush $33.88 4 (before SN 10564492) ships same day
1d 275-9254 Motor gearbox $831.82 1 (before SN 10564492) usually ships 1-5 days
1e 275-5908 Brush motor leads $3.96 2 usually ships 5-16 days
1f 275-9252 24V 1HP brush motor assembly $1,455.19 1 (includes 1e, 1g, 2b, 3b) (after SN 10564491) ships same day
1g 275-5907 Carbon brush replacement kit (pkg of 4) $11.77 1 (after SN 10564491) usually ships 5-16 days
1g 991-2121 24V .75HP brush motor assembly with gear box $416.75 1 (NON-OEM) ships same day
2a 275-9255 Connector $10.62 1 (before SN 10564492) usually ships 1-5 days
2b 275-5909 Terminal clip $3.96 1 (after SN 10564491) usually ships 5-16 days
3a 275-5910 Square keyway $4.29 1 (before SN 10564492) ships same day
3b 275-1468 Square keyway $3.96 1 (after SN 10564491) ships same day
4 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 1 ships same day
5 999-1083 Washer #8 internal star lock stainless steel $0.99 1 ships same day
6 175-5797 Washer 1/6 flat zinc $3.30 1 ships same day
7 175-3671 Hose clamp $3.96 1 ships same day
8 175-7913 Solution tube $149.71 1 usually ships 5-16 days
9a 275-9902 17 inch (430mm) housing kit $284.68 1 (includes 10) ships same day
9b 275-5916 20 inch(500mm) brush housing $409.86 1 usually ships 5-16 days
10 175-1238 Moving parts decal $5.28 1 usually ships 5-16 days
11a 175-1437 Spacer $9.46 2 (before SN 10564492) ships same day
11b 275-1469 Shaft spacer $8.03 1 (after SN 10564491) usually ships 5-16 days
12 999-1225 Screw M5-.8 x 12mm pan head phillips zinc $0.99 2 ships same day
13 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
14 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
15 175-7921 Brush plate clamp $20.79 1 ships same day
16 175-7924 Spring clip $6.60 1 ships same day
17a 275-4800 Drive hub $229.57 1 (before SN 10564492) usually ships 5-16 days
17b 275-9256 Drive hub $237.16 1 (after SN 10564491) usually ships 5-16 days
18a 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 (before SN 10564492) ships same day
18b 175-7920 Washer M8 flat stainless steel $3.30 1 (after SN 10564491) ships same day
19 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 (before SN 10564492) ships same day
20 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 (before SN 10564492) ships same day
21 175-7917 Water containment ring $9.13 1 ships same day
22 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 (before SN 10564492) ships same day
23 175-4494 Washer M10 $3.30 4 (before SN 10564492) ships same day
24 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 (before SN 10564492) ships same day
25 275-5913 Pin $26.40 1 usually ships 5-16 days
26 175-4701 Pin head $19.36 1 usually ships 5-16 days
27a 175-7923 17 inch (430mm) bumper with bristle skirt $78.87 1 usually ships 5-16 days
27b 175-7916 20 inch (500mm) bumper with bristle skirt $141.90 1 ships same day
28 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
29a 175-7919 Guide wheel $4.95 1 ships same day
29b 991-8570 Bumper wheel $2.55 1 ships same day
30 175-2249 Sleeve $3.08 1 ships same day
31 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
32 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
33 175-3718 Knob $3.96 1 ships same day
34 275-5914 Compression spring $9.35 1 usually ships 5-16 days
35 275-5915 Nut M14 x 2mm hex head stainless steel $3.96 1 ships same day
N/S 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 (after SN 10564491) ships same day
N/S 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 1 (after SN 10564491) ships same day
