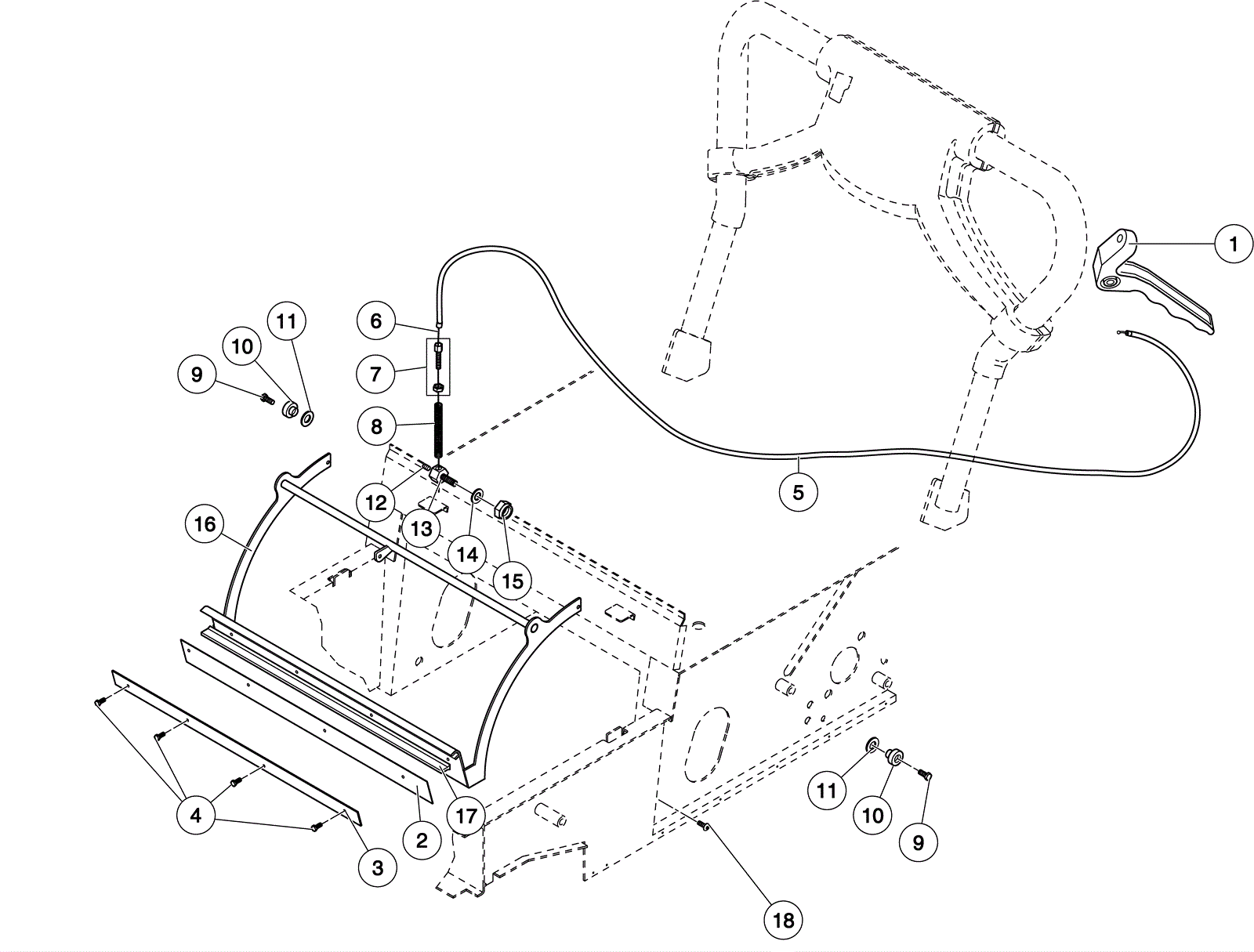

S8 Debris Flap Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7991 Internal traction bracket $207.02 1 usually ships 5-16 days
2 275-5969 Rubber skirt (OBSOLETE) $27.17 1 usually ships 5-16 days
3 275-5970 Strap $41.58 1 usually ships 5-16 days
4 175-3787 Screw M3.5 x 9.5 flat head phillips $3.96 5 ships same day
5 275-5971 Cable sheath $44.77 1 ships same day
6 275-6169 52 1/2 inch drive cable $105.93 1 ships same day
7 175-3802 Cable adjuster(OBSOLETE) $28.60 1 usually ships 5-16 days
8 175-8042 Compression spring $17.41 1 usually ships 1-5 days
9 175-3846 Screw M8-1.25 x 22mm hex head $4.84 2 usually ships 5-16 days
10 175-8041 Bushing $12.43 2 usually ships 1-5 days
11 175-3858 Washer M8 x 24mm flat $4.18 2 usually ships 1-5 days
12 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 1 ships same day
13 175-3810 Wire fixing screw $42.13 1 usually ships 5-16 days
14 175-3811 Washer M8 x 17mm flat $3.96 1 usually ships 5-16 days
15 175-3812 Nut M8 block $4.84 1 usually ships 1-5 days
16 275-5974 Flap bracket $1,114.96 1 usually ships 1-5 days
17 175-8039 Rubber skirt flap $59.07 1 usually ships 5-16 days
18 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 2 ships same day
