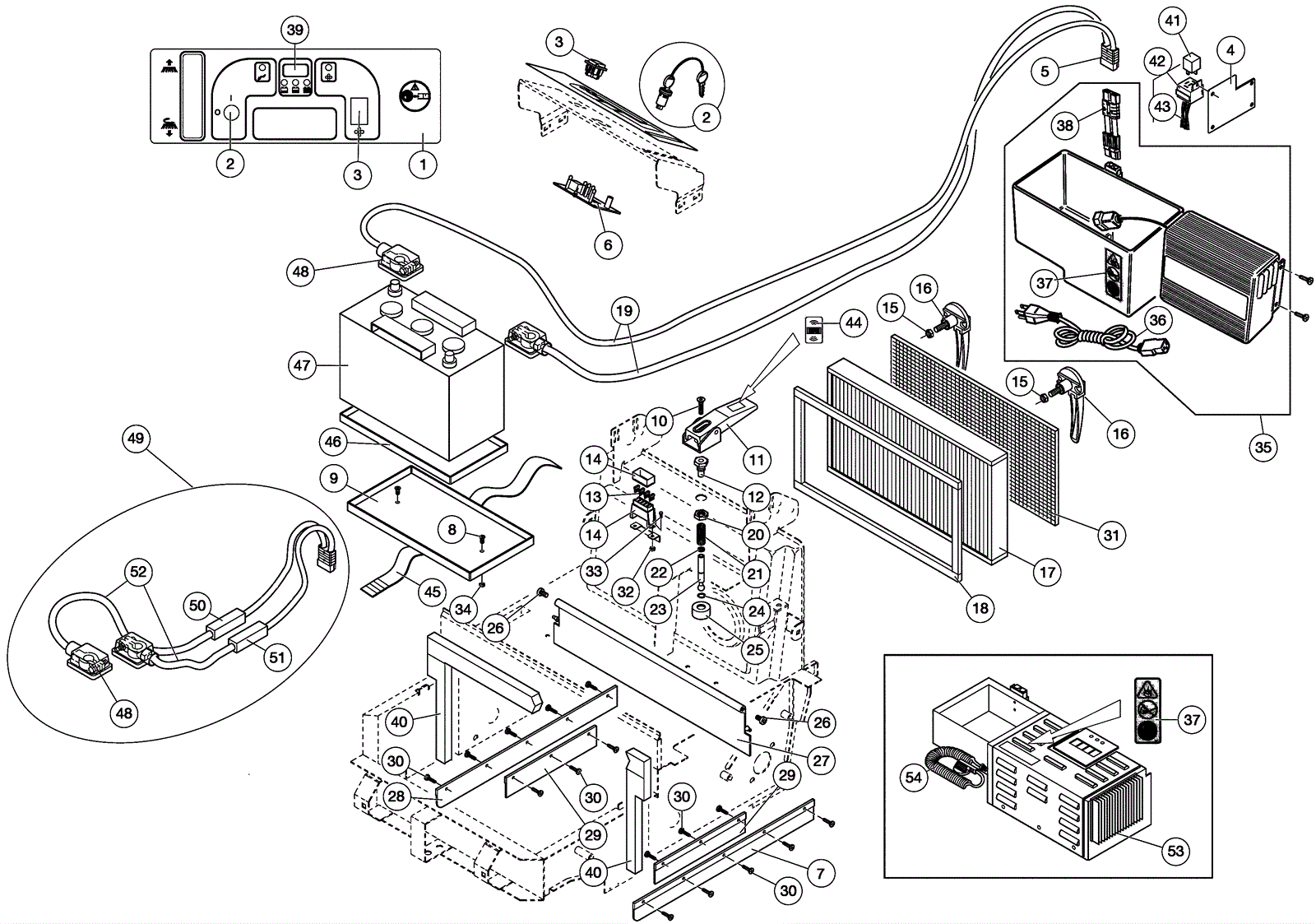

S8 Electrical and Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-8036 Control panel plate $297.33 1 usually ships 1-5 days
2a 175-7872 Key switch with 2 keys $53.13 1 usually ships 1-5 days
2b 991-1634 Key (pkg of 2) $14.21 1 ships same day
2c 991-5161 Key switch with keys $16.04 1 (NON-OEM) ships same day
3 175-3762 Bipolar switch $49.61 1 usually ships 10-13 days
4 175-8035 Bracket $101.53 2 usually ships 1-5 days
5a 991-2118 Battery charger connector (black) $11.72 1 ships same day
5b 991-2117 Battery charger connector (red) $11.59 1 ships same day
6 175-3791 Main circuit board $1,633.94 1 usually ships 10-13 days
7 175-3766 Left hand flap (gray) $96.58 1 usually ships 10-13 days
8 999-1515 Screw M4-.7 x 16mm flat head socket stainless steel $0.99 2 usually ships 1-5 days
9 175-8033 Battery tray $219.34 1 usually ships 1-5 days
10 999-1422 Screw M6-1 x 16mm flat head zinc plated $2.26 1 ships same day
11 175-3770 Filtershaker lever $66.77 1 usually ships 1-5 days
12 175-3771 Filtershaker rail $83.05 1 usually ships 1-5 days
13 175-3772 30amp fuse $9.13 3 usually ships 1-5 days
14 175-3773 Fuse box and cover $168.08 1 usually ships 1-5 days
15 999-1292 Nut M8 hex nickel plated brass $1.85 2 ships same day
16 175-3775 Handle (OBSOLETE) $64.70 2 usually ships 10-13 days
17a 175-9042 Hospital grade filter $337.48 1 ships same day
17b 991-9077 Polyester panel filter (OBSOLETE) $166.93 1 (NON-OEM) usually ships 7-9 days
18 175-3615 Filter gasket $124.74 1 ships same day
19 175-3776 Electrical insulation $1,215.17 1 usually ships 1-5 days
20 175-3777 Nut M18 hex $5.50 1 usually ships 1-5 days
21 175-3778 Spring $27.72 1 usually ships 1-5 days
22 175-3779 Gasket $10.34 1 usually ships 10-13 days
23 175-3780 Pin $30.25 1 usually ships 1-5 days
24 175-3781 Retaining ring $5.50 1 usually ships 1-5 days
25 175-3782 Filtershaker bar $59.29 1 usually ships 1-5 days
26 999-1516 Screw M10-1.5 x 16mm button head socket plain finish $1.20 2 usually ships 1-5 days
27 175-3784 Rear flap $95.37 1 usually ships 10-13 days
28 275-5807 Right hand flap $95.37 1 usually ships 10-13 days
29a 175-3786 Inner flap skirt (gray) $64.57 2 ships same day
29b 175-8021 Inner flap skirt (gray) $93.50 2 (optional color) usually ships 10-13 days
30 175-3787 Screw M3.5 x 9.5 flat head phillips $5.28 16 ships same day
31 203-1259 Pre-filter $24.20 1 ships same day
32 175-3789 Nut M4 x .7 $5.28 8 usually ships 1-5 days
33 175-8022 Screw 4 x 16 $3.70 2 usually ships 1-5 days
34 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
35 175-8037 120V onboard battery charger $1,530.43 1 (includes 36-38) usually ships 10-13 days
36 475-1749 CORD, POWER, CHRGR, 120VAC [S8-US/JP] $60.06 1 usually ships 10-13 days
37 175-4614 Battery charger decal $28.49 1 usually ships 10-13 days
38 475-2134 ADAPTER, CHARGER CONNECTOR [S8-UK] $207.35 1 usually ships 10-13 days
39 175-3792 Hour meter $457.27 1 usually ships 1-5 days
40 375-9230 Front container gasket kit (TENNANT INDSUTRIAL) $32.34 1 usually ships 10-13 days
41 175-8024 Relay $163.68 1 usually ships 10-13 days
42 175-8025 Relay mounting adapter $47.08 1 usually ships 1-5 days
43 175-8026 Relay wiring harness $163.90 1 usually ships 1-5 days
44 175-8027 Decal $11.55 1 usually ships 1-5 days
45 175-8028 Battery strap $26.40 1 usually ships 1-5 days
46 175-8029 Battery tray $100.32 1 usually ships 1-5 days
47a 162-0042 12V 115Ah AGM battery (Group 31) (SNSR) $500.50 1 ships same day
47b 162-0011 12V 105Ah wet battery (SNSR) $291.50 1 ships same day
48 203-3138 Electrical installation $192.08 1 usually ships 1-5 days
49 175-3776 Electrical insulation $1,215.17 1 (includes 48, 50-52) usually ships 1-5 days
50 991-2118 Battery charger connector (black) $11.72 1 ships same day
51 991-2117 Battery charger connector (red) $11.59 1 ships same day
52 175-8983 Battery cable quick connect $356.73 1 usually ships 10-13 days
53 N/A Not available Call for price 1 (replaced by 35) usually ships 3-26 days
54 175-8019 110V main cable $338.14 1 usually ships 10-13 days
