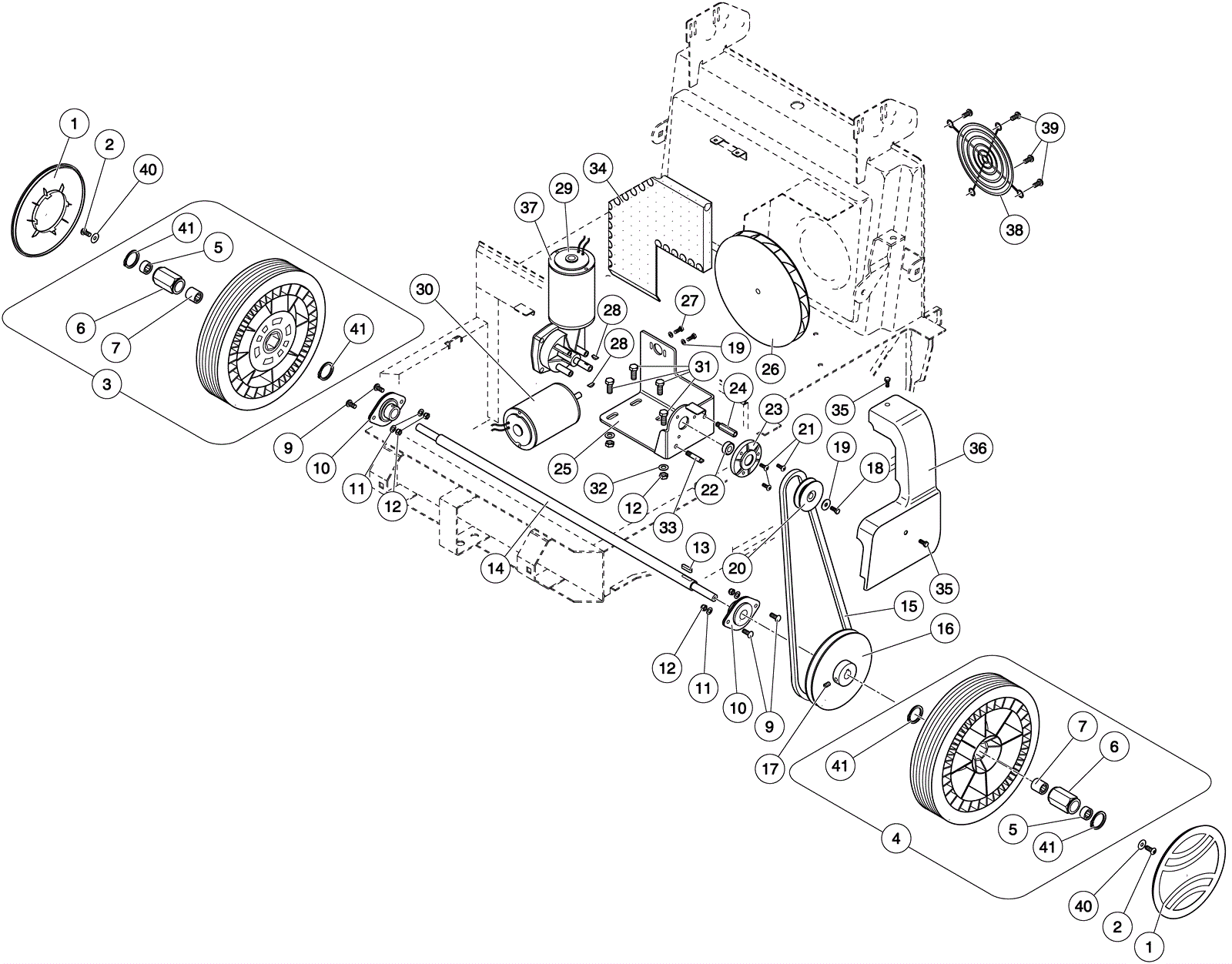

S8 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-8018 Wheel cover $45.65 2 usually ships 10-13 days
2 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 2 ships same day
3 275-6029 Right hand wheel with bearings (black) $816.64 1 (includes 5-7 and 41) usually ships 10-13 days
4 275-6030 Left hand wheel with bearings (black) $816.64 1 (includes 5-7 and 41) usually ships 10-13 days
5 175-3873 Bearing $280.06 2 usually ships 1-5 days
6 175-3610 Hexagonal bushing $116.38 2 usually ships 1-5 days
7 175-3866 Bearing $113.08 2 usually ships 3-28 days
9 175-3875 Screw M6-1 x 16mm $22.04 4 usually ships 10-13 days
10 175-3876 Axle support $322.52 2 usually ships 10-13 days
11 175-3877 Washer M6 x 12mm flat $3.96 4 usually ships 10-13 days
13 175-3879 Square keyway $5.83 1 usually ships 10-13 days
14 175-3880 Drive shaft $329.78 1 usually ships 10-13 days
15a 175-3609 Drive belt $96.80 1 usually ships 10-13 days
15b 991-9214 BELT, DRIVE, BRUSH, RND $70.49 1 (NON-OEM) usually ships 18-24 days
16 175-3881 Pulley $208.01 1 usually ships 10-13 days
17 175-3882 Screw M6-1 x 10mm set $5.28 1 usually ships 10-13 days
18 175-4089 Screw M4-.7 x 12 mm hex head $3.96 1 usually ships 10-13 days
19 175-3884 Washer M5 x 20mm flat $3.08 3 usually ships 1-5 days
20 175-3885 Pulley $65.56 1 usually ships 10-13 days
21 999-1669 Screw M6-1 x 25mm button head $0.99 3 usually ships 1-5 days
22 175-3887 Bearing $46.09 1 usually ships 1-5 days
23 175-3888 Bearing support $123.31 1 usually ships 10-13 days
24 175-3889 Support pin $9.13 1 usually ships 1-5 days
25 175-3890 Motor support bracket $121.33 1 usually ships 1-5 days
26 175-3891 Fan $440.33 1 usually ships 1-5 days
27 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 2 ships same day
28 203-3279 Key $18.36 2 usually ships 11-14 days
29 475-2832 MOTOR KIT, RETROFIT [SCOUT28] $1,699.39 1 usually ships 10-13 days
30 175-3895 Drive motor $1,440.67 1 usually ships 10-13 days
31 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
32 175-3739 Washer M6 x 18 flat $3.19 4 usually ships 1-5 days
33 175-3897 Pin $30.69 1 usually ships 1-5 days
34 275-6718 Plastic fan guard $42.90 1 usually ships 1-5 days
35 175-3864 Screw M6-1 x 10mm hex head flange $5.28 1 usually ships 1-5 days
36 175-3900 Air conveyor $72.27 1 usually ships 1-5 days
37 175-3901 Reduction gear $303.05 1 usually ships 1-5 days
38 175-8016 Fan protection grill $109.67 1 usually ships 1-5 days
39 175-8017 Screw $3.08 4 usually ships 1-5 days
41 203-1171 Washer 6 x 24 $3.10 4 ships same day
