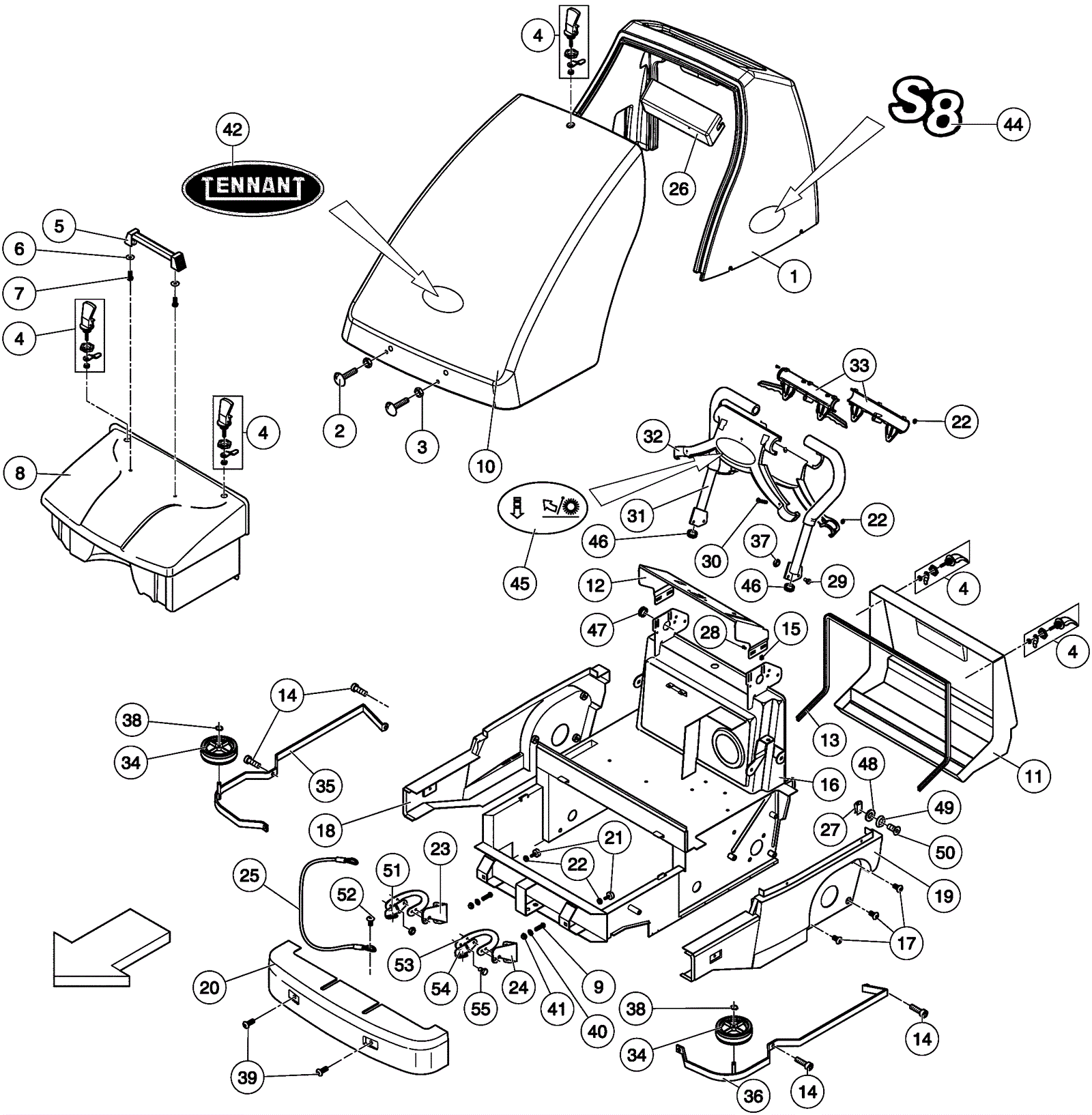

S8 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-7970 Upper cover with warning decal $465.14 1 usually ships 1-5 days
1b 475-2786 COVER, UPPER, W/ LABEL, GRAY [US] $1,197.02 1 usually ships 5-16 days
2 175-7972 Screw $38.28 2 usually ships 1-5 days
3 999-1292 Nut M8 hex nickel plated brass $1.85 2 ships same day
4 175-0186 Locking latch $47.46 5 ships same day
5 175-7973 Handle $32.89 1 usually ships 1-5 days
6 203-1171 Washer 6 x 24 $2.29 2 ships same day
7 175-7974 Screw M6-1 x 19mm hex flange $4.40 2 usually ships 1-5 days
8 175-7975 Front hopper $443.19 1 usually ships 5-16 days
9 175-7976 Screw $2.64 2 usually ships 1-5 days
10a 175-7977 Front cover $2,600.84 1 usually ships 1-5 days
10b 475-2854 COVER, FRONT, GRAY $1,728.65 1 usually ships 5-16 days
11 175-7978 Rear hopper $1,312.19 1 ships same day
12 175-7979 Control panel bracket $368.50 1 usually ships 1-5 days
13 175-3743 Gasket $274.56 1 ships same day
14 999-1512 Screw M8-1.25 x 16mm button head socket plain finish $1.67 12 ships same day
15 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
16 175-7980 Frame $2,838.55 1 usually ships 1-5 days
17 175-3838 Screw M8-1.25 x 10mm hex head $3.74 8 usually ships 5-16 days
18 175-7981 Right hand fender $796.07 1 usually ships 5-16 days
19 175-7982 Left hand fender $808.61 1 usually ships 5-16 days
20 175-7983 Front bumper $207.74 1 ships same day
21 175-3742 Foot $11.66 2 usually ships 5-16 days
22 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
23 175-7984 Right hand hinge bracket support $96.91 1 usually ships 1-5 days
24 175-7985 Left hand hinge bracket support $96.91 1 ships same day
25 175-7986 Cable $132.77 1 usually ships 1-5 days
26 175-7987 Electrical housing $284.90 1 usually ships 1-5 days
27 175-7988 Spring clip $11.44 4 usually ships 1-5 days
28 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
29 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
30 175-8000 Screw M6-1 x 35mm turned eye button head $4.84 2 usually ships 5-16 days
31 375-7867 Handle set (obsolete) $556.82 1 usually ships 5-16 days
32 175-7990 Front and rear housing assembly $668.58 1 usually ships 5-16 days
33 175-7991 Internal traction bracket $207.02 1 usually ships 5-16 days
34 175-3755 Side bumper roller $46.64 2 ships same day
35 375-7868 Right hand bumper bracket weldment $122.55 1 usually ships 5-16 days
36 175-3756 Left hand metal bumper $88.99 1 usually ships 5-16 days
37 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 1 ships same day
38 175-3754 Retaining ring $4.95 2 ships same day
39 175-3846 Screw M8-1.25 x 22mm hex head $4.84 2 usually ships 5-16 days
40 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
42 275-5983 Tennant logo decal $60.83 1 ships same day
44 175-7995 Model decal $64.57 2 ships same day
45 175-7994 Oval decal (OBSOLETE) $47.63 1 usually ships 1-5 days
46 175-7996 Tube grommet $8.80 2 usually ships 1-5 days
47 175-7997 Grommet (OBSOLETE) Call for price 1 usually ships 1-5 days
48 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
49 175-7998 Washer $8.80 4 usually ships 1-5 days
50 175-7999 Screw M6-30 $3.19 4 usually ships 1-5 days
51 175-8001 Right hand inner bracket $50.93 1 usually ships 1-5 days
52 175-8002 Screw M6-25 $6.05 1 usually ships 1-5 days
53 175-8003 Left hand outer bracket $117.04 2 usually ships 1-5 days
54 175-8004 Left hand inner bracket $50.93 1 usually ships 1-5 days
55 175-8005 Screw M6-10 turned eye $4.07 4 usually ships 1-5 days
N/S 175-4108 Warning decal (OBSOLETE) $31.68 1 usually ships 1-5 days
