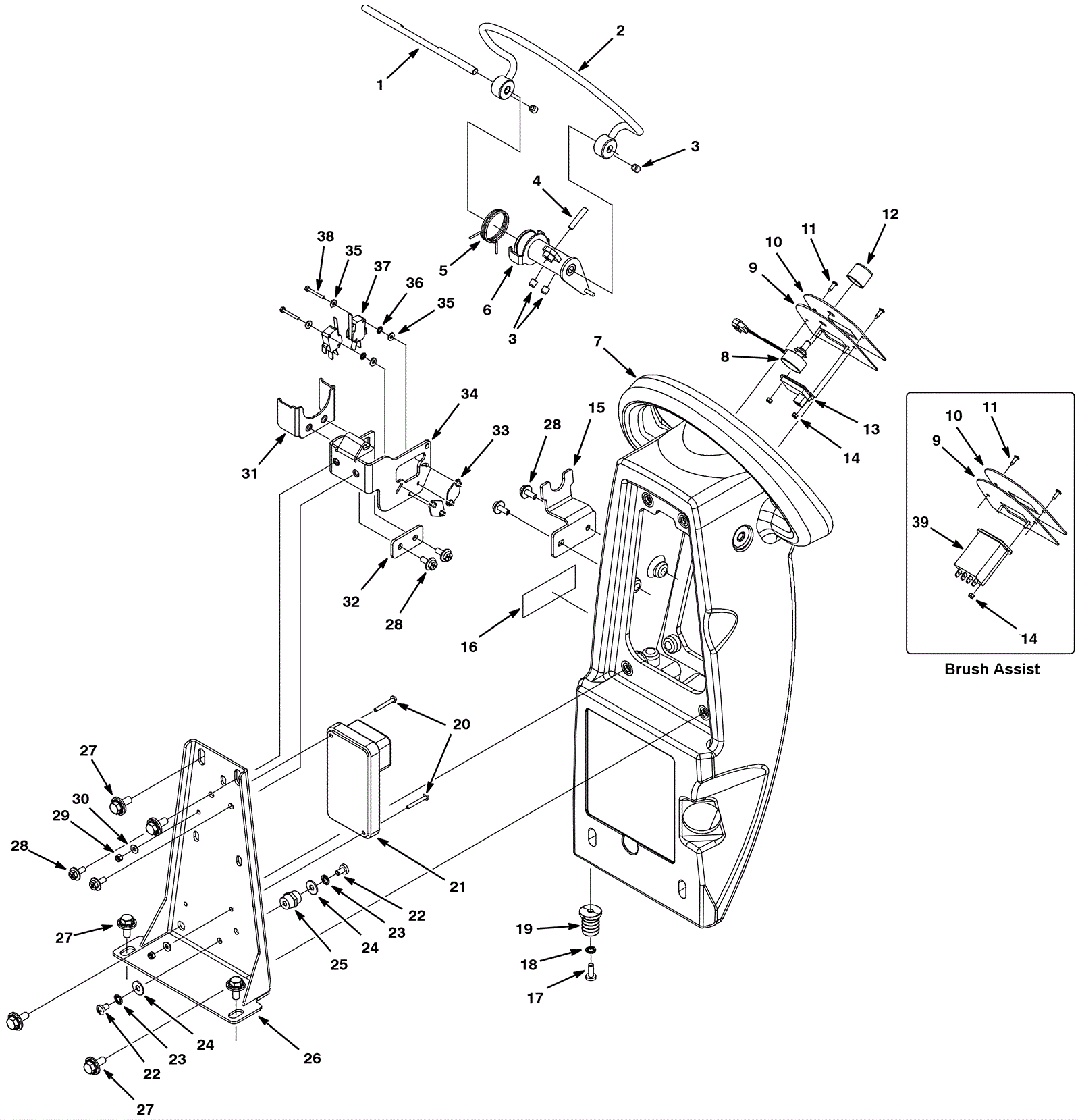

T3 Rear Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7845 Shaft $26.40 1 usually ships 1-5 days
2 175-7844 Bail lever $121.99 1 usually ships 5-16 days
3 999-1339 Screw M8-1.25 x 8mm set cup point $0.99 4 ships same day
4 175-7843 Screw M6-1 x 30mm set stainless steel $3.96 1 usually ships 5-16 days
5 175-4260 Torsion spring $6.60 1 ships same day
6 175-7841 Collar weldment $86.24 1 usually ships 5-16 days
7 175-7846 Control housing $569.14 1 usually ships 5-16 days
8 175-7847 Potentiometer assembly $81.18 1 (drive model) ships same day
9 175-7848 Upper control panel $65.12 1 usually ships 5-16 days
10a 175-7849 Upper control panel decal $17.49 1 (drive model) usually ships 5-16 days
10b 175-7867 Control panel decal $97.35 1 (brush assist model) usually ships 5-16 days
11 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
12 175-1163 Speed control knob $38.28 1 (drive model) ships same day
13a 175-4935 36V Battery gauge $89.10 1 (drive model) usually ships 5-16 days
13b 991-9183 GAUGE, DISCHARGE, BATTERY, 36VDC, RT,LED $108.23 1 (NON-OEM) usually ships 5-16 days
14 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
15 275-9899 Squeegee retainer bracket $29.92 1 usually ships 1-5 days
16a 175-5222 Attention users decal (FaST) $5.28 1 usually ships 5-16 days
16b 275-5732 Attention users decal (ec-H2O) $4.29 1 usually ships 1-5 days
17 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 1 ships same day
18 175-4544 Washer M6 locking $4.62 1 ships same day
19 275-5871 Plastic fitting $3.30 1 ships same day
20 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 (drive model) usually ships 11-24 days
21 175-7862 Drive module $482.90 1 (drive model) ships same day
22 999-0807 Screw M6-1 x 10mm flat head phillips $2.49 2 ships same day
23 175-4544 Washer M6 locking $4.62 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
25 175-7864 Wire stand off $17.16 1 usually ships 5-16 days
26 275-5882 Control housing bracket $36.52 1 usually ships 5-16 days
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 6 ships same day
28 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 6 ships same day
29 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 (drive model) ships same day
30 999-0266 Washer #8 SAE flat stainless steel $0.99 2 (drive model) ships same day
31 175-7837 Bail spring bracket $43.67 1 usually ships 1-5 days
32 175-7838 Plate $7.15 1 usually ships 1-5 days
33 175-7839 Switch plate $33.00 2 usually ships 5-16 days
34 175-7840 Bail switch bracket $47.41 1 usually ships 1-5 days
35 999-1158 Washer #6 flat stainless steel $0.99 8 ships same day
36 999-1083 Washer #8 internal star lock stainless steel $0.99 4 ships same day
37 175-7836 Snap switch $25.19 2 ships same day
38 275-5888 Screw M3-.5 x 25mm hex head stainless steel $2.75 4 ships same day
39 175-7866 24V battery indicator $265.21 1 (brush assist model) ships same day
