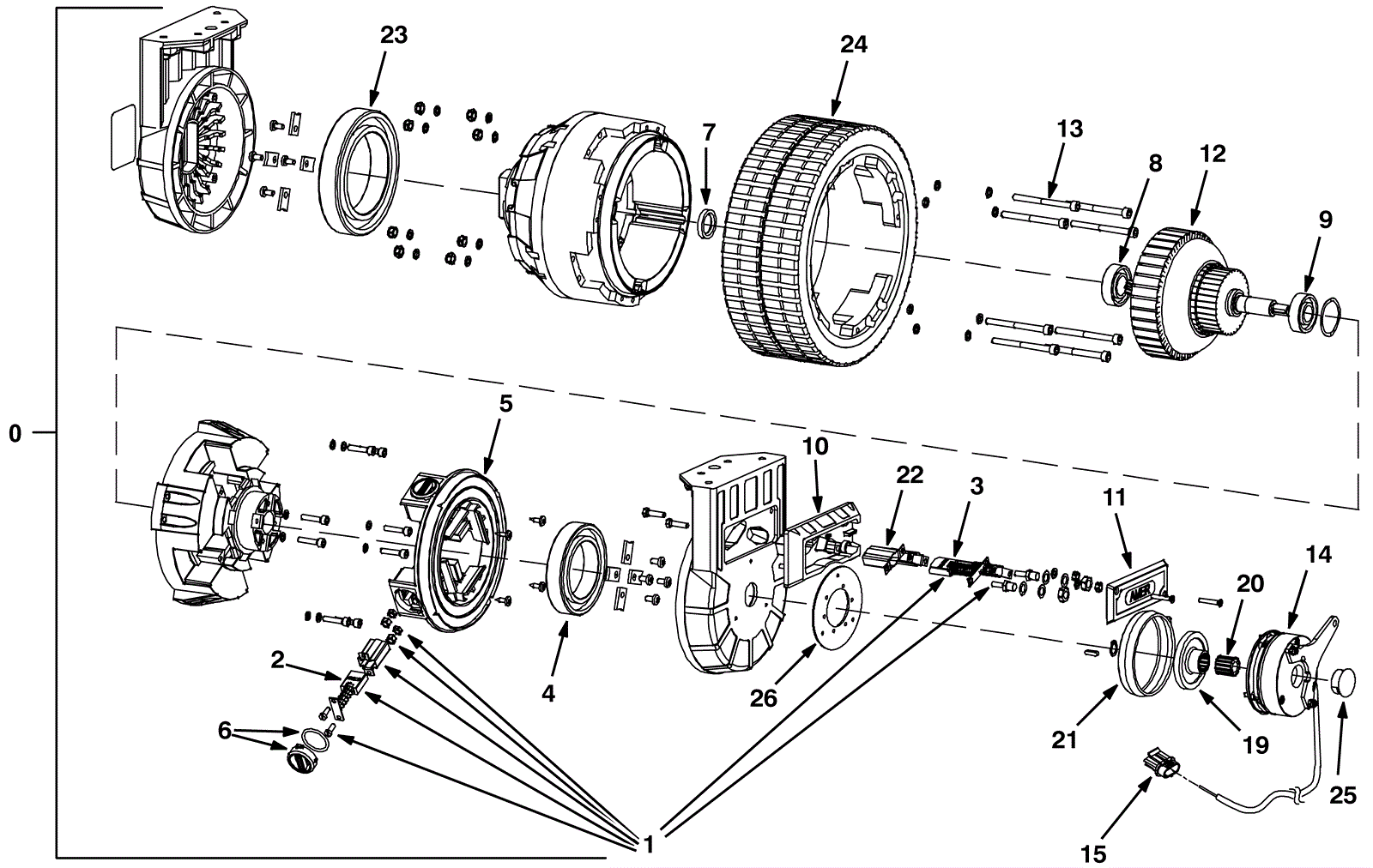

SPEED SCRUB RIDER Front Drive Wheel Gearbox Assembly

#PartDescriptionPriceReqNotesAvailability
0a 275-6296 Wheel gearbox kit $4,646.40 1 (includes 1 -14a, 15-24a, 25-26) (after SN 10518138) ships same day
1 175-5371 Carbon and motor brush kit $544.17 1 ships same day
2a 275-4972 Carbon brush kit (pkg of 4) $337.48 1 (includes 2b) ships same day
2b 275-4973 Carbon brush (sold individually) $86.24 4 usually ships 5-16 days
3a 275-4974 Motor brush kit (pkg of 2) $123.97 1 (includes 3b) ships same day
3b 275-8262 Motor brush (sold individually) $58.19 2 usually ships 5-16 days
4 275-4975 Bearing $109.56 1 usually ships 5-16 days
5 275-4976 Carbon brush holder ring $1,077.56 1 usually ships 5-16 days
6 175-5373 Carbon brush cover $50.05 4 ships same day
7 175-5374 Ring seal $60.94 1 usually ships 5-16 days
8 175-5375 Gearbox side bearing $80.19 1 usually ships 5-16 days
9 175-5376 Motor side bearing $70.62 1 usually ships 5-16 days
10 275-8260 Connection box $125.40 1 usually ships 5-16 days
11 275-8261 Connection cover $21.56 11 usually ships 5-16 days
12 275-8263 Armature $996.49 1 usually ships 1-5 days
13 275-4977 Wheel mounting screw $7.26 8 ships same day
14a 275-9868 Brake kit with connector $1,143.56 1 (includes 15-20) (after SN 10518138) usually ships 5-16 days
14b 275-9869 Brake kit with connector and harness $1,255.87 1 (includes 15-20) (before SN 1051839) ships same day
15a 175-8753 Female connector $7.48 2 ships same day
15b 175-8756 Male and female secondary lock $3.96 2 usually ships 5-16 days
15c 275-8096 Female terminal $3.30 2 ships same day
15d 275-8097 Wire seal $3.41 2 ships same day
19 275-8266 Brake rotor $223.52 1 ships same day
20 275-8266 Brake rotor $223.52 1 ships same day
21 275-8268 Rubber sleeve $65.78 1 usually ships 5-16 days
22 275-8269 Brush holder guide $15.40 1 usually ships 5-16 days
23 275-8270 Steering bearing $295.46 1 usually ships 5-16 days
24 275-8259 Solid tire (red) $749.32 1 usually ships 5-16 days
25 175-3126 Plug $3.96 1 (after SN 10518138) ships same day
26 275-6775 Brake flange $36.41 1 (after SN 10518138) usually ships 5-16 days
