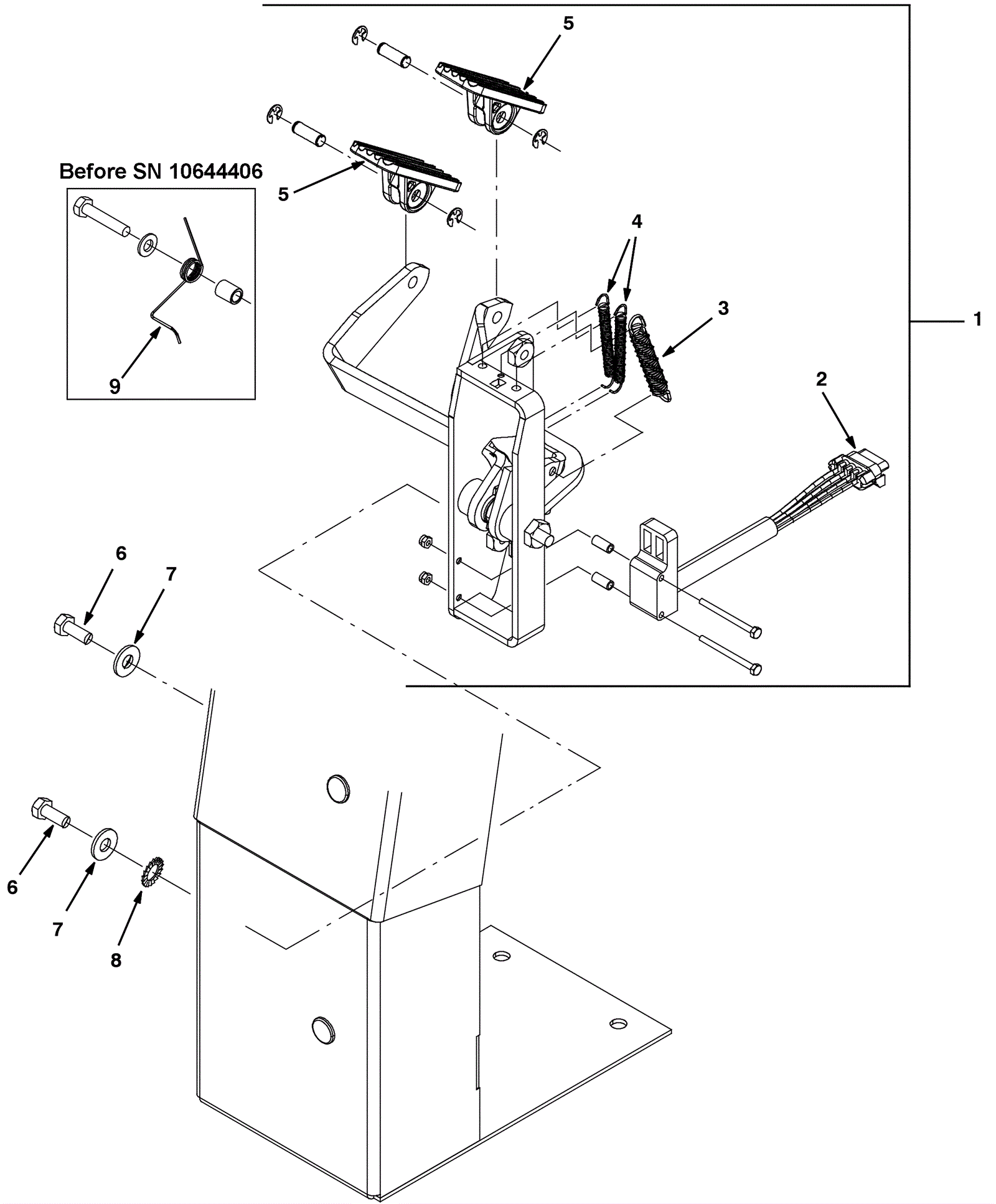

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
275-6619
|
Pedal assembly |
$533.61
|
1 |
(inlcudes 2, 3, 4a, 5a) (after SN 10644405) |
usually ships 5-16 days |
1b |
275-9358
|
Pedal assembly |
$678.04
|
1 |
(inlcudes 2, 3, 4a, 5b, 5c, 9) (before SN 10644406) (replaced by 1a) |
usually ships 5-16 days |
2 |
275-7039
|
Hall sensor |
$342.10
|
1 |
(after SN 10508136) |
ships same day |
3 |
275-9360
|
Extension spring |
$28.82
|
1 |
|
ships same day |
4a |
275-7040
|
Extension spring (Tennant Industrial) |
$15.20
|
2 |
(after SN 10508136) |
ships same day |
4b |
275-6619
|
Pedal assembly |
$533.61
|
1 |
(before SN 10508137) |
usually ships 5-16 days |
5a |
275-6620
|
Foot pedal |
$9.90
|
2 |
(after SN 10644405) |
ships same day |
5b |
275-8101
|
Foot pedal |
$5.50
|
1 |
(between SN 10508137 and SN 10644405) (replaced by 1a) |
usually ships 5-16 days |
5c |
275-7908
|
Propel pedal (Tennant Industrial) |
$12.53
|
1 |
(between SN 10508137 and SN 10644405) (replaced by 1a) |
usually ships 1-5 days |
6 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
2 |
|
ships same day |
7 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
8 |
175-2893
|
Washer 5/16 internal/external locking |
$3.30
|
1 |
|
usually ships 5-16 days |
9 |
275-7909
|
Torsion spring |
$6.16
|
1 |
(between SN 10508137 and SN 10644405) |
usually ships 1-5 days |
