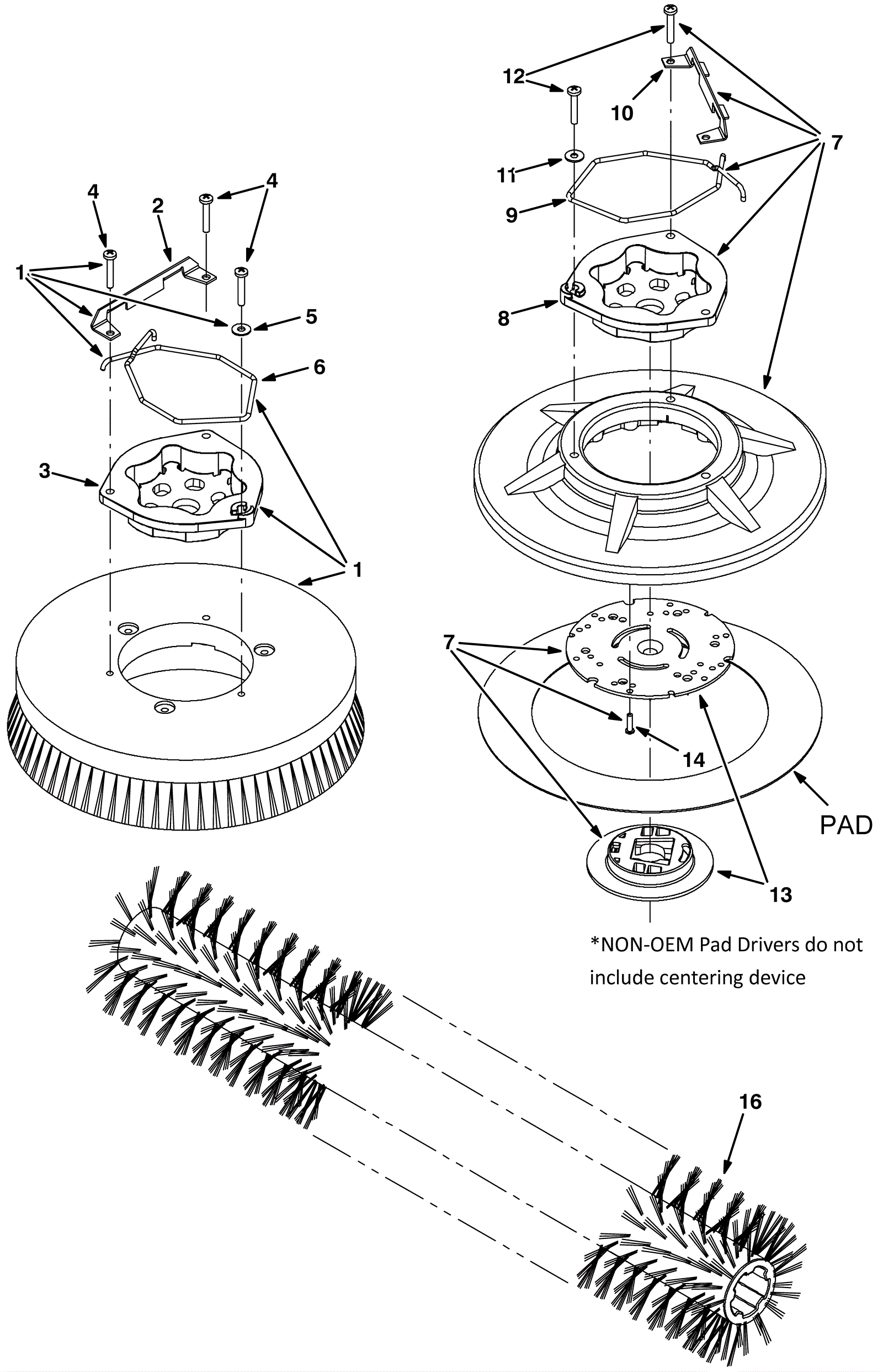

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-8050
|
13 inch nylon scrubbing brush |
2 |
(includes 2) |
|
1b |
996-1873
|
13 inch polypropelene scrubbing brush |
2 |
(includes 2) |
|
1c |
275-8052
|
13 inch super abrasive stripping brush |
2 |
(includes 2) |
|
1d |
275-8054
|
16 inch nylon scrubbing brush |
2 |
(includes 2) |
|
1e |
996-1874
|
16 inch polypropelene scrubbing brush |
2 |
(includes 2) |
|
1f |
275-8055
|
16 inch super abrasive stripping brush |
2 |
(includes 2) |
|
2 |
475-3623
|
BRUSH KIT, HUB ASSY, DRIVE, CI [HDPE] |
1 |
|
|
3a |
996-1879
|
13 inch pad driver assembly |
2 |
(includes 4-6) |
|
3b |
275-7548
|
Pad driver assembly |
2 |
(includes 4-6) |
|
3c |
991-9177
|
13 inch pad driver assembly |
2 |
(NON-OEM) |
|
4 |
475-3623
|
BRUSH KIT, HUB ASSY, DRIVE, CI [HDPE] |
1 |
|
|
5 |
275-6264
|
Pad centering device |
1 |
|
|
6a |
999-1352
|
Screw 10-14 x 3/4 phillips pan head plastic thread rolling |
3 |
|
|
6b |
991-2206
|
Center-Lok 3 pad holder |
2 |
(NON-OEM) |
|
7a |
175-8616
|
13 inch stripping pad (brown) (pkf of 5) |
2 |
|
|
7b |
175-8617
|
13 inch scrubbing pad (blue) |
2 |
|
|
7c |
175-8618
|
Buffing pad (pkg of 5) |
2 |
|
|
7d |
255-1320
|
13 inch premium white polishing pad (pkg of 5) |
2 |
|
|
7e |
255-1347
|
13 inch Redwood maroon floor prep pad (pkg of 10) |
2 |
|
|
7f |
675-9540
|
13 inch polishing pad (yellow) |
2 |
|
|
7g |
175-4909
|
Black strip head pad |
2 |
|
|
7h |
255-1692
|
16 inch premium brown stripping pad (pkg of 5) |
2 |
|
|
7i |
775-0100
|
16 inch scrubbing pad (blue)(pkg of 5) |
2 |
|
|
7j |
175-0519
|
16 inch buffing pad (red)(each) |
2 |
|
|
7k |
255-1647
|
16 inch Redwood maroon floor prep pad (pkg of 10) |
2 |
|
|
7l |
255-1620
|
16 inch premium white polishing pad (pkg of 5) |
2 |
|
|
8a |
775-1009
|
DISK, POLISH, 13.0D,1000GRIT[DIAMABRUSH] |
2 |
(26 inch) (includes 9-10) |
|
8b |
775-0099
|
DISK, POLISH, 13.0D,2000GRIT[DIAMABRUSH] |
2 |
(26 inch) |
|
9 |
475-3623
|
BRUSH KIT, HUB ASSY, DRIVE, CI [HDPE] |
1 |
(26 inch) |
|
10 |
N/A
|
Not available |
1 |
(26 inch) (Retainer) |
|
11a |
175-2072
|
Spring retainer bracket |
1 |
|
|
11b |
991-3047
|
Spring retainer bracket |
1 |
(NON-OEM) |
|
12 |
275-4936
|
Brush hub 3 hole |
1 |
|
|
13 |
175-0505
|
Screw M6-1 x 35mm pan head stainless steel |
3 |
|
|
14 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
15 |
275-8051
|
Brush retaining spring |
1 |
|
|
16a |
996-1041
|
Nylon scrubbing brush - CYLINDRICAL |
2 |
|
|
16b |
996-1042
|
Abrasive scrubbing brush - CYLINDRICAL |
2 |
|
|
16c |
996-1039
|
Polypropelene grout scrubbing brush - CYLINDRICAL |
2 |
|
|
16d |
996-1040
|
Polypropelene scrubbing brush - CYLINDRICAL |
2 |
|
|
16e |
175-2403
|
32 inch soft nylon scrubbing brush - CYLINDRICAL |
2 |
|
|
16f |
175-2404
|
32 inch abrasive scrubbing brush - CYLINDRICAL |
2 |
|
|
16g |
996-1045
|
32 inch polypropelene grout scrubbing brush - CYLINDRICAL |
2 |
|
|
16h |
175-2069
|
32 inch polypropelene scrubbing brush - CYLINDRICAL |
2 |
|
|
N/S |
275-8050
|
13 inch nylon scrubbing brush |
2 |
|
|
N/S |
996-1873
|
13 inch polypropelene scrubbing brush |
2 |
|
|
N/S |
275-8052
|
13 inch super abrasive stripping brush |
2 |
|
|
N/S |
996-1879
|
13 inch pad driver assembly |
2 |
|
|
N/S |
275-8054
|
16 inch nylon scrubbing brush |
2 |
|
|
N/S |
996-1874
|
16 inch polypropelene scrubbing brush |
2 |
|
|
N/S |
275-8055
|
16 inch super abrasive stripping brush |
2 |
|
|
N/S |
275-7548
|
Pad driver assembly |
2 |
|
|
