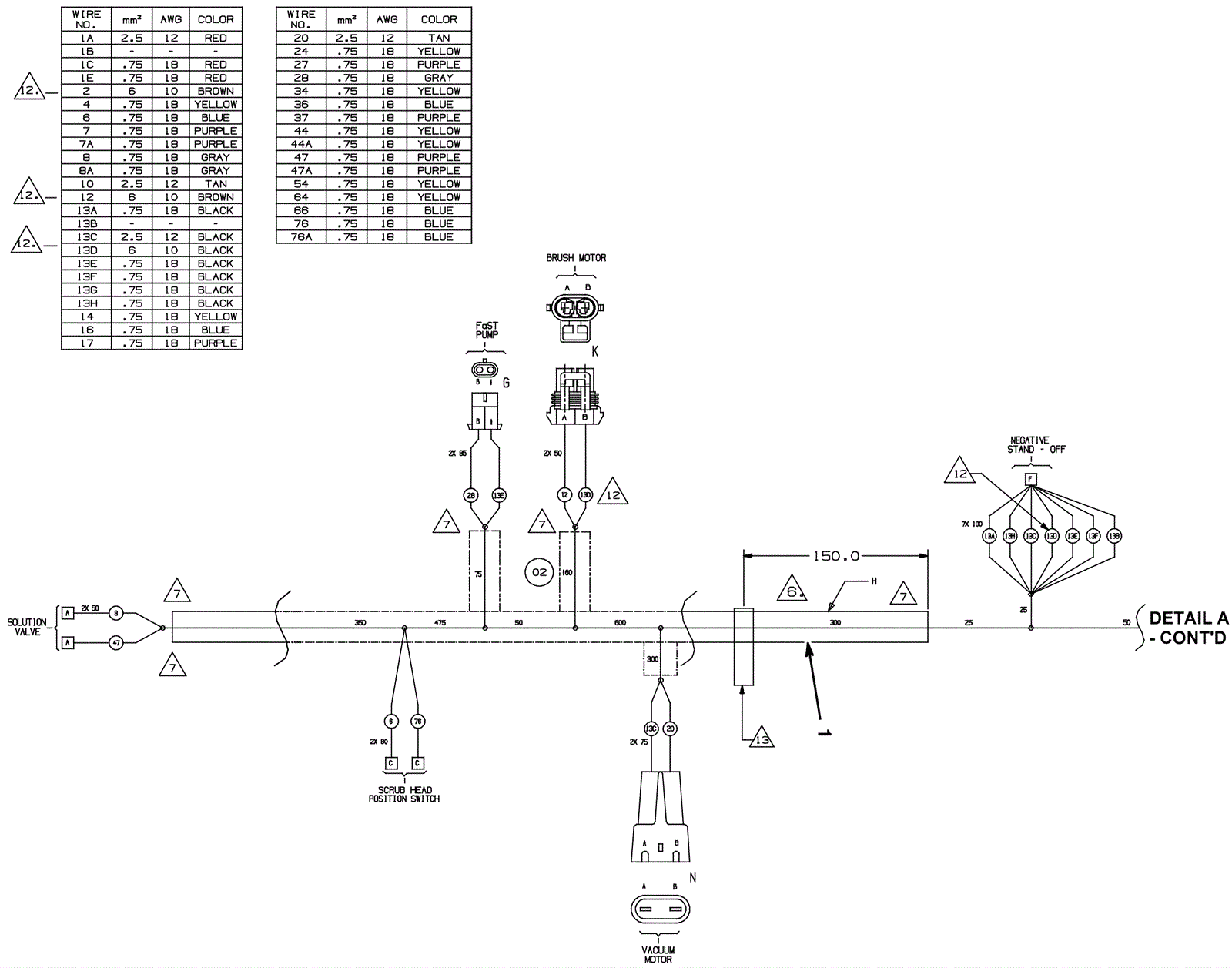

T3 Wire Harness Diagram - Brush Assist Model 2

#PartDescriptionPriceReqNotesAvailability
1 275-6004 Main harness kit $349.03 1 (includes 2-4) usually ships 1-5 days
2 175-7880 25amp fuse $4.49 1 usually ships 10-16 days
3 175-7881 5amp fuse $4.09 1 usually ships 1-5 days
4 175-2216 Diode plug $13.20 3 ships same day
