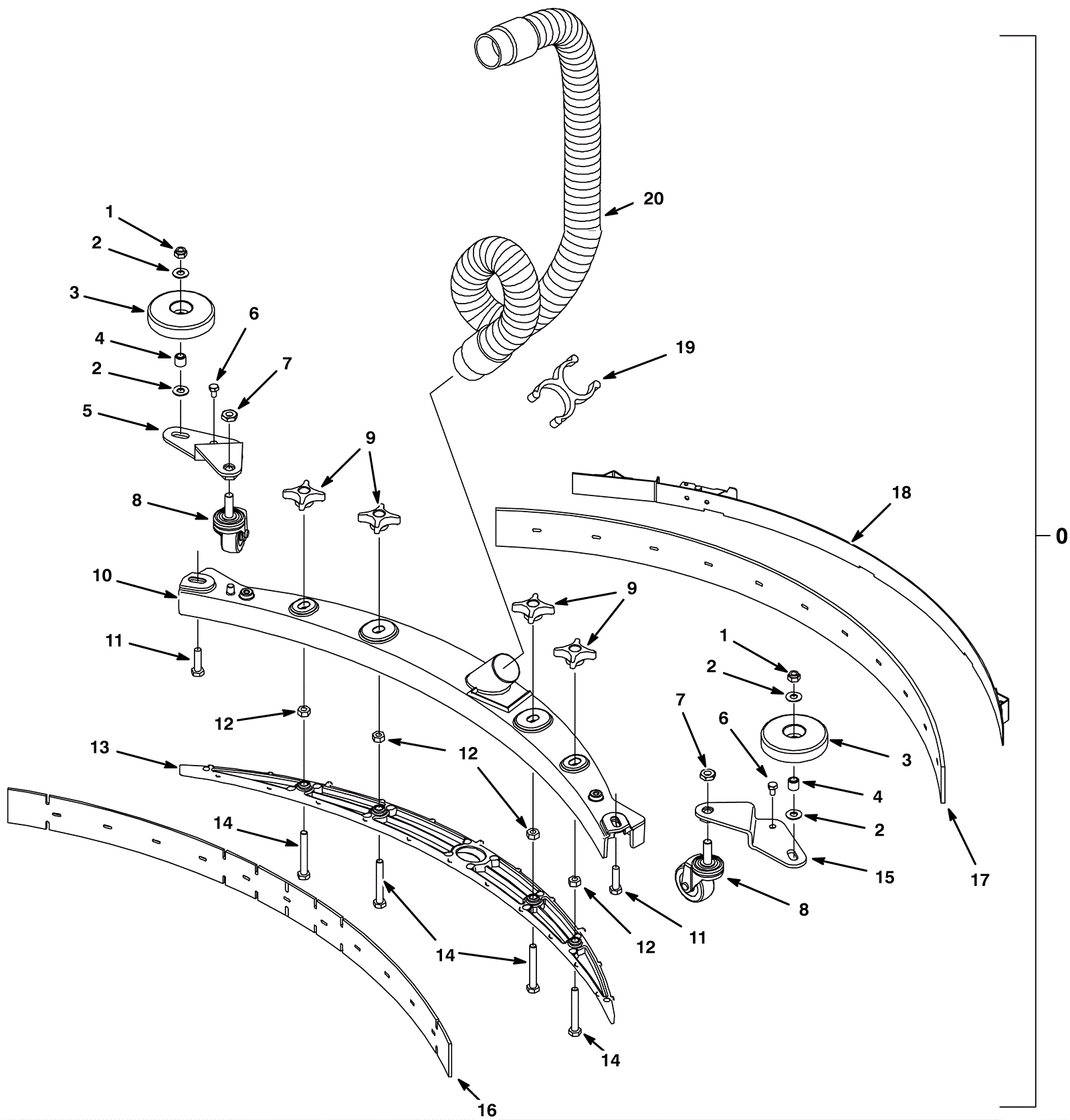

T3 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 175-7951 20 inch (500mm) squeegee assembly $419.65 1 (includes 1-16a, 17a, 18) usually ships 5-16 days
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
2 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
3a 175-7919 Guide wheel $4.95 2 ships same day
3b 991-8570 Bumper wheel $2.55 2 (NON-OEM) ships same day
4 175-2249 Sleeve $3.08 2 ships same day
5 175-7952 Right hand mounting plate $41.47 1 usually ships 5-16 days
6 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 2 ships same day
7 999-1625 Nut M10-1.5 hex jam stainless steel $1.54 2 ships same day
8a 175-7953 Swivel caster wheel $21.78 2 usually ships 7-17 days
8b 991-8581 Swivel caster wheel $9.32 2 (NON-OEM) ships same day
9 175-7954 Star knob $4.95 4 ships same day
10 175-7955 20 inch (500mm) squeegee weldment $307.45 1 ships same day
11 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
12 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
13 275-1548 20 inch (500mm) squeegee blade retainer $44.44 1 usually ships 5-16 days
14 999-1155 Screw M8-1.25 x 60mm hex head $1.87 4 ships same day
15 175-7957 Left hand mounting plate $40.37 1 usually ships 5-16 days
16a 175-7958 Squeegee blade 20 inch linatex front $19.25 1 (standard) (OEM) ships same day
16b 175-7959 Squeegee blade 20 inch gum rubber front $18.26 1 (optional) (OEM) ships same day
16c 994-0098 Squeegee blade 20 inch gum rubber front $9.90 1 (optional) (NON-OEM) ships same day
16d 175-7960 Squeegee blade 20 inch oil resistant front $54.45 1 (optional) (OEM) ships same day
17a 175-7961 Squeegee blade 20 inch linatex rear (red) $22.22 1 (standard) (OEM) ships same day
17b 175-7962 Squeegee blade 20 inch gum rubber rear (tan) $21.01 1 (optional) (OEM) ships same day
17c 994-0078 Squeegee blade 20 inch gum rubber rear (red) $24.46 1 (optional) (NON-OEM) ships same day
17d 175-7963 Squeegee blade 20 inch oil resistant rear $71.83 1 (optional)(OEM) ships same day
17e 994-0080 Squeegee blade 20 inch oil resistant rear $62.96 1 (optional) (NON-OEM) usually ships 3-14 days
18 175-7964 20 inch squeegee strap assembly $185.46 1 usually ships 5-16 days
19 175-4772 Hose bracket $3.96 1 ships same day
20a 175-7966 Vacuum hose with short cuffs $53.11 1 (OEM) ships same day
20b 991-5139 Vacuum hose with short cuffs $21.17 1 (NON-OEM) ships same day
20c 991-3112 Vacuum hose with short cuffs $20.80 1 (NON-OEM) ships same day
