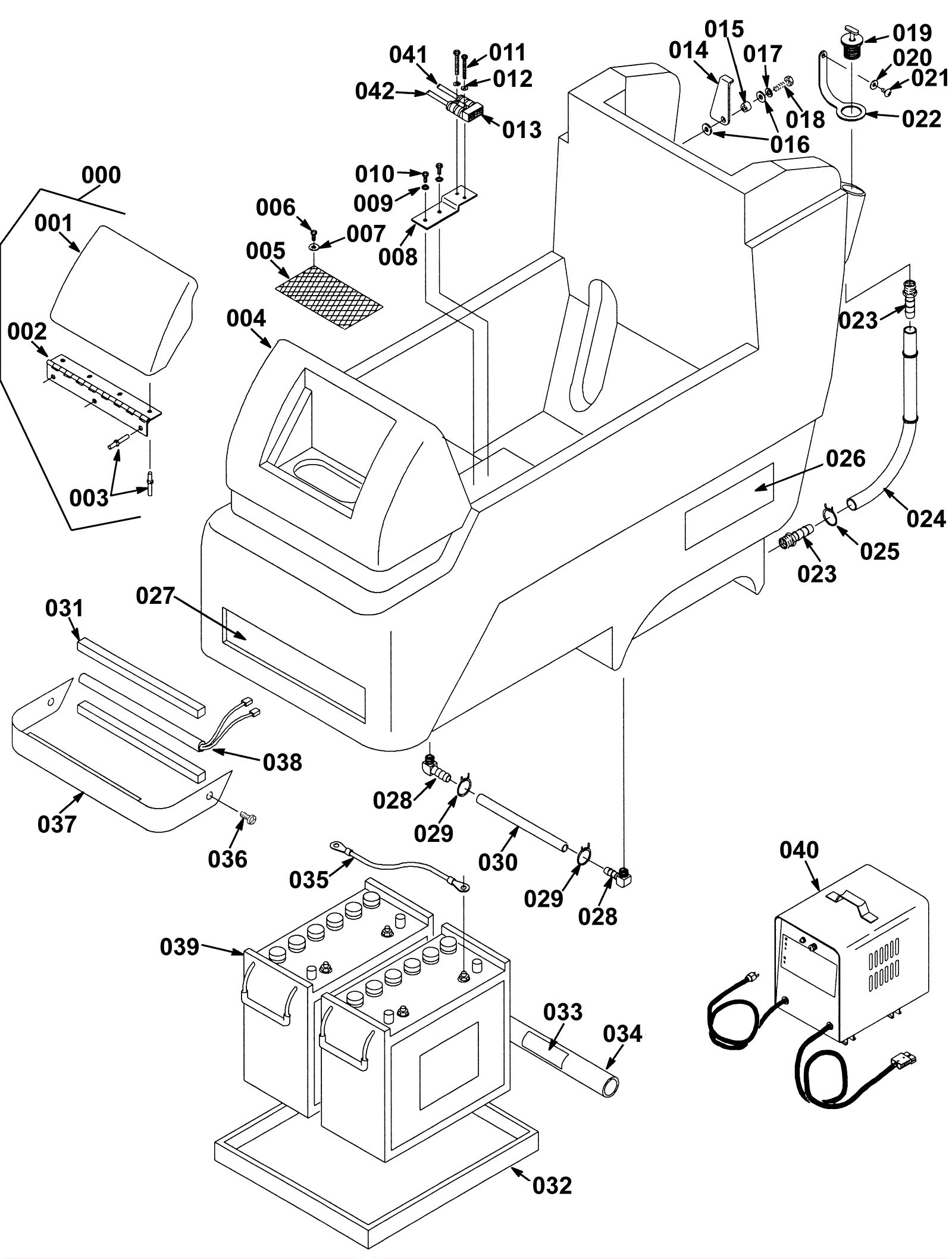

Solution Tank Assembly

#PartDescription ReqNotesAvailability
000 175-6637 Teal solution tank cover assembly 1
001 175-6638 Teal solution tank cover 1
002 175-3633 Hinge 1
004 175-6639 Teal solution tank 1
005 175-6640 Solution fill screen 1
006 999-0434 Screw 6 x 3/8 pan head phillips 2
007 999-1158 Washer #6 flat stainless steel 2
008 175-2038 Charger plug bracket 1
009 999-0053 Washer #10 split lock plain finish 2
010 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 2
011 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel 2
012 999-0148 Washer #6 external star lock zinc plated 2
013 991-9284 50amp charger plug SB50 with pins (red) 1
014 175-2672 Recovery tank support 1
015 175-2673 Bushing 1
016 999-0024 Washer 5/16 flat stainless steel 2
017 999-0553 Washer 5/16 medium split lock stainless steel 1
018 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 1
019 175-2653 1 1/2 inch expansion plug 1
020 999-0006 Washer 3/16 flat zinc plated 1
021 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
022 175-2984 Plug strap (OBSOLETE) 1
023 175-1025 Straight brass fitting 2
024 175-1024 Hose assembly with markers 1
025 175-3671 Hose clamp 1
026 175-6641 5200 side decal 2
027 175-0147 Tennant decal 1
028 175-2997 Elbow 2
029 175-3671 Hose clamp 2
030 175-6642 Hose 3/8 x 10-1/4 inches 1
031 175-1209 Gasket 2
032 175-1150 Battery tray 1
033 175-0972 Battery placement decal 1
034 175-1147 Battery support tube 1
035a 998-0010 Battery jumper cable - ring type (red) 1
035b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 1 (NON-OEM)
036 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 2
037 175-0969 Light shield (OBSOLETE) 1
038 175-2995 12 Inch safety light 1
039 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 2
040 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1 Charger
041 175-2039 Black wire #12 x 17 5/16 1
042 175-0974 Red wire #12 x 12 3/8 1
