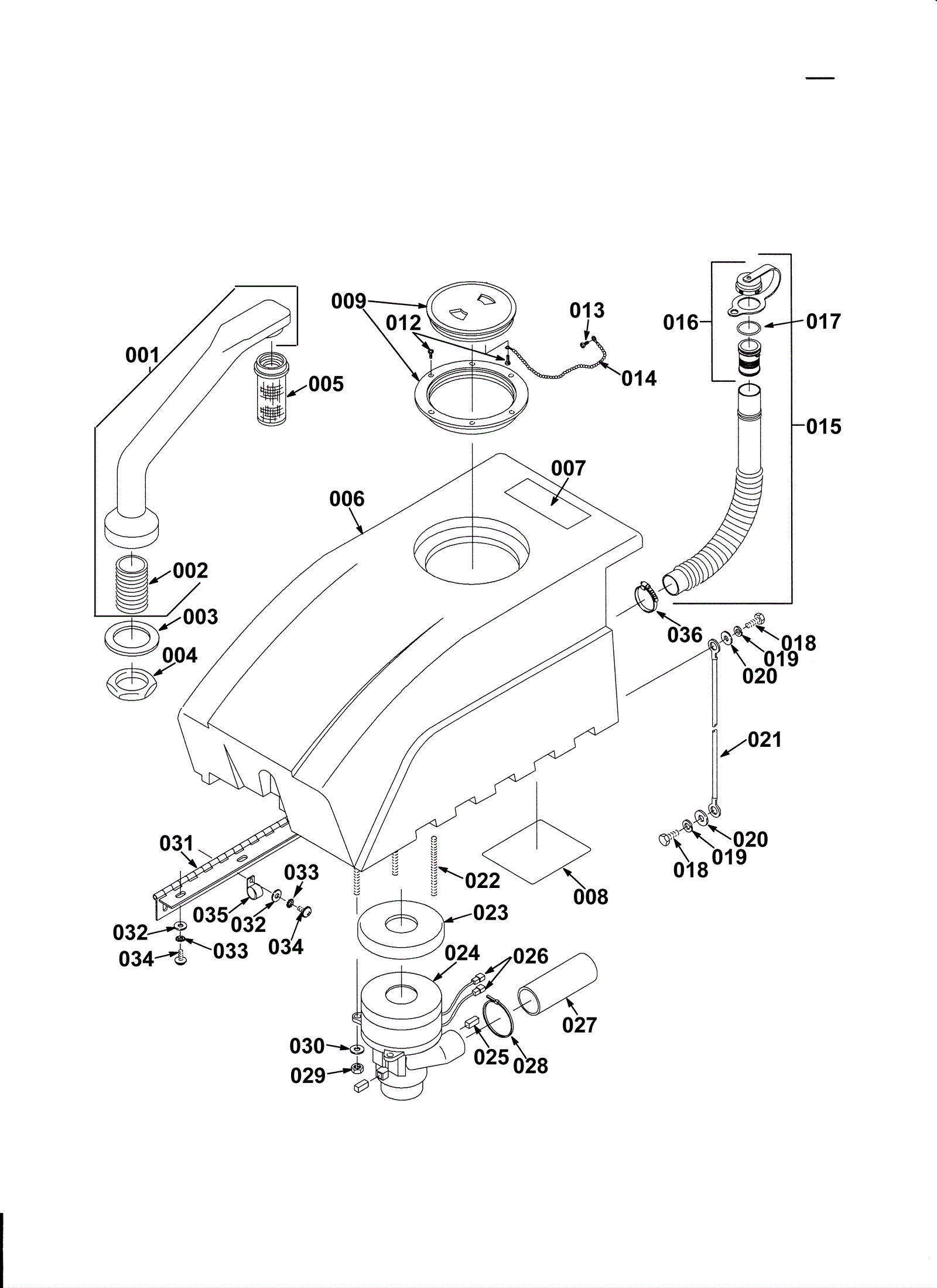

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
001 175-2998 Standpipe with nipple assembly 1 Includes 002
002 175-2639 1 1/2 inch nipple fitting 1
003 175-2640 Gasket 1
004 175-2907 Nut 1 1/2 flanged hex 1
005a 675-9887 Shut-off float 1 (OEM)
005b 991-5136 Shut-off float 1 (NON-OEM)
006 175-6643 Teal recovery tank assembly (OBSOLETE) 1 Includes 007-008
007 175-2868 Warning decal 1
008 175-6644 Battery recharging decal 1
009a 164-0202 Tank lid assembly 1 Includes 009b-009c
009b 164-0205 Tank lid ring (clear) 1 Can be purchased without assembly
009c 164-0044 Tank lid (clear) 1 Can be purchased without assembly
009d 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
012 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 7
013 999-0434 Screw 6 x 3/8 pan head phillips 1
014 164-0204 Recovery tank lid chain 1
015a 175-1153 Drain hose assembly 1 Includes 016 and 017 (OEM)
015b 991-5126 Drain hose assembly (NON-OEM)
016a 175-4214 Drain plug assembly 1
016b 991-3028 Drain plug assembly 1
017 175-5804 O-ring 1
018 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
019 999-0632 Washer 1/4 split lock stainless steel 2
020 999-0016 Washer 1/4 flat plain finish 2
021 175-2651 Support cable 1
022 175-6645 Stud 1/4-20 x 4 3
023 175-6085 Gasket 1
024 991-1203 24V 2 stage vacuum motor tangential 1 Includes 025
025 175-2658 Carbon brush (pkg of 2) 1
026 175-0142 1/4 inch male terminal 2
027 175-2979 Vacuum exhaust muffler 1
028 175-0921 Wire tie 1
029 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
030 999-0016 Washer 1/4 flat plain finish 3
031 175-4221 Tank hinge 1
032 999-0016 Washer 1/4 flat plain finish 9
033 999-1024 Washer 1/4 external tooth lock stainless steel 9
034 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 9
035 175-2667 P clamp 1
036 175-2057 Hose clamp 1
