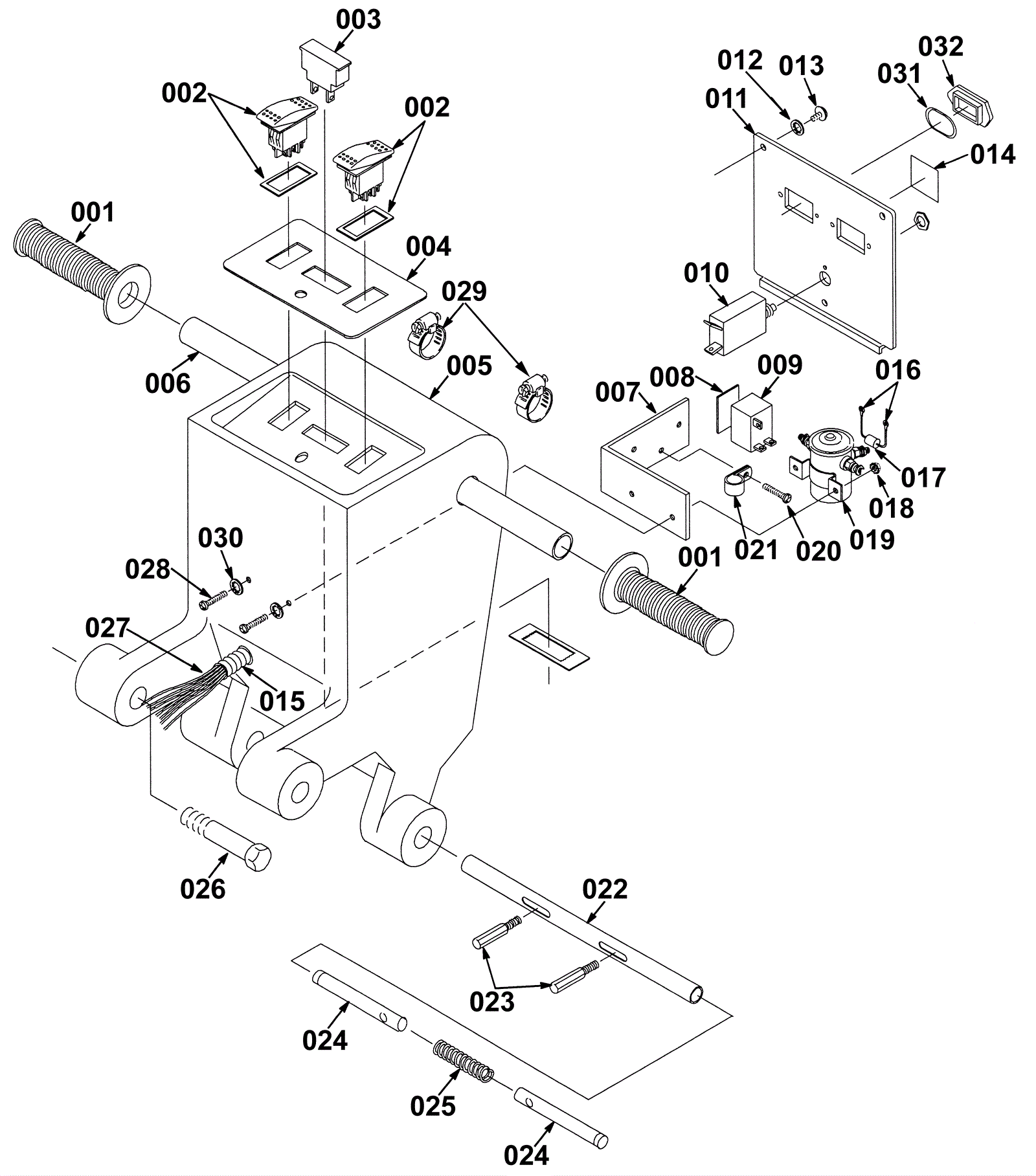

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
675-9894
|
Handle grip |
2 |
|
|
001b |
991-8571
|
Handle grip |
2 |
|
|
002 |
175-1008
|
Rocker switch |
2 |
|
|
003 |
175-2691
|
Battery voltage meter |
1 |
|
|
004 |
175-0980
|
Dash decal (2001B) |
1 |
|
|
005 |
175-6646
|
Teal control console |
1 |
|
|
006 |
175-1012
|
Tube handle |
1 |
|
|
007 |
175-0987
|
Electrical mount bracket |
1 |
|
|
008 |
175-0287
|
Acrylic foam tape 1 inch x 1 foot |
1 |
|
|
009 |
175-2756
|
24V flasher |
1 |
|
|
010 |
175-2762
|
35amp circuit breaker |
1 |
|
|
011 |
175-0990
|
Control console cover |
1 |
|
|
012 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
013 |
999-0999
|
Screw 10-24 x 3/8 truss head phillips stainless steel |
2 |
|
|
014 |
175-2649
|
Do not spray decal |
1 |
|
|
015 |
175-1167
|
Sheathing |
1 |
|
|
016 |
175-0924
|
#10 ring terminal |
2 |
|
|
017 |
175-2757
|
Diode with ring terminals (small) |
1 |
|
|
018 |
999-0356
|
Nut 10-24 lock stainless steel |
2 |
|
|
019 |
175-2023
|
24V solenoid contactor |
1 |
|
|
020 |
999-1028
|
Screw 10-24 x 3/4 truss head phillips stainless steel |
1 |
|
|
021 |
175-0988
|
P clamp |
1 |
|
|
022 |
175-3108
|
Handle adjustment tube |
1 |
|
|
023 |
175-2710
|
Handle adjustment pin |
2 |
|
|
024 |
175-3109
|
Handle locking pin |
2 |
|
|
025 |
175-2712
|
Spring |
1 |
|
|
026 |
175-0981
|
Bolt 5/8 x 2 shoulder |
2 |
|
|
027 |
175-0985
|
24V Battery wire harness assembly |
1 |
|
|
028 |
999-1028
|
Screw 10-24 x 3/4 truss head phillips stainless steel |
2 |
|
|
029 |
997-2007
|
Hose clamp |
2 |
|
|
030 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
031 |
175-3144
|
O-ring |
2 |
|
|
032 |
175-3646
|
Hour meter plug |
2 |
|
|
